Haas VF-4 User Manual

96-8000 175
G CODES
June 1999

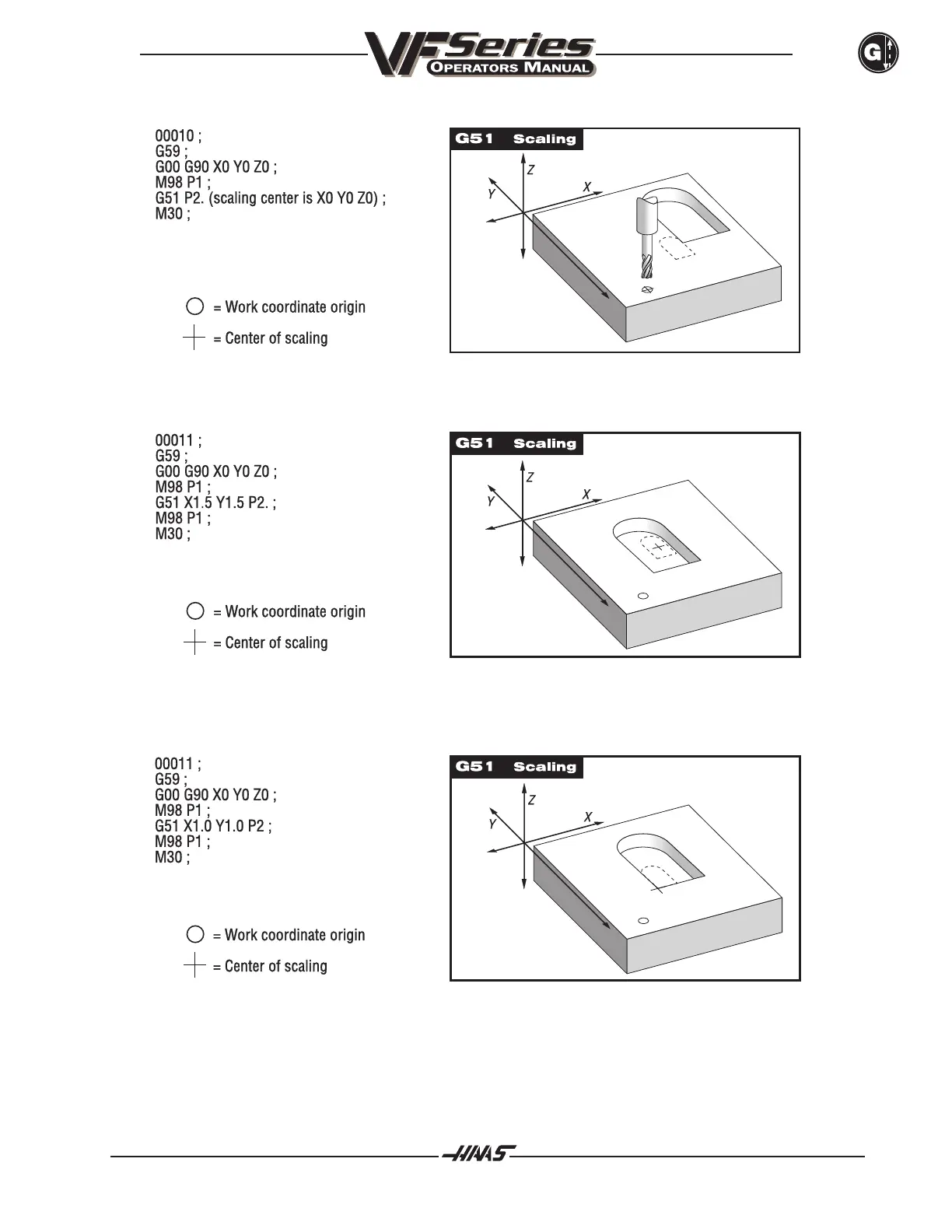

The next example specifies the center of the window as the scaling center.
The last example illustrates how scaling can be placed at the edge of tool paths as if the part was being set
against locating pins.
If macros are enabled, G65 arguments are not affected. Tool offsets and cutter compensation values are not
affected by scaling.
The stored program is not changed by G51, so that program lines displayed by the control will not reflect actual
machine positions. Position displays WILL reflect the proper scaled values.

Haas VF-4 Specifications

General

Category	CNC Vertical Machining Center
Z Axis Travel	25 in (635 mm)
Spindle Power	30 hp (22.4 kW)
Spindle Taper	BT-40
Spindle Motor	Vector drive AC motor
