Haas VF-4 - Page 68

68
INSTALLATION
June 1999
96-8000
1. Install the lifting brackets with (2) 1/2" -13 SHCS and (2) 1/2" hard washers, [(2) washers under
bracket and (1) above bracket], to the base as shown in Figure 2-1. Tighten Securely.

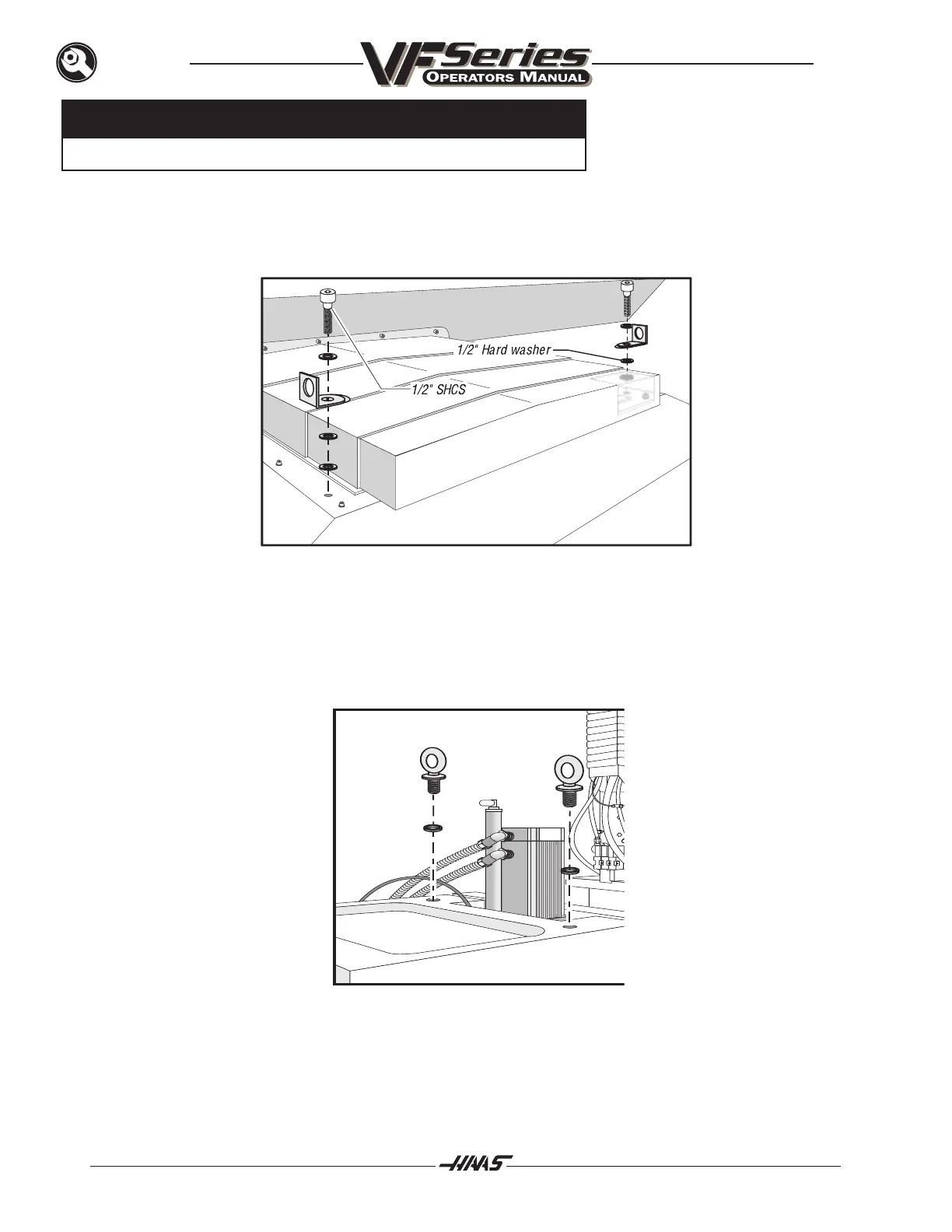

Fig. 2-1 Lifting bracket mounting location for VF-5.
2. Install (2) 5/8 x 1 x 1
1
/
16
" eyebolts and (2) 3/4" hard washers to the column as shown in Figure 2-
2. Tighten securely.
Fig. 2-2 VF-5 eyebolt locations on top of column.
SECTION 2: INSTALLING THE LIFT KIT
VF-5 40 / 50 TAPER
