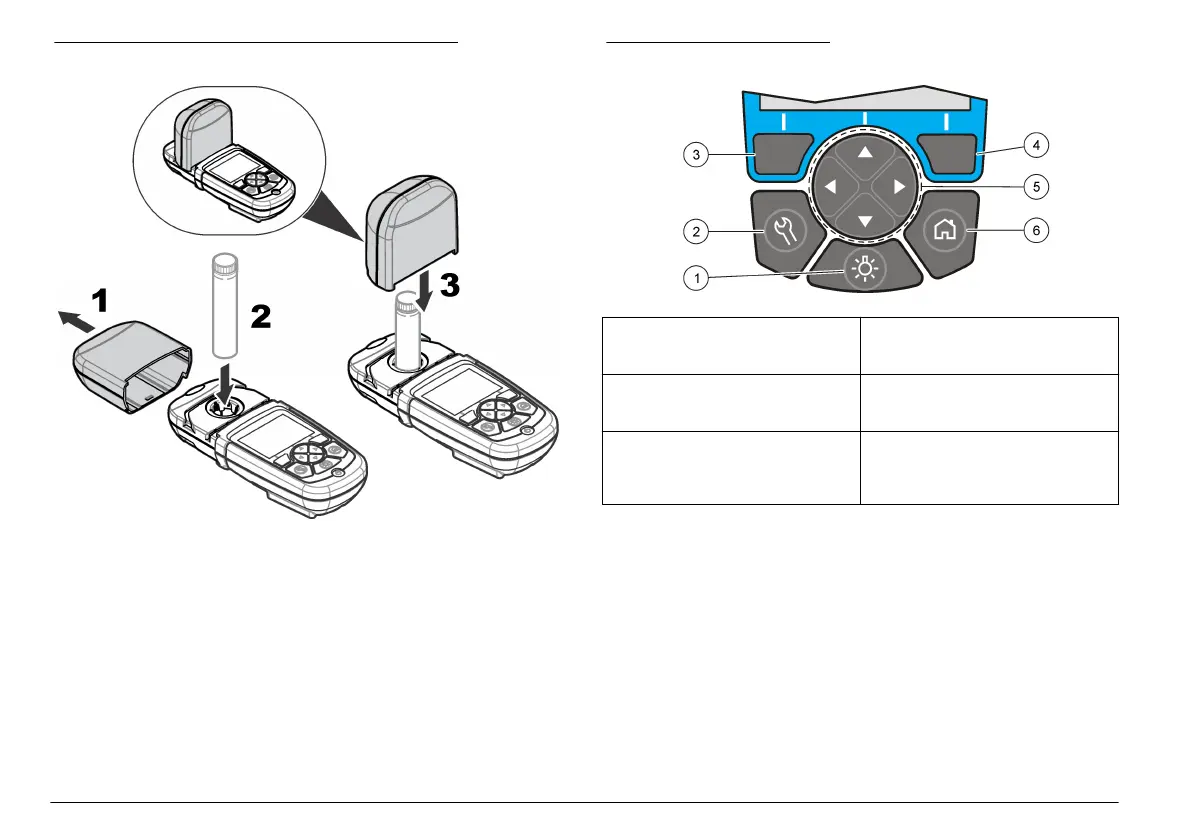

Figure 5 Sample cell and instrument cap installation
User interface and navigation
Keypad description
Refer to Figure 6 for the keypad description and navigation information.
Figure 6 Keypad description
1 BACKLIGHT: set the display
illumination to on or off
4 RIGHT selection key (contextual):
read sample, selects or confirms
options, opens sub-menus
2 SETTINGS: setup options
1
5 Navigation keys UP, DOWN,
RIGHT, LEFT: scroll through
menus, enter numbers and letters
2
3 LEFT selection key (contextual):
access for options, cancels or exits
the current menu screen to the
previous one
6 HOME/Options: go to the main
reading screen
1
, select program,
data management
1
While in an edit mode, the key does not operate.
2
When an UP or DOWN key is held, it scrolls fast. When a LEFT or RIGHT key
is pushed, it scrolls by page.
Display description
The reading screen shows the selected mode, unit, date and time,
operator ID and sample ID. Refer to Figure 7.
8 English
