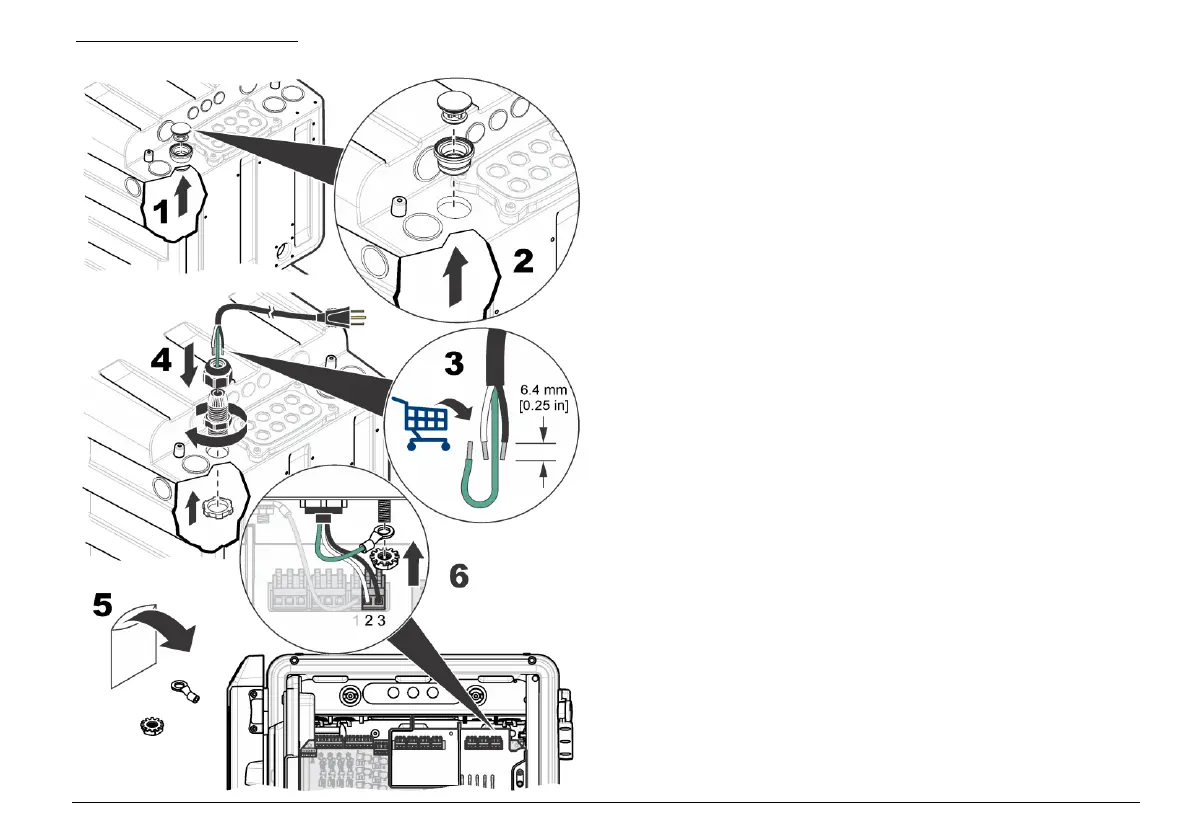

Figure 13 Power connection
Connect a dual monitor
An external sc controller can connect to the analyzer. Connect a Hach
cable 6789400 to the external sc controller and the dual monitor
connection of the analyzer. Refer to Wiring connections overview
on page 13.
Connect optional devices
Install the cables for output or input devices as shown in Figure 14.
Make sure to use the wire gauge that is specified for the connection.
Refer to Specifications on page 3. To configure a device, refer to the
operations manual.
