1 Not used
5 Sample 2 bypass
drain
9 Sample 1 inlet
2 Sample 4 bypass
drain
6 Sample 1 bypass
drain
10 Sample 2 inlet
3 Sample 3 bypass
drain
7 Chemical drain
11 Sample 3 inlet
4 Air purge inlet
(optional)
8 Case drain for spills
or leaks
12 Sample 4 inlet

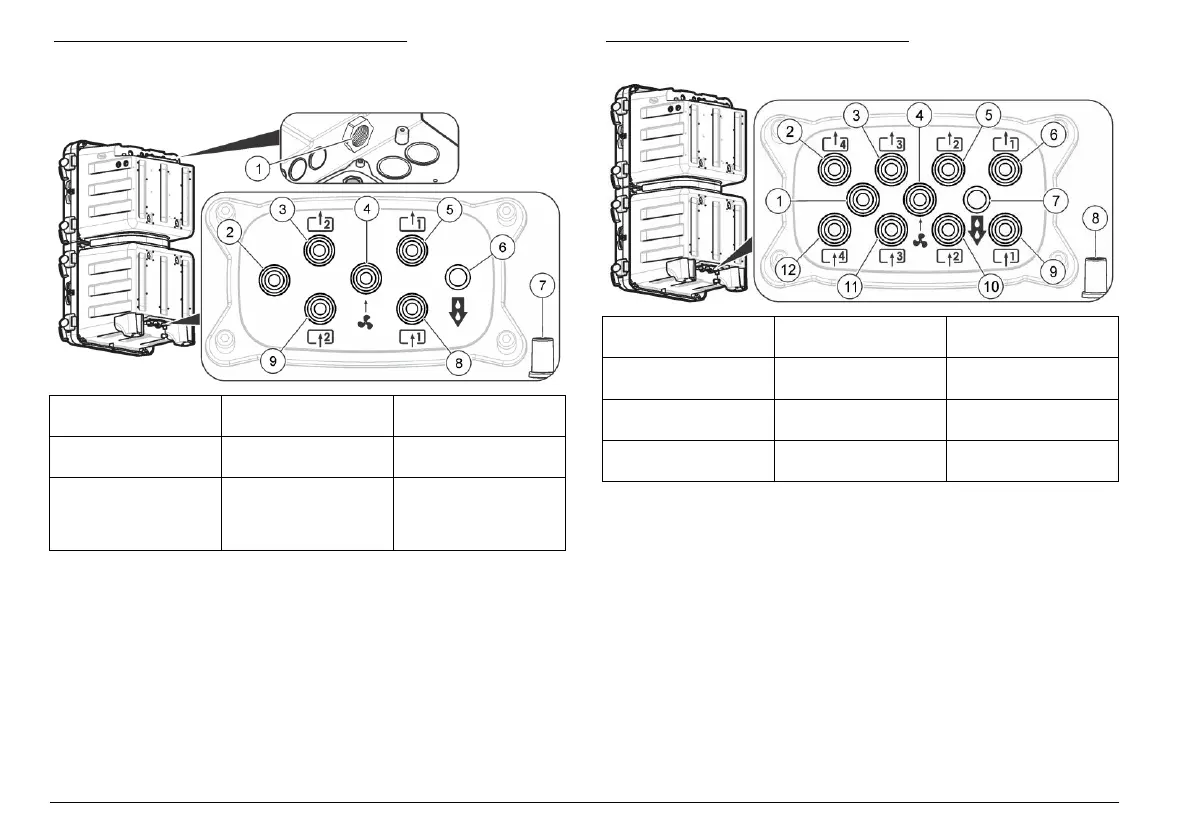

Figure 3 Ports for one or two sample streams
Figure 4 Ports for four sample streams
1 Drain vent-keep open
4 Air purge inlet
(optional)
7 Case drain for spills
or leaks
2 Not used
5 Sample 1 bypass
drain
8 Sample 1 inlet
3 Two sample stream
analyzers only:
Sample 2 bypass
drain
6 Chemical drain
9 Two sample stream
analyzers only:
Sample 2 inlet
