2 mm
14
15 2x
15 2x
14
14
CZ: k dílu 14 - držák serva kormidla pøilepte podložky 15. Držák s podložkami pøilepte k palubì z vnitøní strany, jak patrno z obrázkù - detail F
D: An den Ruderservohalter (Teil 14) die beiden Verstärkungen (Teile 15) von oben aufkleben. Dann den Ruderservohalter auf der Unterseite des Decks wie abgebildet
einkleben. Beachten Sie die Maßangaben (Detail F).

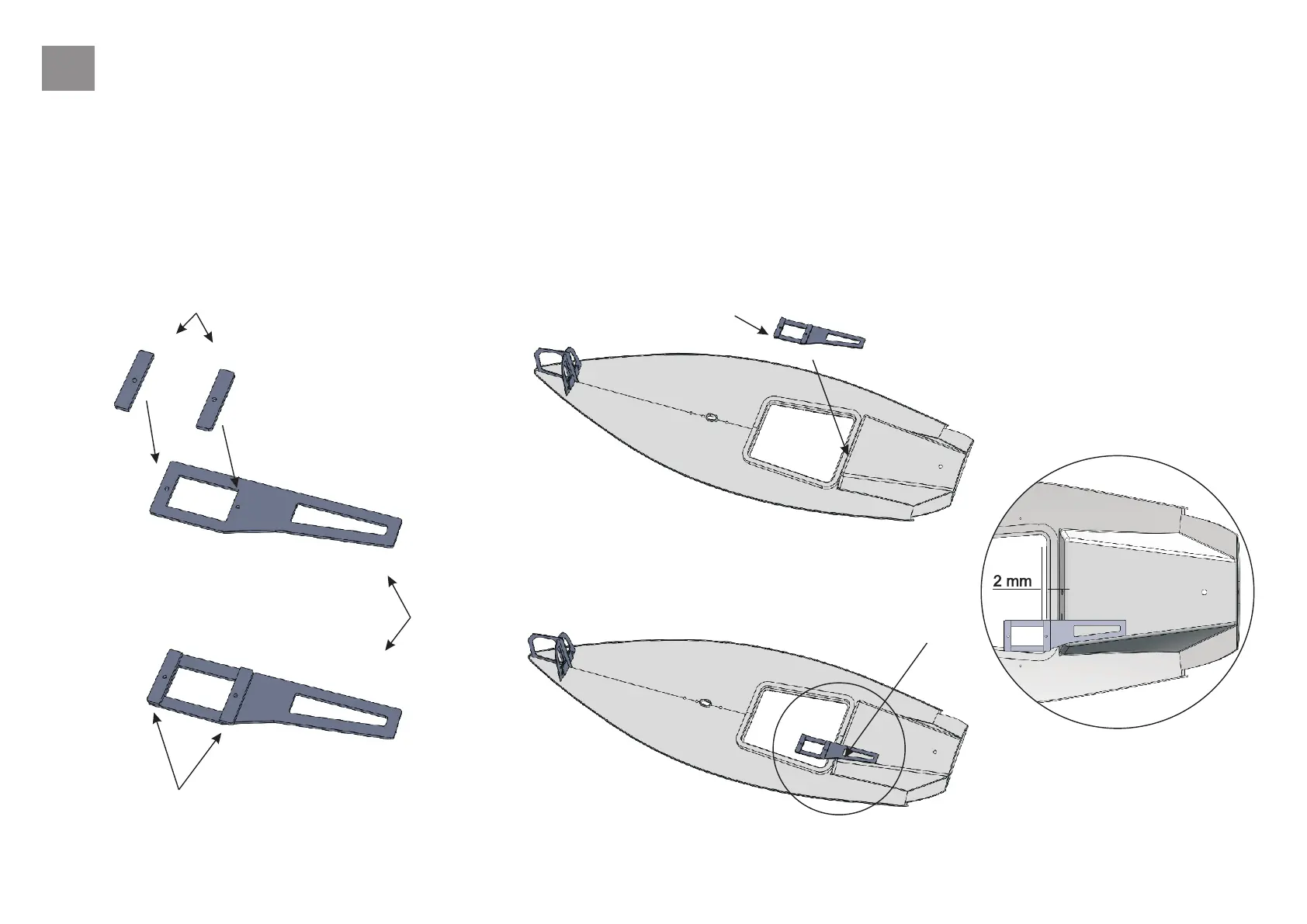

Eng: Glue the two reinforcements (part 15) to the rudder servo holder (part 14) from above. Then glue the rudder servo holder to the underside of the deck as shown in
the illustration. Observe the dimensions (Detail F).
FR: Collez les deux piéces de renforcement (piéce 15) sur le support du servo du safran (piéce 14) comme indiqué dans le dessin. Ensuite, collez le support du servo du
safran sur la face inférieure du pont comme indiqué. Respectez la position exacte (Détail F).
ESP: Pegue las dos piezas de refuerzo (pieza 15) al soporte del servo del timón (pieza 14) como indicado en el dibujo acotado. Luego pegue el soporte del servo del
timón a la parte inferior de la cubierta como se muestra. Observe la posición exacta (Detalle F).
12
Detail F
Détail F
Detalle F
Detail F
Détail F
Detalle F
