Hadeco Smartdop XT6 - Main Features & Controls

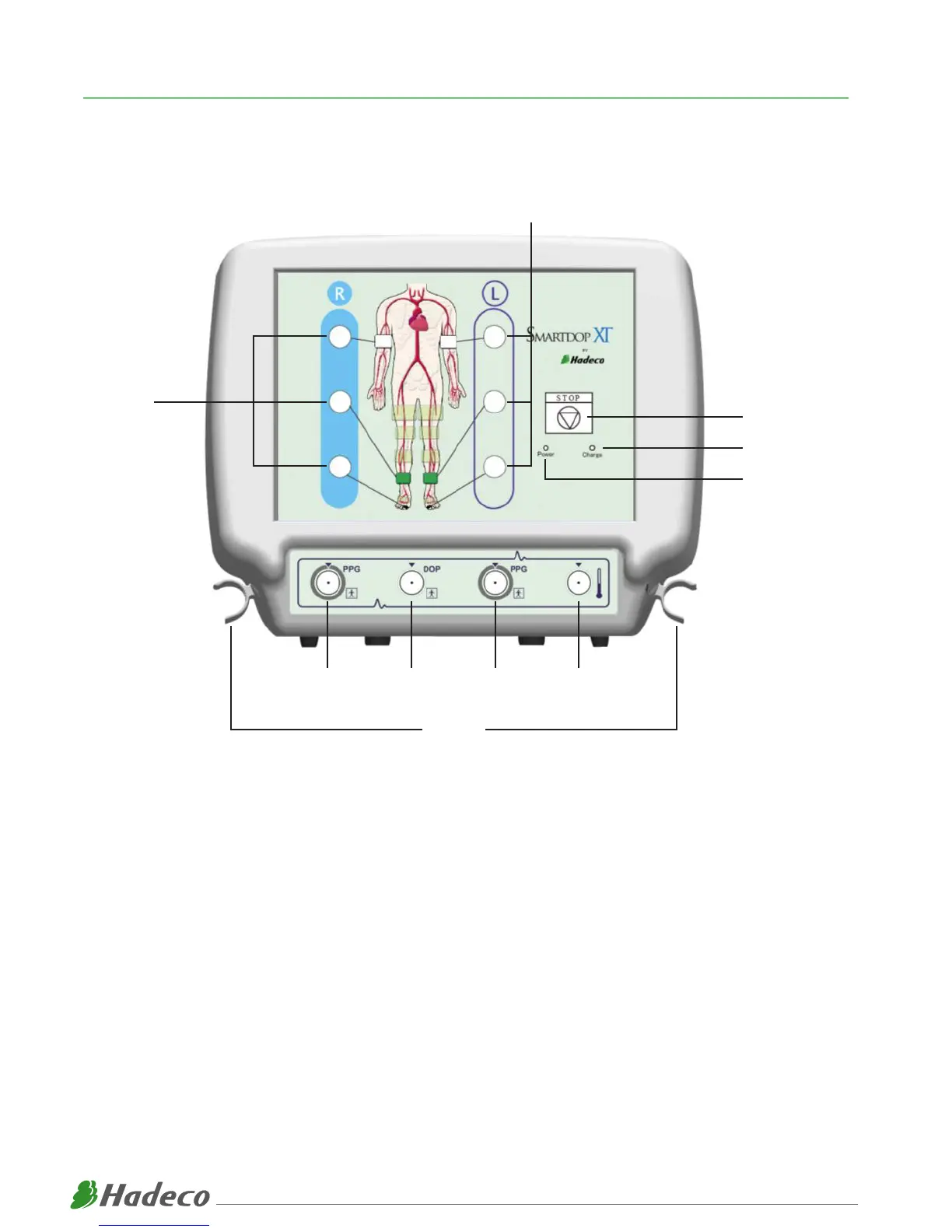

MAIN FEATURES & CONTROLS
For a more detailed explanation on the Features and Controls for the Smartdop XT6, please refer to the
Manufacturers Operating Manual supplied with the device.
1. Inflation ports for Right side To connect extender tubes for Right side cuffs
2. Inflation ports for Left side To connect extender tubes for Left side cuffs
3. PPG Probe connector for Right side To connect PPG Probe for Right toe
4. 8 MHz Probe connector To connect 8 MHz Probe
5. PPG Probe connector for Left side To connect PPG Probe for Left toe
6. Foot Temperature Probe connector To connect Temperature Probe (optional extra)
7. Stop Button To stop testing and dump all cuffs immediately while in measurement
8. Charge Indicator Indicates battery charging status
9. Power Indicator Indicates Power Status and Battery Level
10. Probe Holders To hold Probes when not in use
1.
2.
3. 4. 5. 6.
7.
8.
9.
10.
4
