Haes Esento Eclipse ECL-2 - General Conventional Wiriing Schematic

Eclipse Installation, Commissioning & Operating Manual Approved Document Ref: UI-ECL-01 Issue 8.0
10
DESIGN CONSIDERATIONS

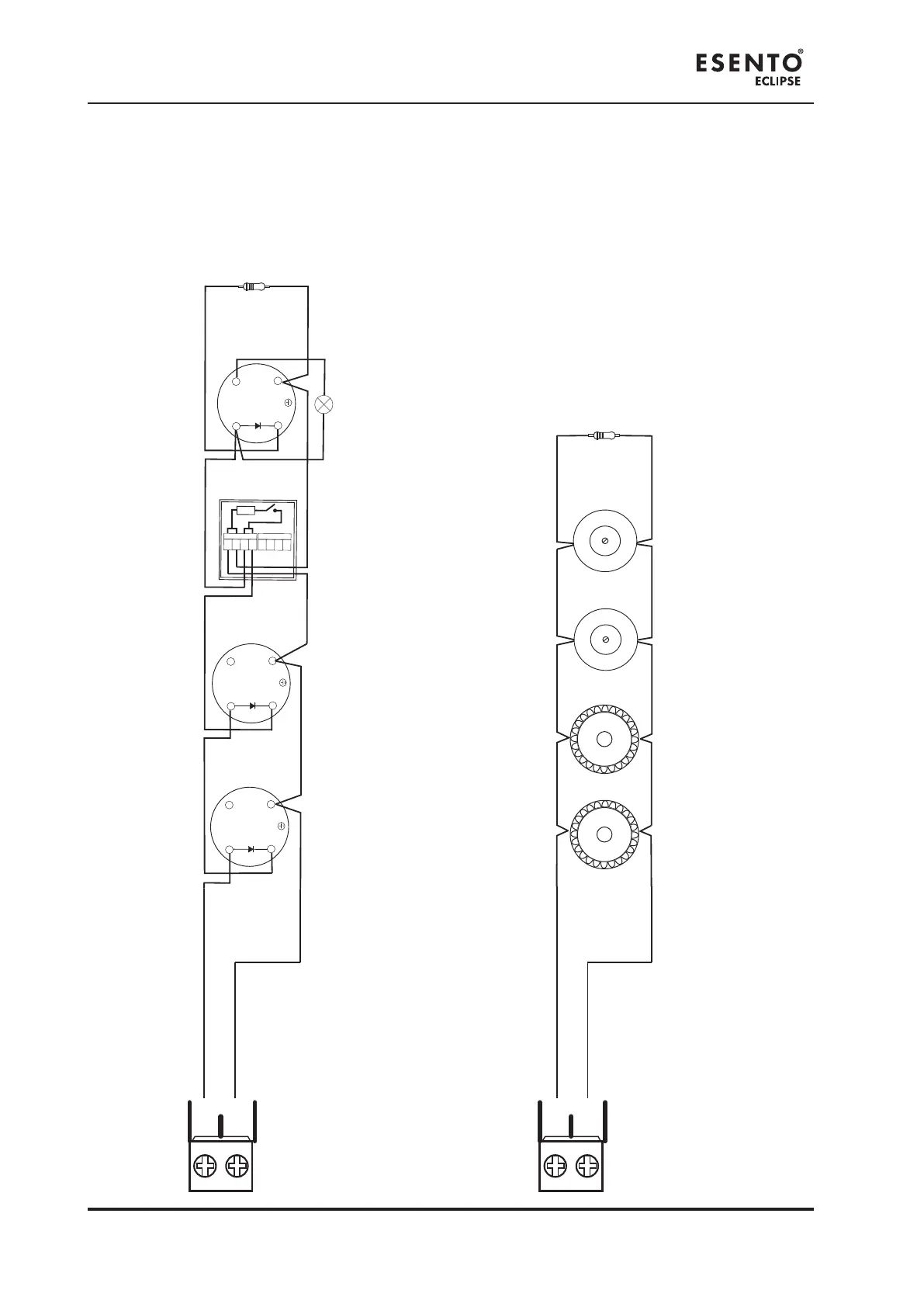

GENERAL CONVENTIONAL SYSTEM SCHEMATIC
REMOTE INDICATOR
RIL58
+
_
Typical Conventional
Detection Circuit Wiring
Typical Conventional Sounder
Circuit Wiring
4K7 OHM
END OF LINE
RESISTOR
4K7 OHM
END OF LINE
RESISTOR
-
+
ZONE 1
-
+
SNDR1
-
R
L1
L1
L2
IN
OUT
-
R
L1
L1
L2
IN
OUT
-
R
L1
L1
L2
IN
OUT
APOLLO S65 BASE
45681-201
APOLLO S65 BASE
45681-201
APOLLO S65 BASE
45681-201
MANUAL CALL POINT
MCP1A-R-470
1
2
3
4
_
_
+ +
470
MOTORISED BELL
POLARISED
MOTORISED BELL
POLARISED
ELECTRONIC SOUNDER
POLARISED
ELECTRONIC SOUNDER
POLARISED
+VE
+VE
+VE
+VE
-VE
-VE
-VE
-VE
