Haes Esento Eclipse ECL-2 - Power Supply Module

Eclipse Installation, Commissioning & Operating Manual Approved Document Ref: UI-ECL-01 Issue 8.0
7
ABOUT THIS PANEL
POWER SUPPLY MODULE
Power Supply Specication
Mains supply 230vac +10% / -15% 50Hz max current
1A
Mains supply fuse 2 Amp (T2A 250V) Not accessible for servicing. Internal to
switch mode power unit
Internal power supply rating 1.5 Amps total including battery charging Maximum load shared between outputs
= 0.9A
Power supply output voltage 19.92 - 30.09vdc Tolerance +/- 0.1%
Maximum continuous load for battery
standby (ImaxA)
ImaxA = 575mA ImaxB not specied
Minimum current drawn by panel
(example)
4 Zone
I min = 85mA
2 Zone
I min = 75mA
Maximum ripple 120 mV p-p Supply and charger fault monitored
Min/max battery size and type 2 x 3.2Ahr 12volt VRLA
Use Yuasa NP range batteries
Other equivalent batteries may be
used but have not been tested for the
purposes of EN54 approval.
Battery charging voltage 27.3 vdc nominal at 20 deg C Temperature compensated
Battery charging output current 1.5A PSU 630mA
Current limited 10 Ohms
Battery high impedance fault (Batt Hi Z) Resistance > 1 Ohm 1 hour reporting time
Max current drawn from batteries 1.5 Amps with main power source
disconnected. Battery fuse 3A LBC
20mm.

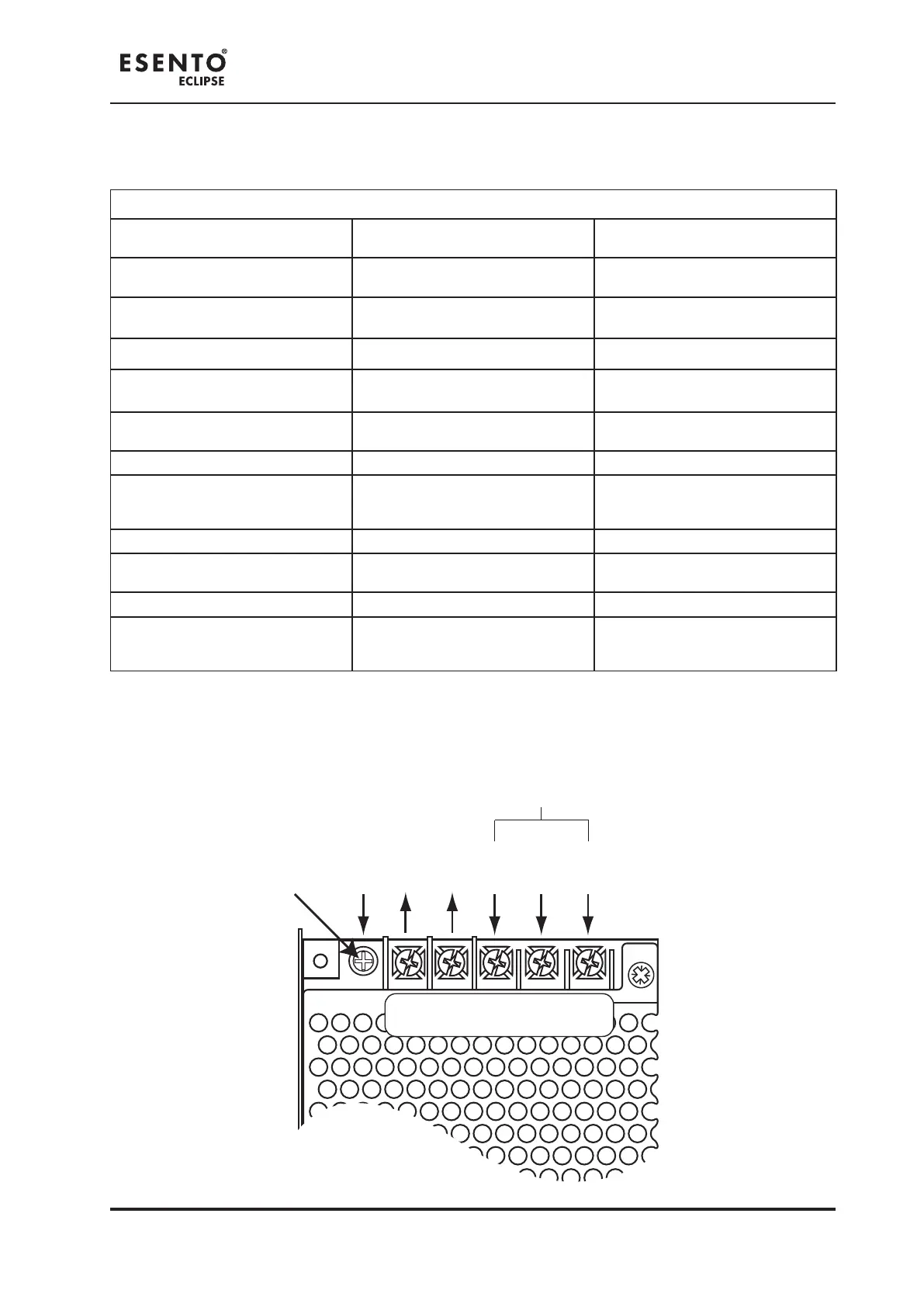

V+
V-
E
N
L
24v +ve output O/P Voltage adjust (default setting 27v4 at 20
o
C)
24v -ve output Earth Neutral Live
Mains input
Temperature compensation input from @ terminal on main PCB
