ABOUT THIS PANEL
CIRCUIT BOARDS

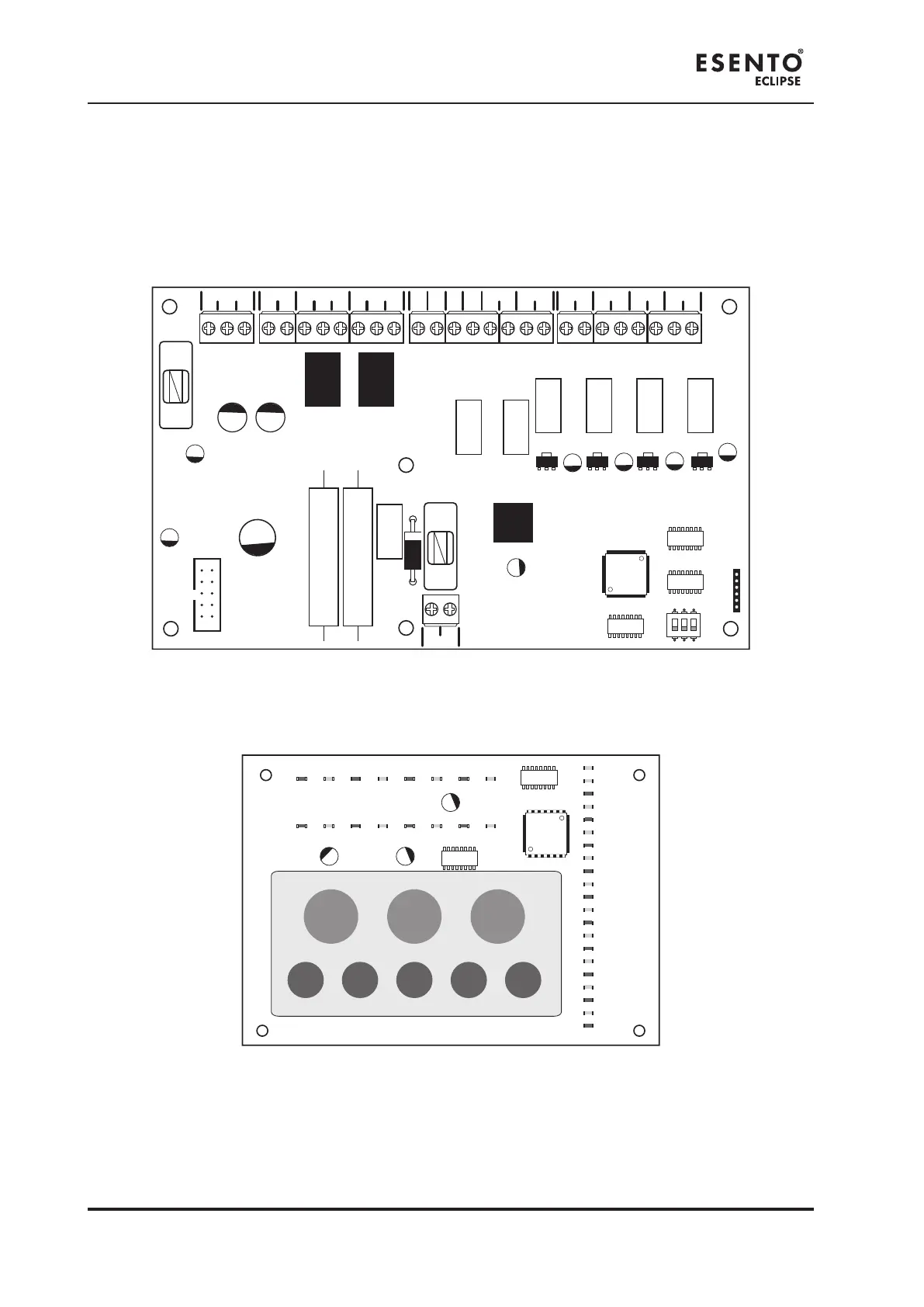

Eclipse panels comprise of two circuit boards
PSU
@ +
+
- - + -
+ -
+ - + - + - + - + -
28V 0V
C NC NO C NC NO
FIRE FAULT
FR
FLT
CC
PUL
-OP -OP -IP -IP
SNDR1 SNDR2 ZONE1 ZONE2 ZONE3 ZONE4
BATTERY
1 2 3
ON
1 2 3 4
ENTER
RESOUND SILENCE RESET
TPCA01-E2/E4 - 2 or 4 zone Master PCB
TPCA02 - LED Display & Controls PCB
