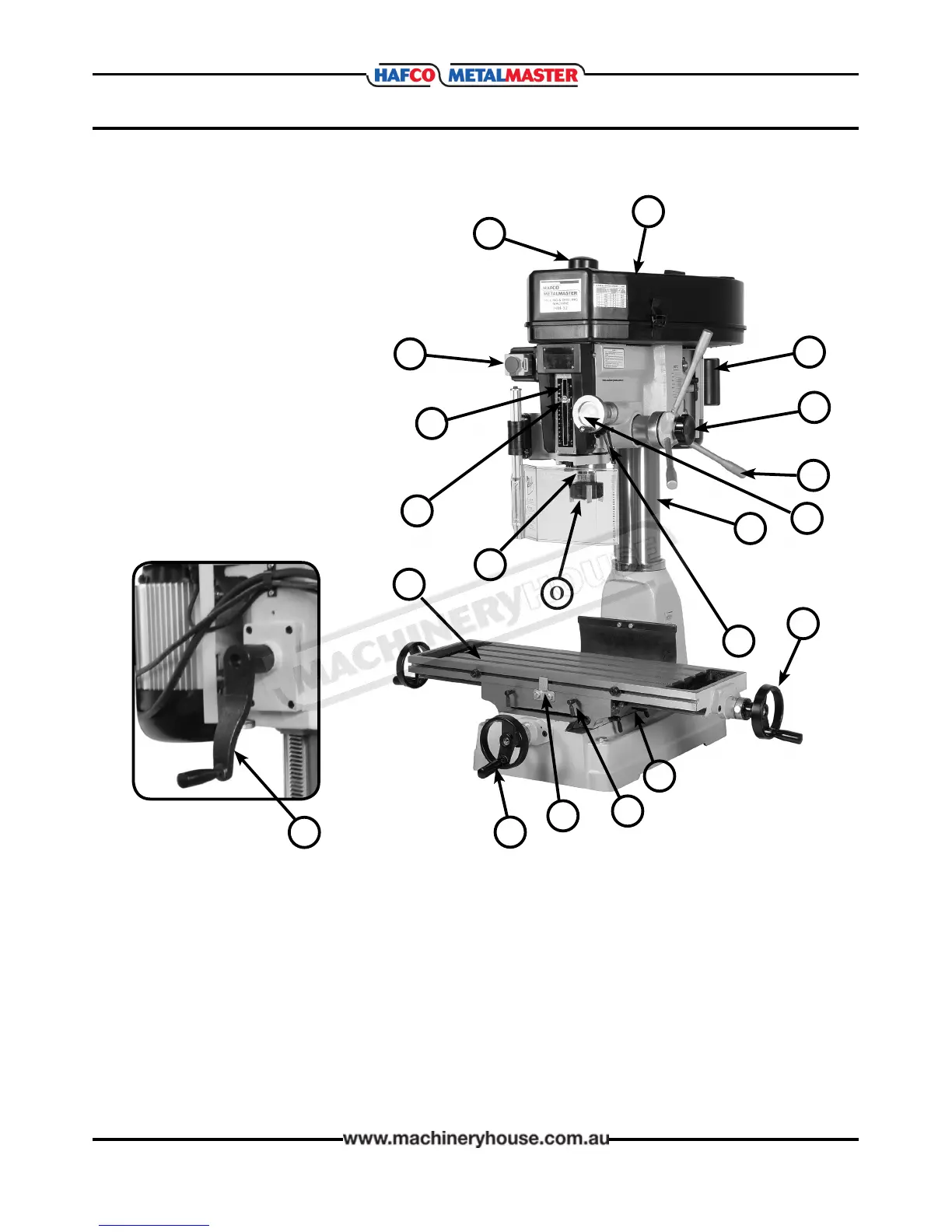

1.3 IDENTIFICATION
A. ON/OFF Buttons
B. Drawbar & Cap
C. Belt Cover
D. Motor
E. Fine Downfeed Lock Knob
F. Coarse Downfeed Lever
G. Fine Downfeed Handwheel
H. Column
I. Quill Lock Lever
J. Longitudinal Handwheel
K. Cross Travel Lock
L. Longitudinal Travel Lock
M. Table Stop
N. Cross Travel Handwheel
O. Face Mill
P. Spindle
Q. Depth Stop
R. Table
S. Depth Scale
T. Headstock Elevation Crank (Fig. 2)
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
R
Q
S
T
Fig. 1
Fig. 2
