"DALI Gateway C00Cx2" software
Functional description
Seite 35 von 130
The plug-in of the DALI Gateway also permits the printing of the entire device configuration including
the project design of the groups, the scene configuration and all DALI commissioning parameters in
form of a configuration report.
The print function can be found on the “Import / Export / Printing” parameter page of the plug-in.
After activating the “Print” button, the plug-in will ask whether you want to print the complete device
configuration or only part of the DALI commissioning parameters including the DALI group assignments
(cf. figure 11).

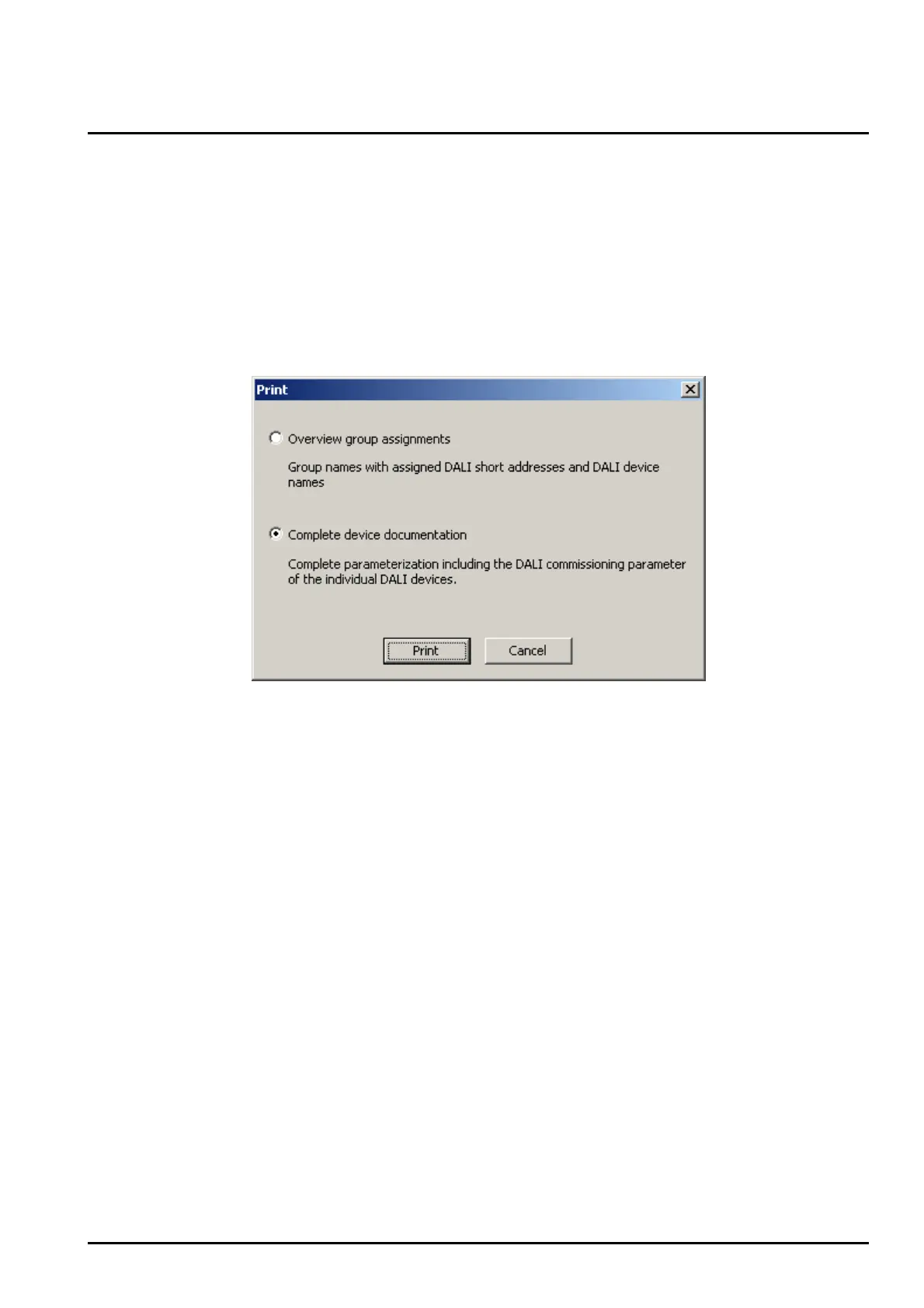

Figure 11: Print dialogue for selecting printing options
The project design of the DALI groups, the DALI commissioning and the DALI test are described in the
following chapters.
