"DALI Gateway C00Cx2" software
Functional description
Seite 69 von 130
Time delays
Up to two time functions can be independently set for each DALI group. The time functions act solely
on the "Switching" or "Switching central function" communication objects (if a central has been
activated for the affected output) and will delay the received object value as a function of telegram
polarity (cf. fig. 21).
Time functions
Object
"Switching"
additional function
Behaviour
- bus voltage failure
- bus voltage return
- ETS programming
*
Object
"Brightness value
feedback"
Blinking
*
Group
* = optional parameterization
Object
"Central function"
Polarity of
central object
*
Object
"staircase timer
function start/stop"
Object
"Extension unit"
Scene
control
recall
storing **
*
*
*
Staircase timer
function
(timing)
*
*
Object
"Brightness value"
Object
"Dimming"
automatic
shutoff function
Scene priority
lower
higher
Soft-ON / OFF
*
Dimming speed /
Dimming behaviour
*
Verzögerung nach
Busspannungswiederkehr
zyklisches Senden
Object
"Disable" / "Forced-control"
** = Basically, no new scene value will
be stored if a disable or forced-control
position is active!
Object
"Switching
feedback"
*
*

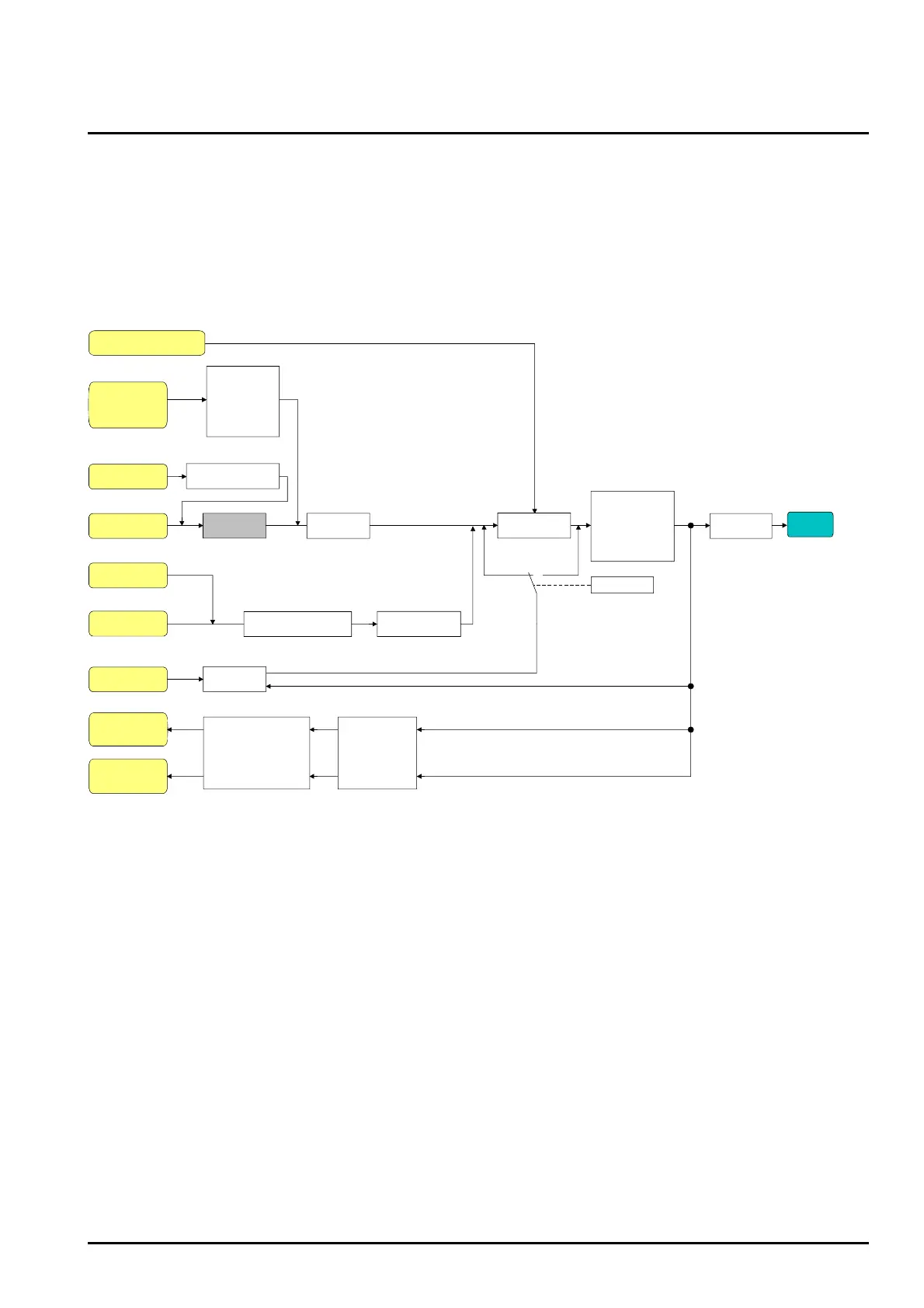

Fig.21: Functional diagram of the time delays
Activating an ON-delay
The On-delay can be parameterized separately for each group in the plug-in of the DALI Gateway.

Set the "Selection of time delay" parameter in the “Groups - [x] group name – Switch-on/switch-off
behaviour" parameter node to "ON-delay" or to "ON-delay and OFF-delay". Parameterize the desired
On-delay time.
The ON-delay is now enabled. The parameterized time will start after receiving an ON telegram via
the “Switching” object. A subsequent ON-telegram will retrigger the time only if the "ON-delay
retriggerable ?" parameter has been set to "Yes". An OFF-telegram received during the ON-delay will
terminate the delay and set the switching status to “OFF".
