hager
"DALI Gateway C00Cx2" software
Functional description
Seite 75 von 130
Defining the switch-on behaviour of the Staircase timer function
An ON-telegram to the "Staircase timer start / stop" object activates the staircase lighting time (T
ON
) the
duration of which is defined by the "Staircase lighting time" parameter. The DALI group switches to
switch-on brightness. At the end of the staircase lighting time, the DALI group switches off or optionally
activates the pre-warning time (T
prewarn
) of the pre-warning function (cf. Setting the pre-warning function
of the Staircase timer function"). Considering a pre-warning function, the Staircase timer function has
the switch-on behaviour as shown in Fig. 25.
"Staircase timer function
start/stop"
Telegram
Switch-on brightness
Switching status
feedback
ON
T
ON
T
Prewarn
Staircase lighting time retriggerable?
= no
ON
time
time
timeOFF
ON
T
ON
T
Prewarn
ONON
Staircase lighting time retriggerable
= yes
T
ON
ON
Prewarning brightness
<T
Prewarn
DALI group

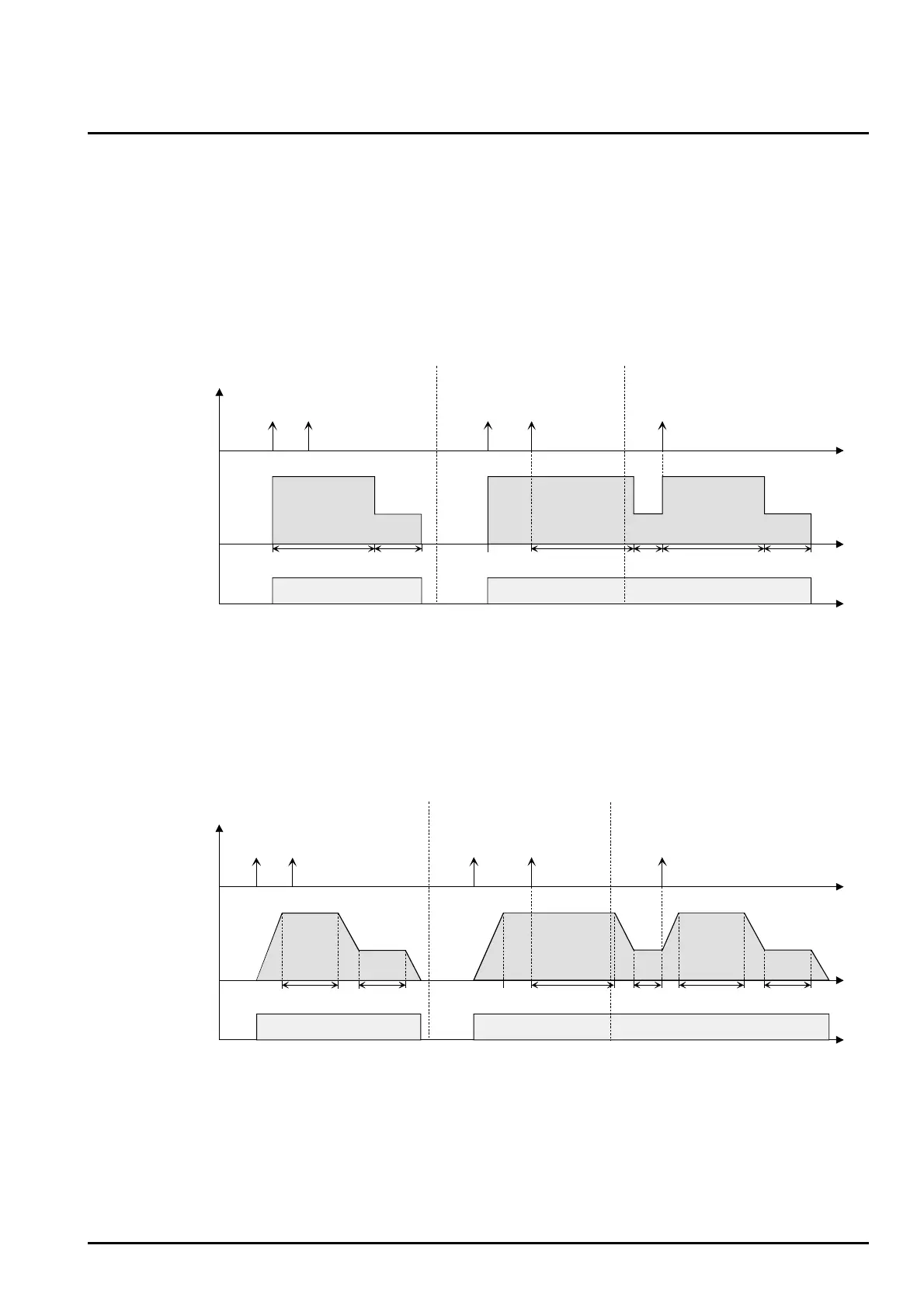

Fig. 25: Switch-on behaviour of the Staircase timer function without Soft functions
In addition, the switch-on can be influenced by the Soft functions of the DALI Gateway. With a possible
Soft-ON-delay and Soft-OFF delay function, the Staircase timer function has the switch-on behaviour
as shown in Fig. 26.
ON
time
time
time
ON ON
ON
ON
T
ON
T
Prewarn
T
ON
T
Prewarn
<T
Prewarn
Staircase lighting time retriggerable?
= no
Staircase lighting time retriggerable
= yes
"Staircase timer function
start/stop"
Telegram
Switch-on brightness
Switching status
feedback
ON
OFF
Prewarning brightness
DALI group
Fig. 26: Switch-on behaviour of the Staircase timer function with Soft functions
(for example: with minimum brightness = 0 %)
