Operation
Charging the electric vehicle
witty charging station
The LED display 1 is lit up green. The charging station is ready for operation.
The vehicle is unlocked using the central locking.
1
Hold the RFID card in front of the reader 2.
[4]
The LED display 1 flashes white a few times.
2
Plug the charging plug into the electric vehicle’s socket outlet.
3
Plug the charging plug into the charging station’s socket outlet.
The charging station and electric vehicle plugs lock automatically.
The charging operation starts. The LED display pulses green
[5].
The electric vehicle is being
charged.
The LED display turns green when the charging operation has been completed.
Ending the charging operation

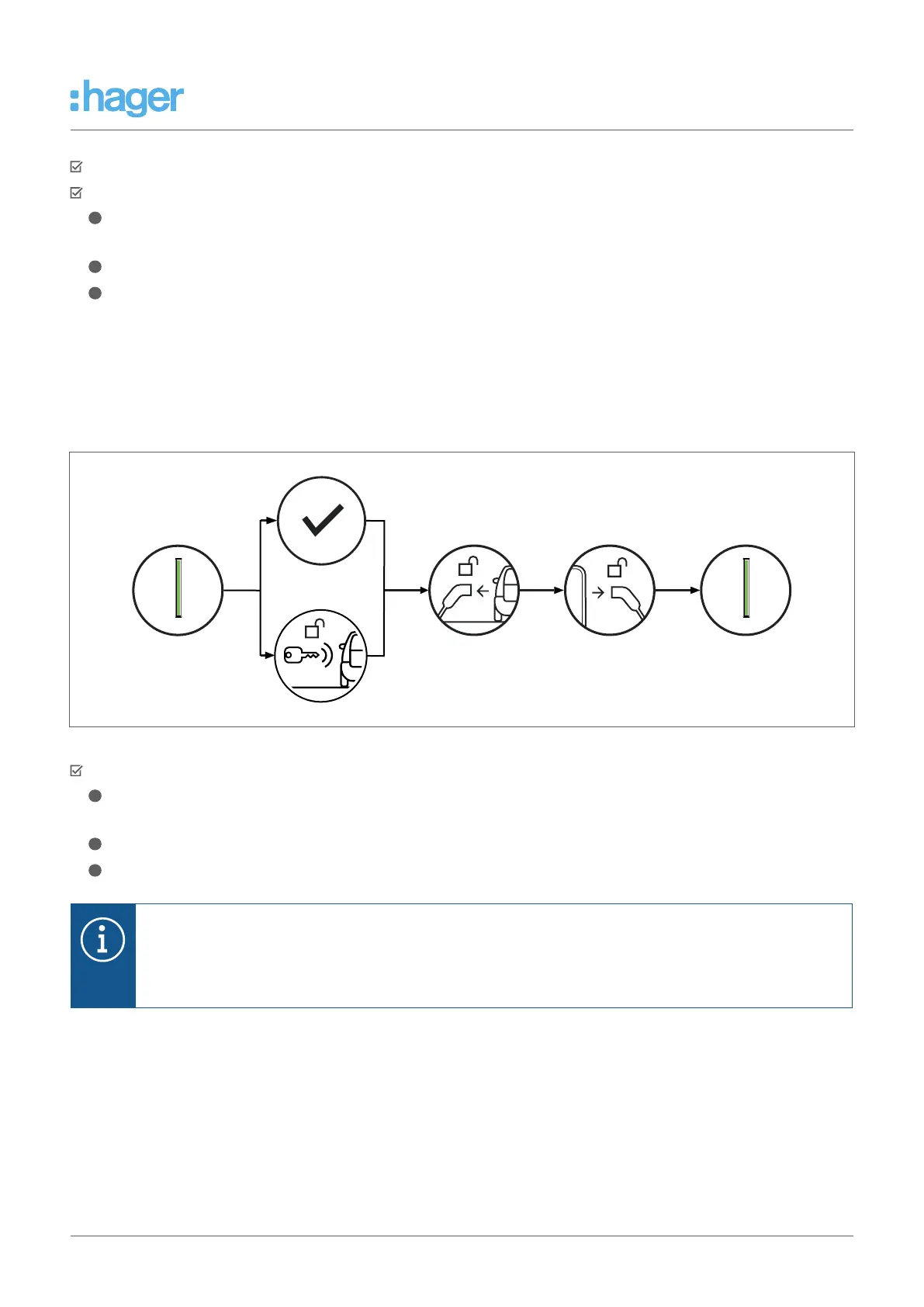

Fig. 3: Ending the charging operation
The LED display is green. The charging operation has been completed.
1
Unlock the electric vehicle using the central locking.
The charging socket on the vehicle is unlocked.
2
Pull the charging plug out of the electric vehicle’s socket outlet.
3
Pull the charging plug out of the charging station’s socket outlet and stow it away.
Information
In the event of a mains breakdown or a loss of voltage to the charging station, the
mechanical interlock of the charging plug in the charging station is automatically unlocked.
The plug can be pulled out of the charging socket.
[4]
In some variants of the charging station, the charging operation can also be started freely (without an RFID card
).
[5]
In some product variants or charging modes, the LED flashes blue.
