Ordering codes

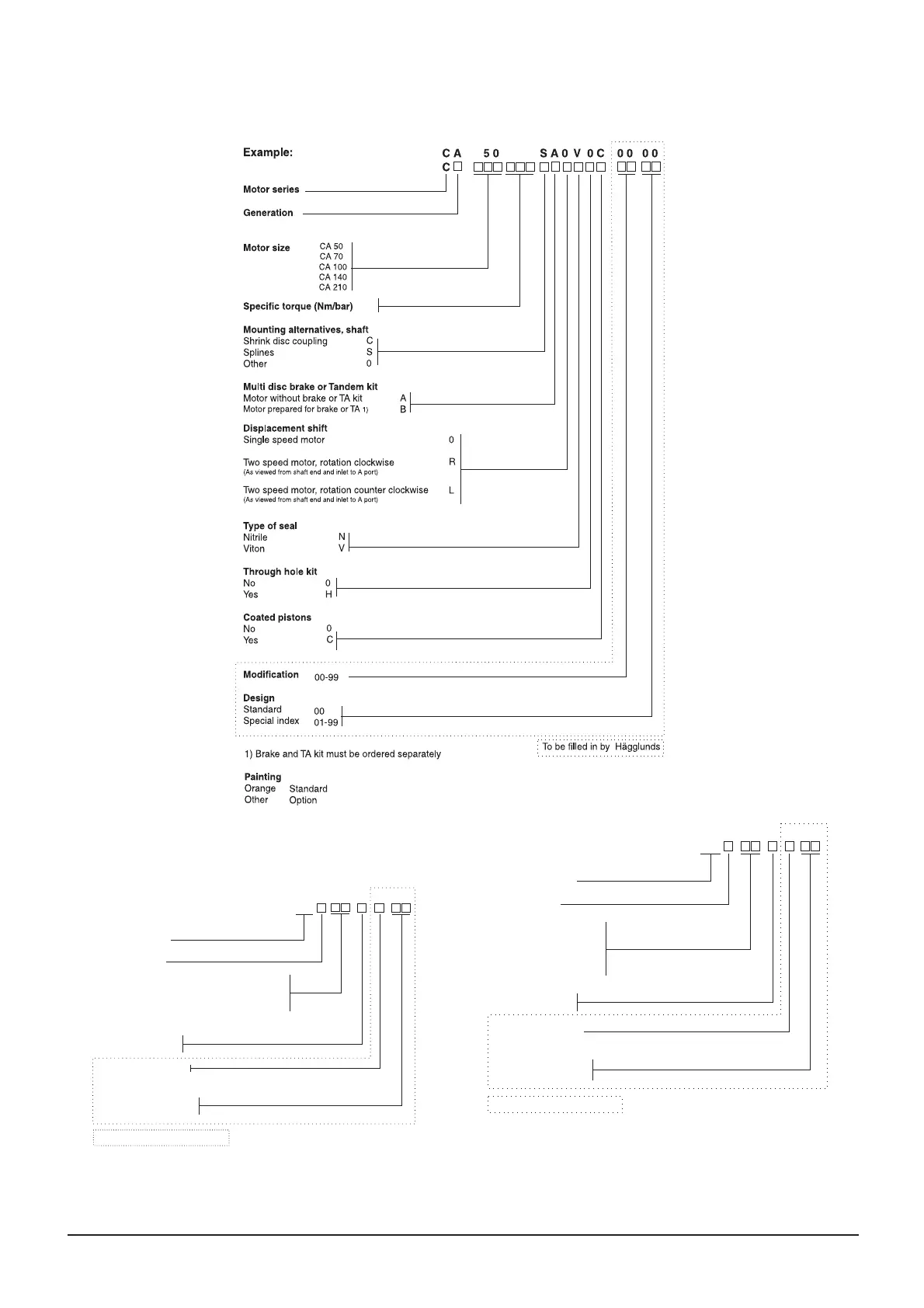

In order to identify Hägglunds equipment exactly, the following ordering code is used. These orde ring
codes should be stated in full in all correspondence e.g. when orde ring spare parts.
Compact motors
MDA05N100
MD
Multidisc brake
Generation
Brake size
Type of seal
Modification
Design
Nitrile
Viton
Standard
Special index
Example:
MDA 5
MDA 7
MDA 10
MDA 14*
MDA 21*
00
01-99
N
V
1-9
Brake must be ordered separately
To be filled in by Hägglunds
Painting
Orange
Other
Standard
Option
*MDA 14 and MDA 21, designed for separate mounting on the driven shaft.
MDA 14 can be mounted directly to the motor via Tandem kit 21, this is not
possible with MDA 21.
Torque arm
Torque arm
Generation
Torque arm
size
Attachment
Modification
Design
Pivoted
Other
Standard
Special index
Example:
TCA 5 (for CA 50)
TCA 7 (for CA 70)
TCA 10 (for CA 100)
TCA 14* (for CA 140/210)
00
01-99
2
9
0-9
To be filled in by Hägglunds
T C A 5 - 0 - 0 - 0 0
T C
-
-
-
*Also for CA 210
Note: Torque arm incl. Pivot attachment.
TCA 5/7 - bolts supplied with motor.
TCA 10/14 - bolts & washers supplied with torque arm.
Multi Disc Brake (MDA)
