Hägglunds Compact Series User Manual

19

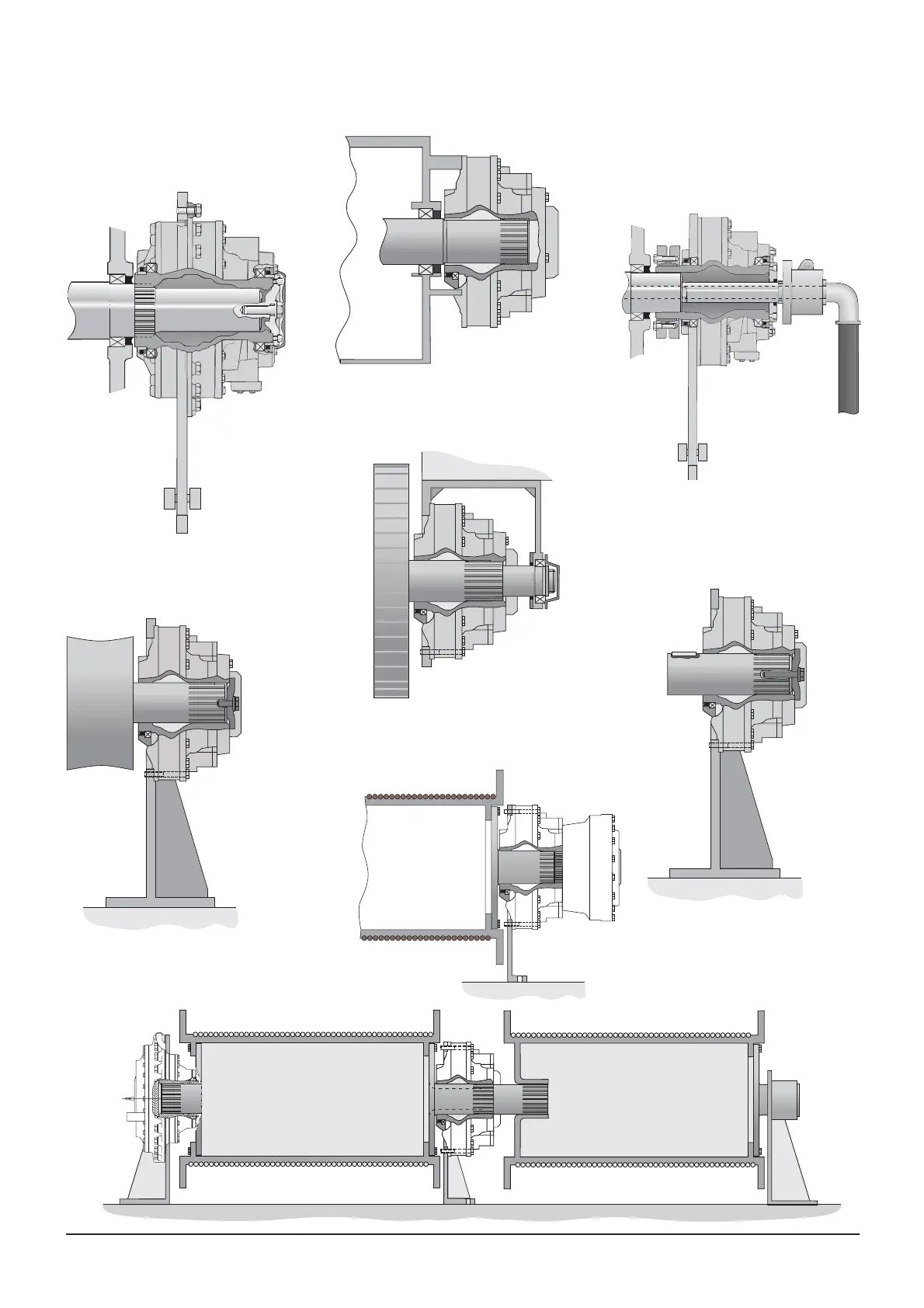

Examples of installations
Fig. 23 Flange mounted
motor with splines
Fig. 27 Bracket mounted motor
with stub shaft.
Fig. 24 Motor with through
hole for cooling of
driven machine.
Fig. 28 Direct mounted winch
drum drive with brake.
Fig. 26 Bracket mounted
capstan drive.
Fig. 22 Torque arm mounted
motor with splines.
Fig. 25 Flange mounted motor
with through shaft for high
radial load.
Fig. 28a Direct mounted double winch
drum drive with brake.
