- 9 -
Service Manual
Model No.: 32E2000
3-2-1 Function Description
Process signal which incept from exterior equipment then translate into signal that panel
can display.

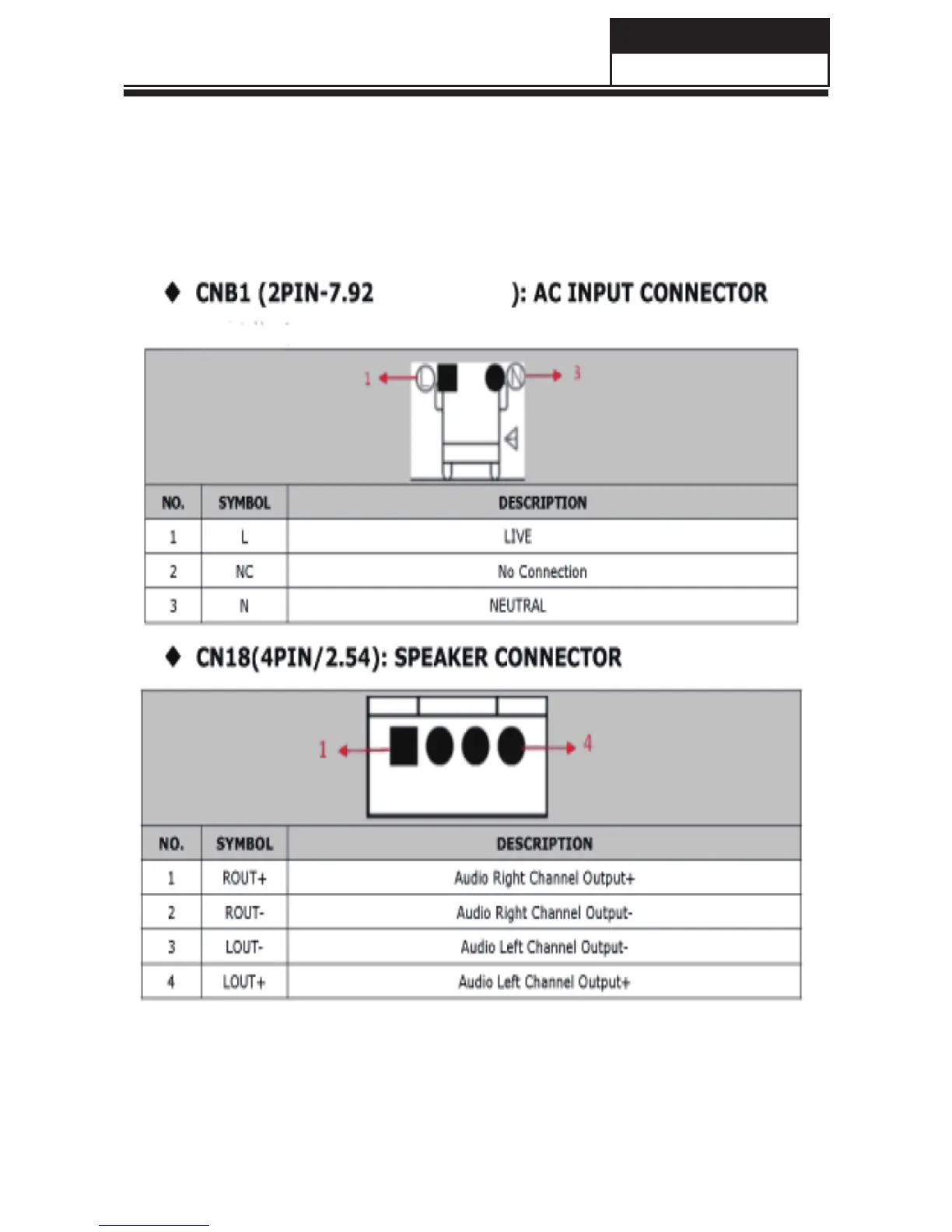

3-2-2 Connector Definition
