Haier 32E2000 Service Manual

Service Manual
Model No.: 32E2000
- 22 -

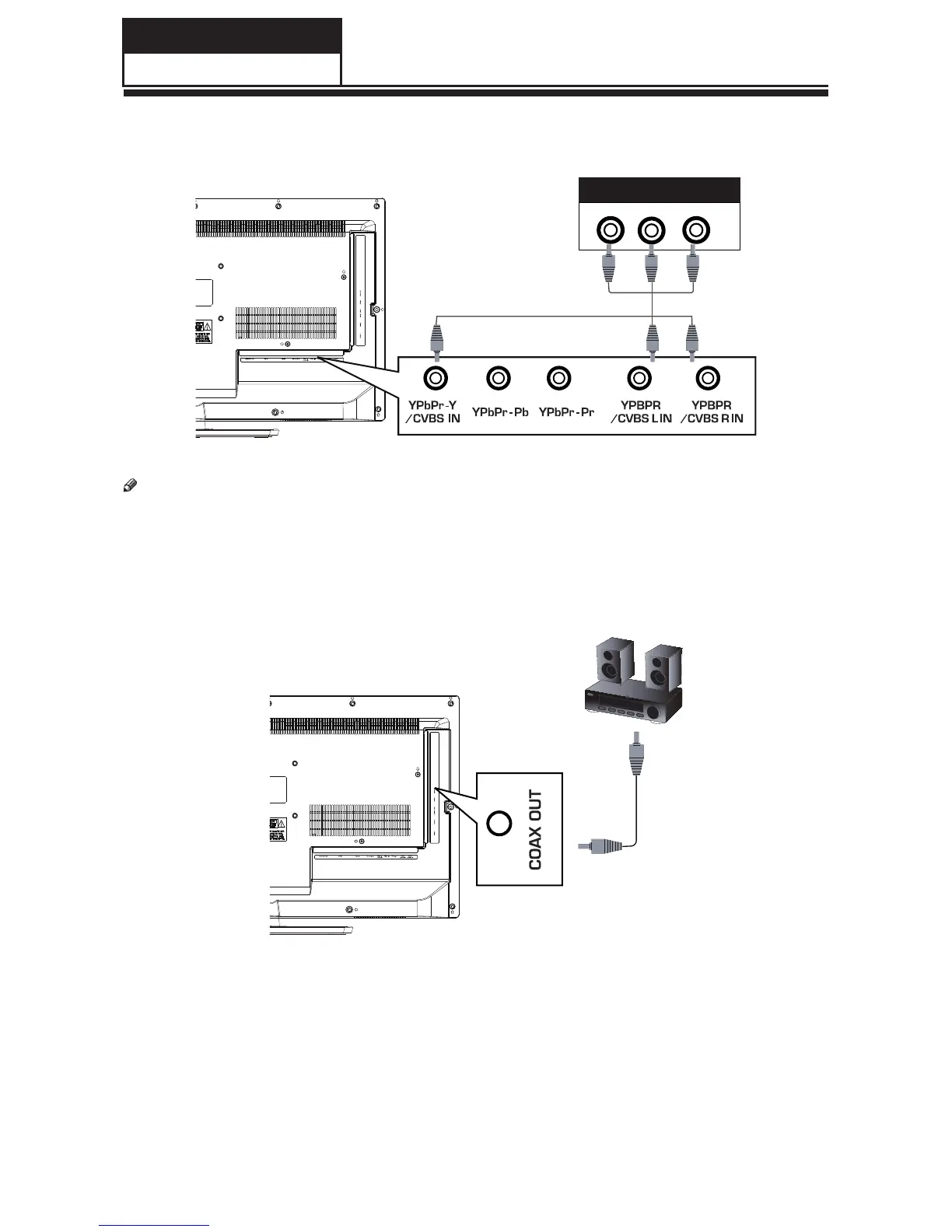

Using Composite Cable (good)
Note
• The component and composite audio and Y jack are shared. You can only connect one component or
composite device at a time.
• When connecting a composite video source, connect the yellow video wire to the Y (green) jack.
Connecting A Digital Audio Device
COMPOSITE OUT
L R
VIDEO
