Haier AD140S2SM3FA - Wiring Connection

124

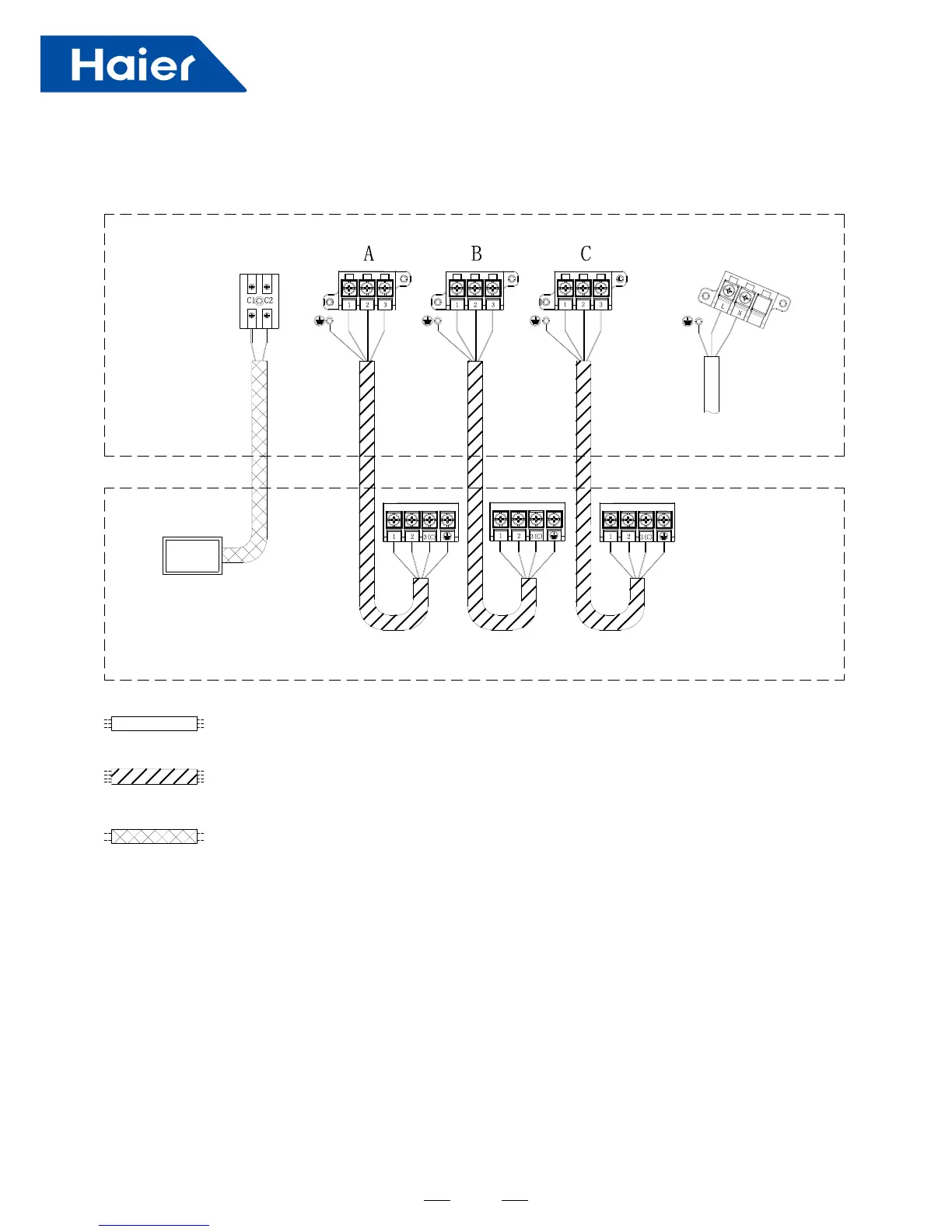

4. Wiring Connection
3U55S2SR2FA 3U70S2SR2FA
Connect the connecting wires between indoor and outdoor units and ensure the sequence numbers on terminals
match with each other.
Teminal block
Power Supply
1PH,220~240V
~
,50/60Hz
Central Controller
Indoor Unit A
Indoor Unit B
Indoor Unit C
Power Supply Cable: H05RN-F3G 4.0mm
2
Connecting Cable: H05RN-F4G 2.0mm
2
Connecting Cable: H05RN-F2G 2.0mm
2
