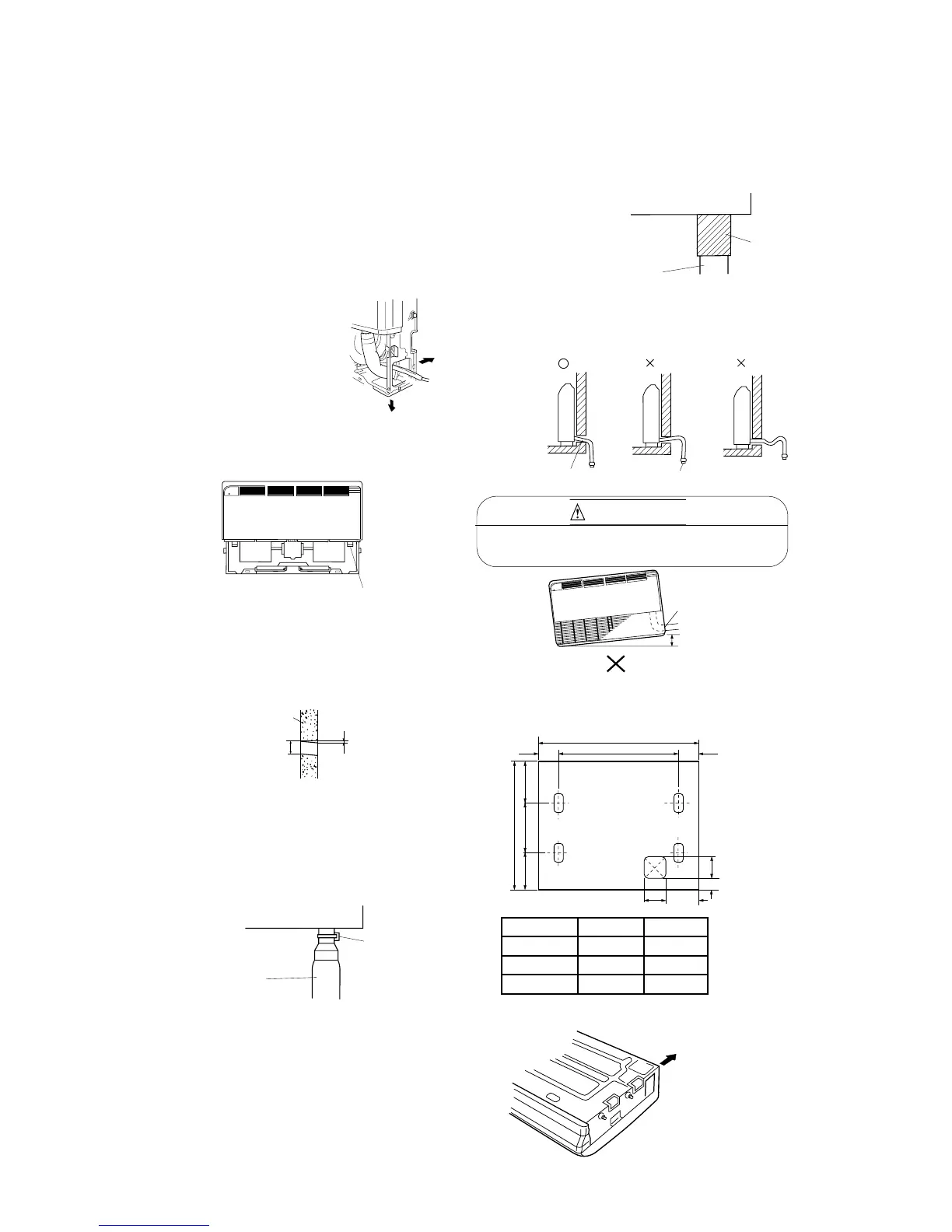

INSTALLATION PROCEDURE
Install the room air conditioning unit as follows:
PREPARING INDOOR UNIT INSTALLATION
FIRST REMOVE THE INTAKE GRILL
A. FLOOR MOUNTING
(AC36/42 only suitable for
exposed ceiling mounting)
1. DRILLING FOR PIPING
The piping and drain can exit the
unit in two directions as shown
below in (Fig. 2)
(Fig. 2)
The drain hose must be connected to the right side as
shown in (Fig.3).
After the piping and drainage exit has been selected,
drill a 7 cm dia. hole through the wall so that the
hole is slanting downward toward the outside to
ensure good drainage. When the pipe is led out from
the rear, make a hole as Fig.4, at the position shown.
2. INSTALLING DRAIN HOSE
The drain hose must be connected to the right side of
the unit (Fig.3)
Insert the drain hose into the drain pan, then secure
the drain hose with a nylon fastener. (Fig.5)
Be sure to arrange the drain hose correctly as shown
in Fig. 7 so that it is lower than the drain hose
connecting point of the indoor unit, if condensate
pump is not fitted to system.
B. UNDER CEILING MOUNTING
Using the installation template, drill holes for piping
and anchor bolts(for holes).(Fig.9)
Fig 9
1. DRILLING FOR PIPING
Select piping and drain directions. (Fig.10)
Fig 10
