Chapter 3 Disassembly

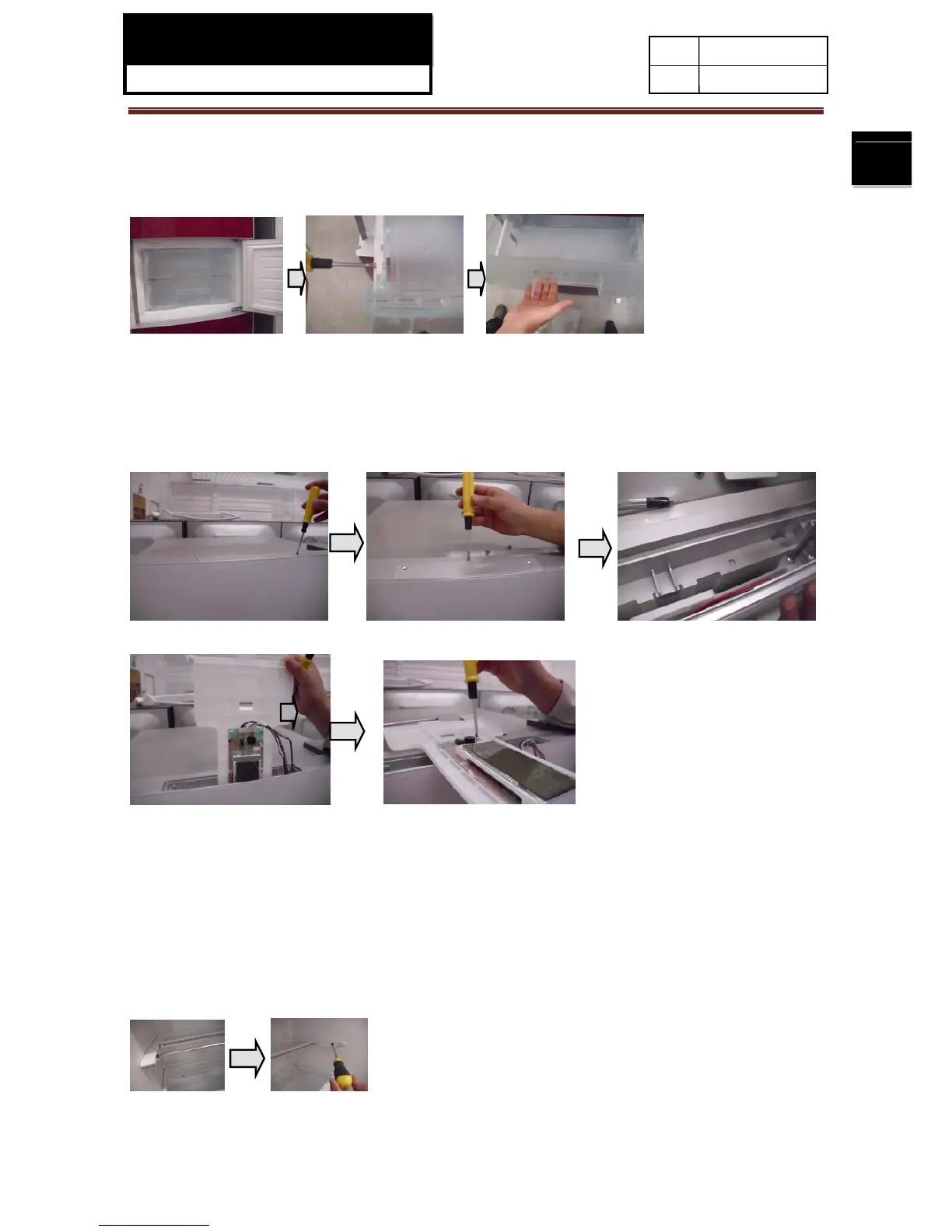

3-1. Remove the variable temperature compartment drawer
(1) Open the variable temperature compartment door (fig. ①);
(2) Remove 4 connectors of the drawer (fig. ②);
(3) Pull out 2 drawers from the cabinet (fig. ③).
3-2. Remove the display panel
① ② ③
④ ⑤
(1) Detach 2 screws fixing on the top cover of the fridge door (fig. ①);
(2) Remove the top cover of the fridge door (fig. ②);
(3) Detach 2 screws fixing on the display panel box (fig. ③);
(4) Pull out the shelf of display panel and disconnect the connector of the display panel (fig. ④).
(5) Detach 2 screws fixing on the display panel shelf (fig. ⑤)
3-3. Remove the rolling shelf
① ②
