Haier AFD626TGB/F

SERVICE MANUAL
Model:AFD626TGW/R/B
6
Issue 2010-10-25
Rev. Ref1010S025V0
Chapter 2 Product Feature
2-1. Specifications
1
Models
AFD626TGW
AFD626TGW/F
AFD626TGB
AFD626TGB/F
AFD626TGR
AFD626TGR/F

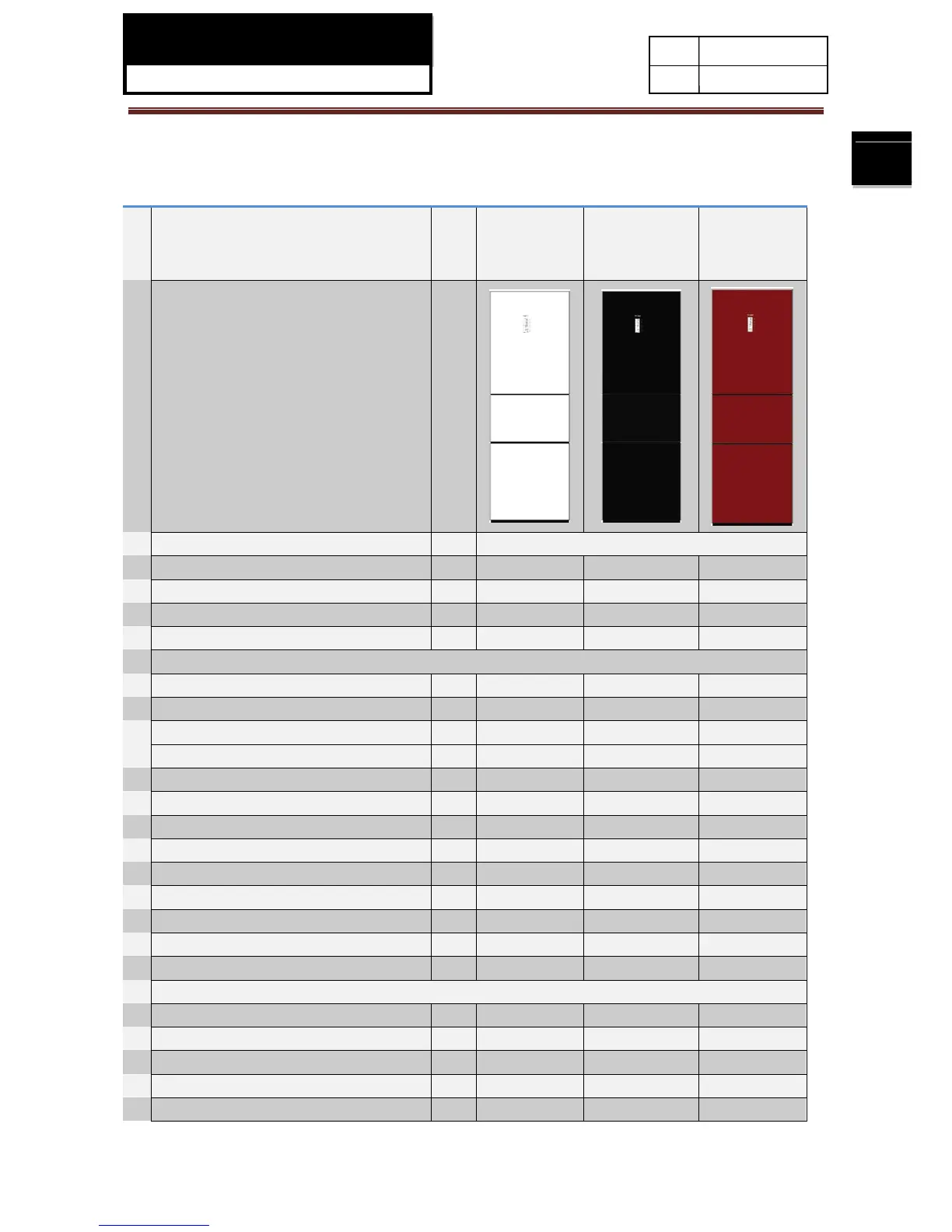

Sketch
Product description (Refrigerator/Freezer)
Refrigerator
Type of appliance (FS= freestanding/BI= built-in)
FS FS FS
Type of cooling system(NF=no frost/ S=static)
NF NF NF
Climate class*
SN N ST SN N ST SN N ST
Freezer compartment / Star rating
4* 4* 4*
2
Key features
Gross capacity
L 298 298 298
Total net capacity
L 254 254 254
Net capacity refrigerator compartment
L 160 160 160
Net muti-use compartment
L 34 34 34
Net capacity freezer compartment /
ice compartment
L 60 60 60
Freezing capacity
kg 12kg 12kg 12kg
Energy consumption / year
kWh 259 259 259
Max storage time at breakdown Freezer
Min 820
820 820
Defrosting (M=manual A=automatic)
A A A
Frost free system
yes yes yes
Defrost water outlet
yes yes yes
Air circulating ventilator
yes yes yes
Kind of coolant (R134a/R600a)
R600a/ 68g R600a/ 68g R600a/ 68g
3
Technical data
Voltage / frequency
V/Hz 220-240~/ 50 220-240~/ 50 220-240~/ 50
Input power / mains fuse minimum
W /A 100/ (DC) 100/ (DC) 100/ (DC)
Temperature range (from>to)
°C
Refrigerator
2-10°C 2-10°C 2-10°C
Muti-use compartment
5~-18°C 5~-18°C 5~-18°C -
