Haier AFD626TGB/F

SERVICE MANUAL
Model:AFD626TGW/R/B
24
Issue 2010-10-25
Rev. Ref1010S025V0

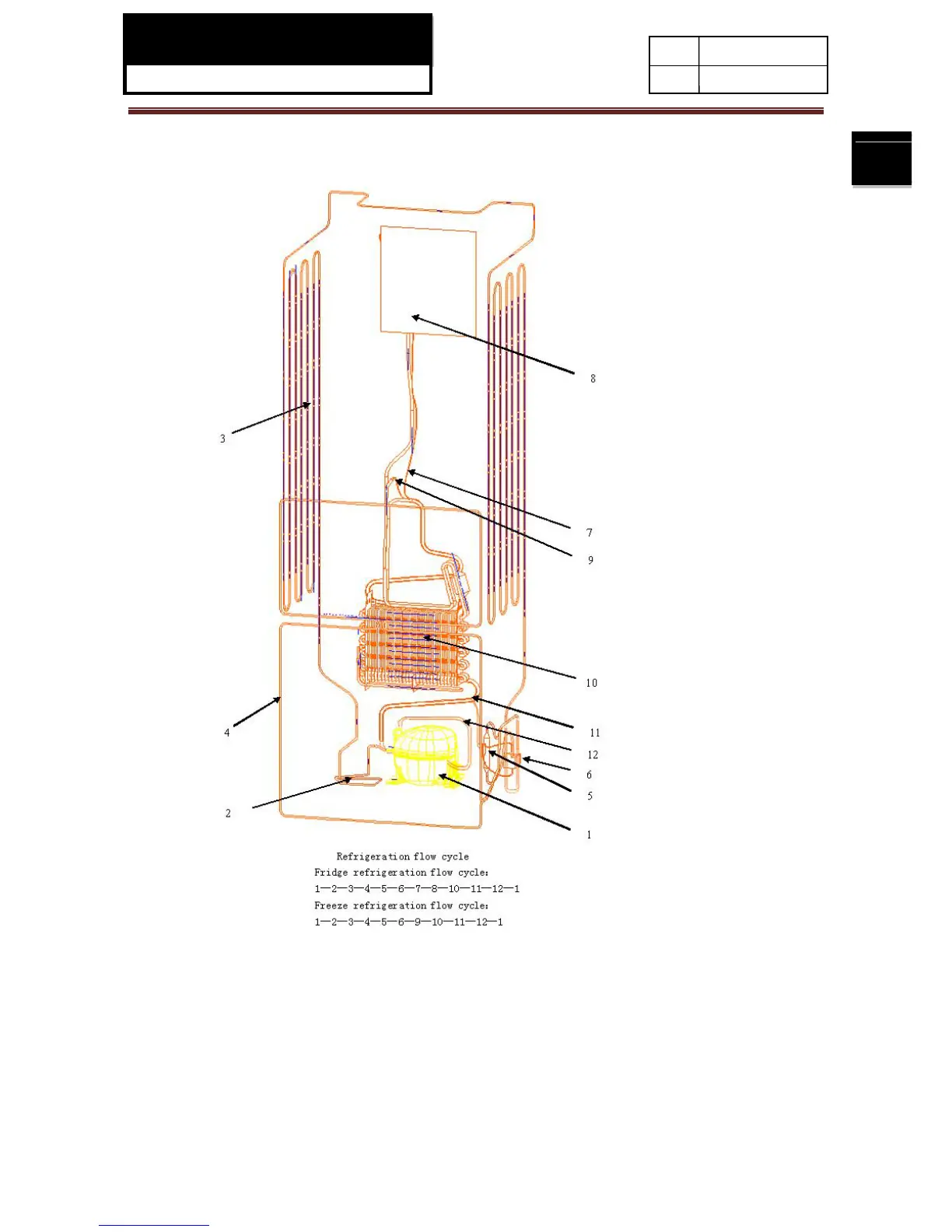

6.2. Perspective of the refrigeration system
1.compressor 2.evaporator tube 3.condenser4.de-dewing tube 5.dry filter 6.valve
7.fridge capillary tube 8.fridge evaporator 9.freeze capillary tube 10.freeze evaporator
11.air return tube 12.air return connect tube
