Performance and curves diagrams
Domestic air conditioner
11.7 Heating discharge pressure curves
54
outdoor temp
DB/WB 10℃ 20℃ 27℃
-15℃ 2595 2734 2835
-10℃ 2792 2947 3031
-7/-8℃ 3238 3373 3542
2/1℃ 3370 3657 3781
7/6℃ 3361 3550 3685
12/11℃ 3228 3444 3575
18/16℃ 3091 3237 3313
24/20℃ 2641 2751 2846
performance curves
heating discharge pressure.table
indoor temp.
1000
1500
2000
2500
3000
3500
4000
-15℃ -10℃ -7/-8℃ 2/1℃ 7/6℃ 12/11℃18/16℃24/20℃
discharge pressure (Kpa)
outdoor temp.(DB/WB)

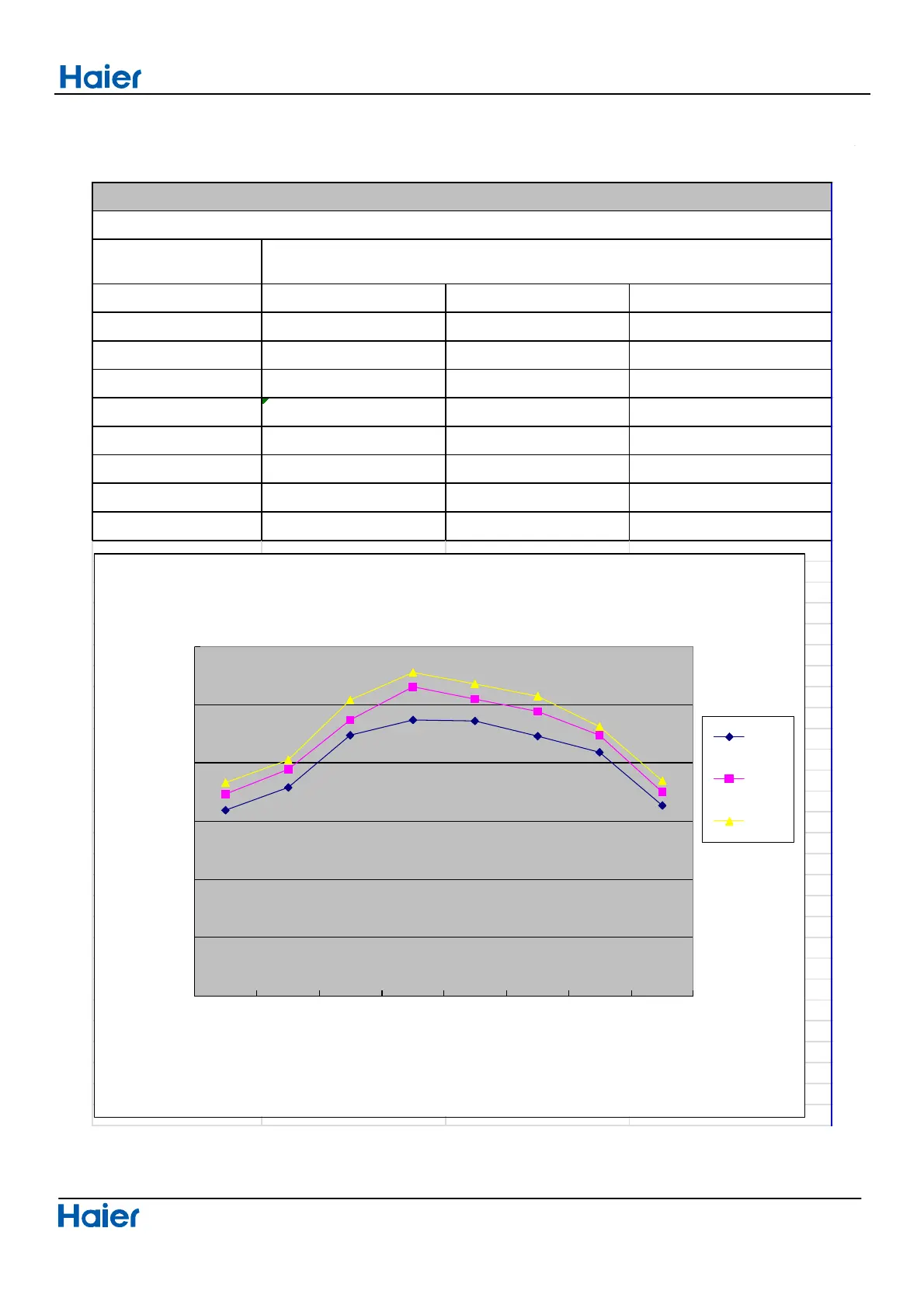

heating discharge pressure and temp. curves
10℃
20℃
27℃
