Performance and curves diagrams
Domestic air conditioner
11.8 Heating suction pressure curves
55
outdoor temp
DB/WB 10℃ 20℃ 27℃
-15℃ 345 385 405
-10℃ 398 428 447
-7/-8℃ 492 532 551
2/1℃ 611 651 670
7/6℃ 744 784 803
12/11℃ 844 884 904
18/16℃ 1011 1051 1071
24/20℃ 1197 1237 1257
performance curves
heating suction pressure.table
indoor temp.
0
100
200
300
400
500
600
700
800
900
1000
1100
1200
1300
1400
-15℃ -10℃ -7/-8℃ 2/1℃ 7/6℃ 12/11℃18/16℃24/20℃
suction pressure (Kpa)
outdoor temp.(DB/WB)

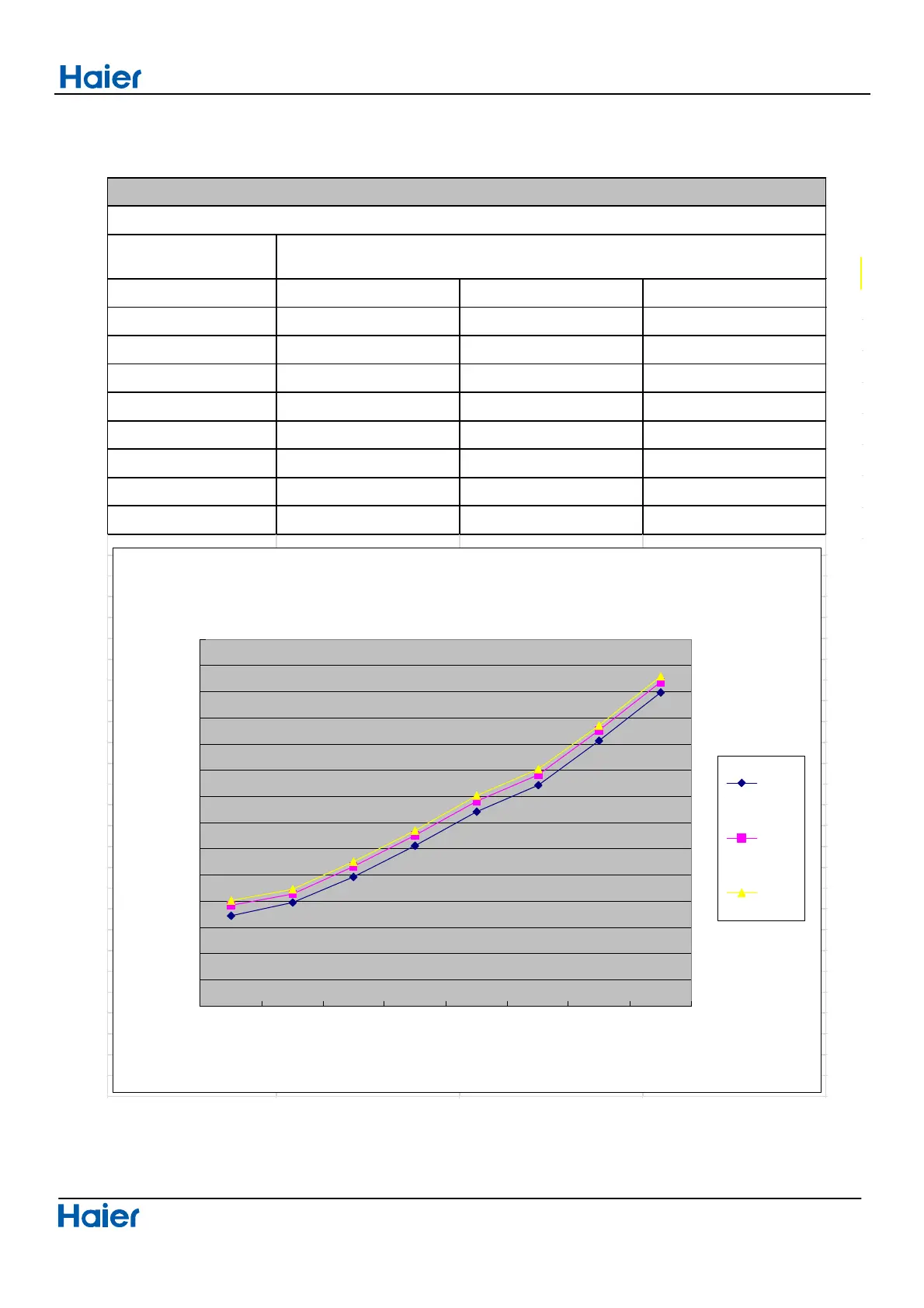

heating suction pressure and temp. curves
10℃
20℃
27℃
