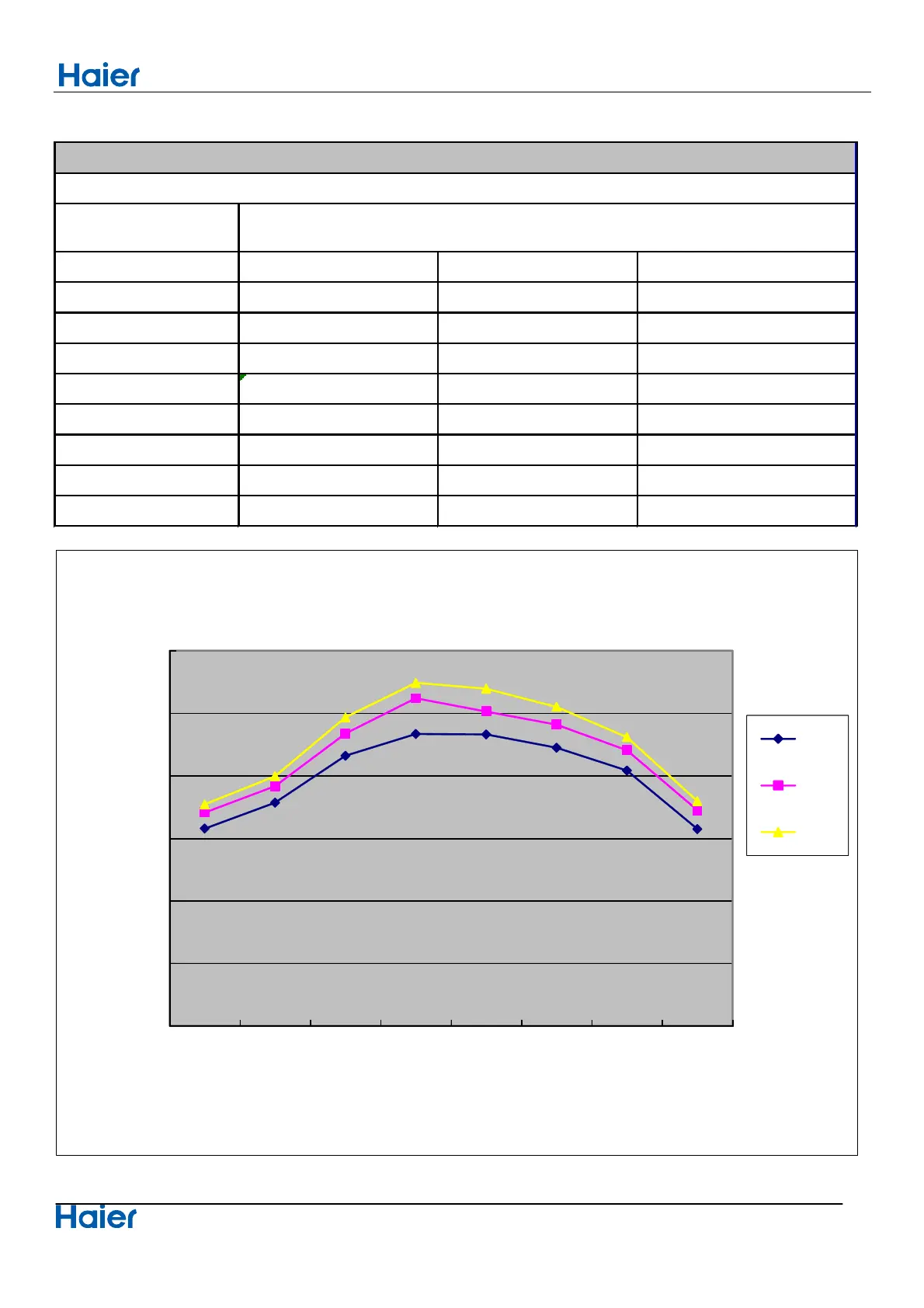

Performance and ceves diagrams
57 Domestic air conditioner
11.7 Heating discharge pressure curves
performance curves
heating discharge pressure.table
outdoor temp indoor temp.
DB/WB 10℃ 20℃ 27℃
-15℃ 2578 2706 2771
-10℃ 2784 2917 2997
-7/-8℃ 3160 3338 3467
2/1℃ 3334 3619 3743
7/6℃ 3330 3514 3696
12/11℃ 3224 3409 3551
18/16℃ 3041 3204 3309
24/20℃ 2573 2723 2796
heating discharge pressure and temp. curves
4000
3500
10℃
3000
20℃
2500
27℃
2000
1500
1000
-15℃ -10℃ -7/-8℃ 2/1℃ 7/6℃ 12/11℃18/16℃24/20℃
outdoor temp.(DB/WB)
discharge pressure (Kpa)
