Haier AS25THMHRA-C - Page 392

Performance and ceves diagrams
55 Domestic air conditioner
11.6 Heating power consumption value- temperature curves
performance curves
power consumption value-temp.table
outdoor temp. indoor temp.(humidity 46%)
DB/WB
10
℃ 20 ℃ 27 ℃
-15 ℃
1293 1361 1443
-10
℃
1549 1613 1694
-7/-8
℃
1617 1720 1806
2/1
℃
1679 1768 1856
7/6
℃
1555 1620 1701
12/11
℃
1101 1184 1302
18/16
℃
818 909 1000
24/20
℃
577 641 706

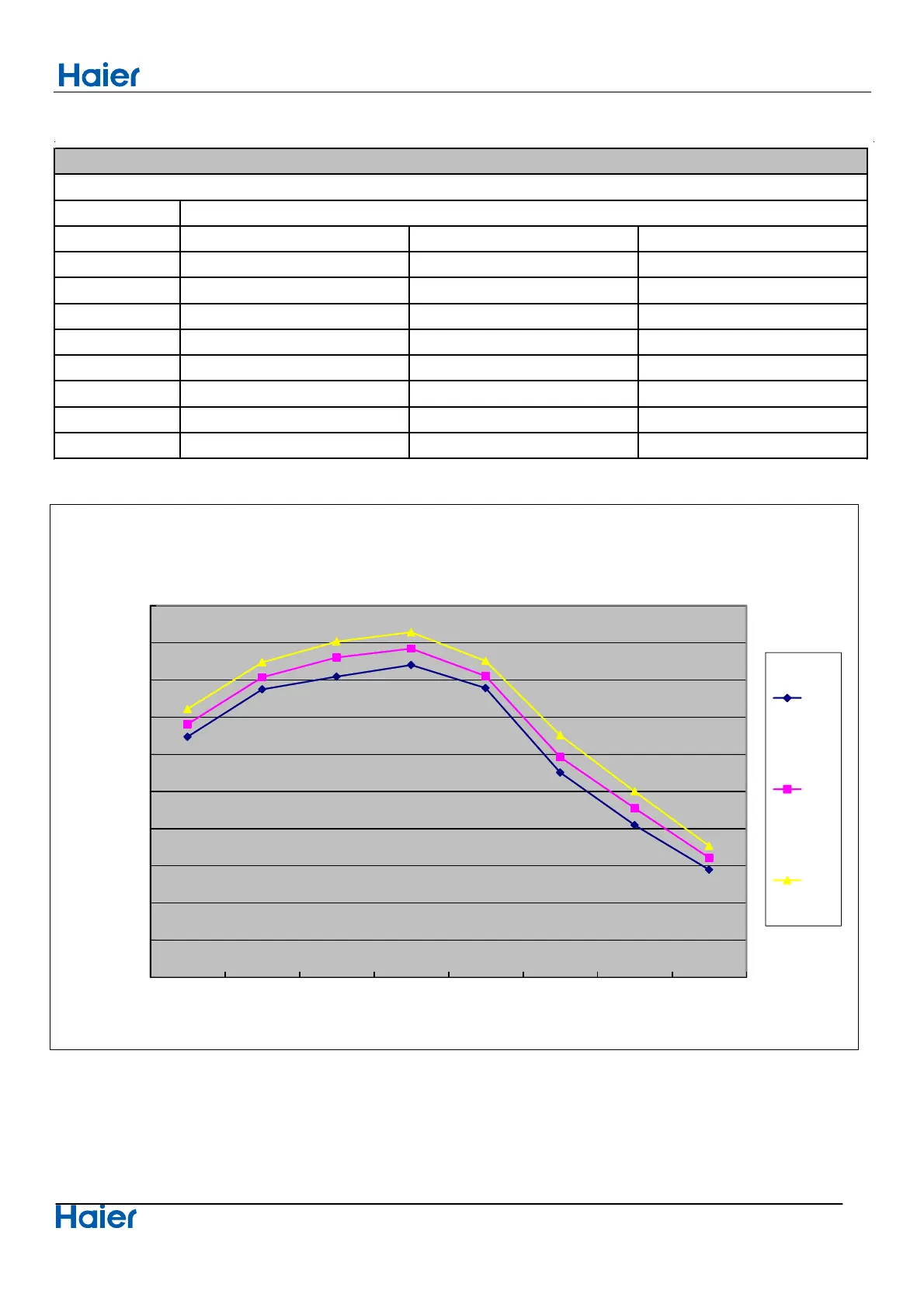

heating capacity and indoor/outdoor temp.curves
2000
1800
1600
10℃
1400
1200
1000
20℃
800
600
27℃
400
200
0
-15℃ -10℃ -7/-8℃ 2/1℃ 7/6℃ 12/11℃ 18/16℃ 24/20℃
outdoor temp.(DB/WB)
cooling capacity(w)
