Haier AS25THMHRA-C - Page 391

Performance and ceves diagrams
53 Domestic air conditioner
11.5 Heating capacity-temperature curves
performance curves
heating capacity and indoor/outdoor temp.table
outdoor temp. indoor temp.(humidity 46%)
DB/WB 10℃ 20℃ 27℃
-15℃
3021 2815 2686
-10℃
4644 4246 3916
-7/-8℃
5707 5174 4808
2/1℃
6101 5384 4882
7/6℃
5938 5483 4879
12/11℃
5315 4896 4269
18/16℃
4349 4100 3595
24/20℃
3489 3136 2796

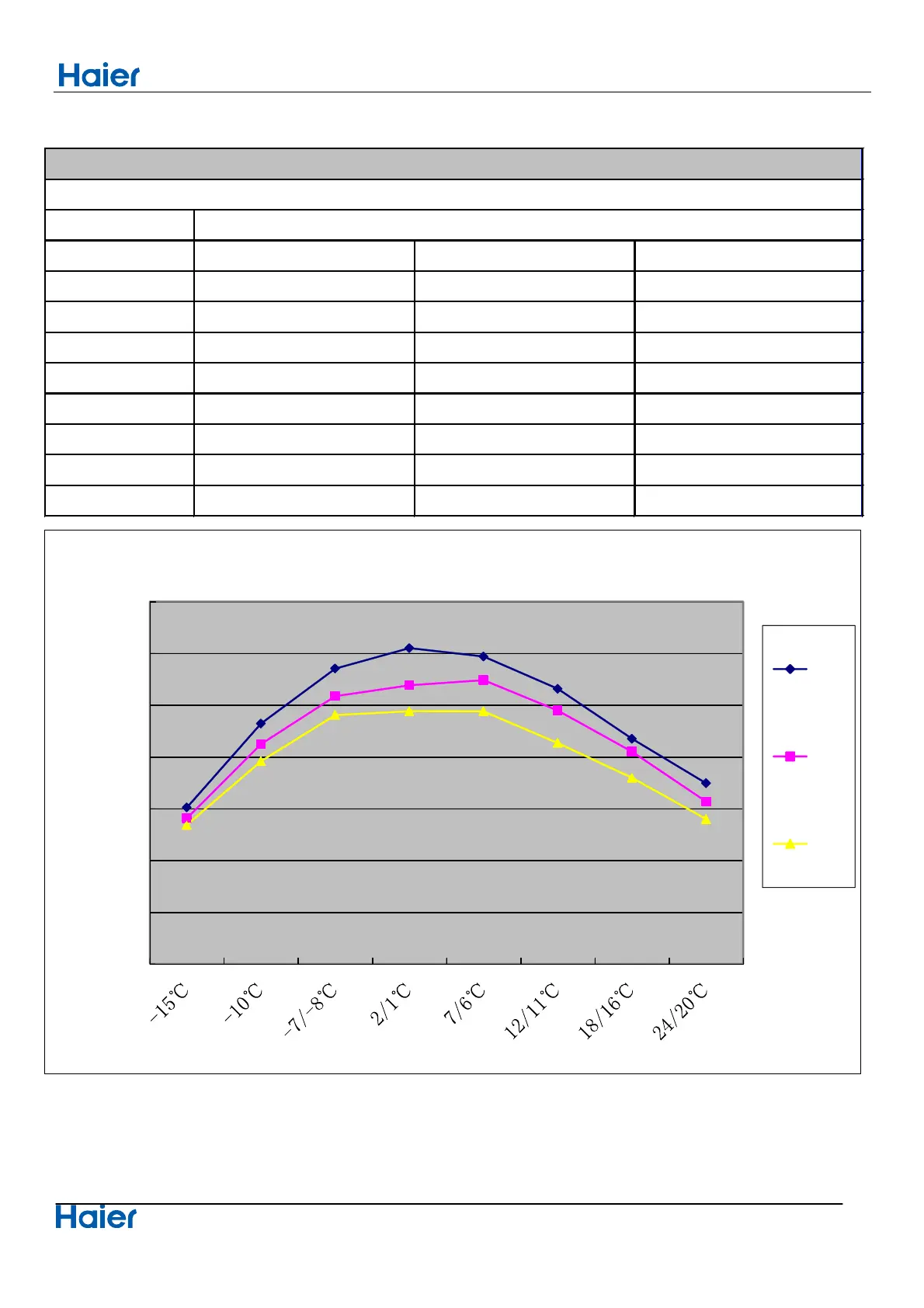

heating capacity and indoor/outdoor temp.curves
7000
6000
10℃
5000
4000
20℃
3000
27℃
2000
1000
0
heating capacity(W)
