Performance and ceves diagrams
51 Domestic air conditioner
11.4 Cooling suction pressure curves
performance curves
cooling suction pressure.table
outdoor temp.
(humidity 46%)
indoor temp.
DB/WB 21/15℃ 27/19℃ 35/24℃
10℃ 739 865 1005
15℃ 746 874 1015
20℃
754 891 1025
25℃
794 900 1046
30℃
835 948 1057
35℃
844 957 1112
38℃
888 987 1135
40℃
977 1086 1249
43℃ 1075 1173 1361

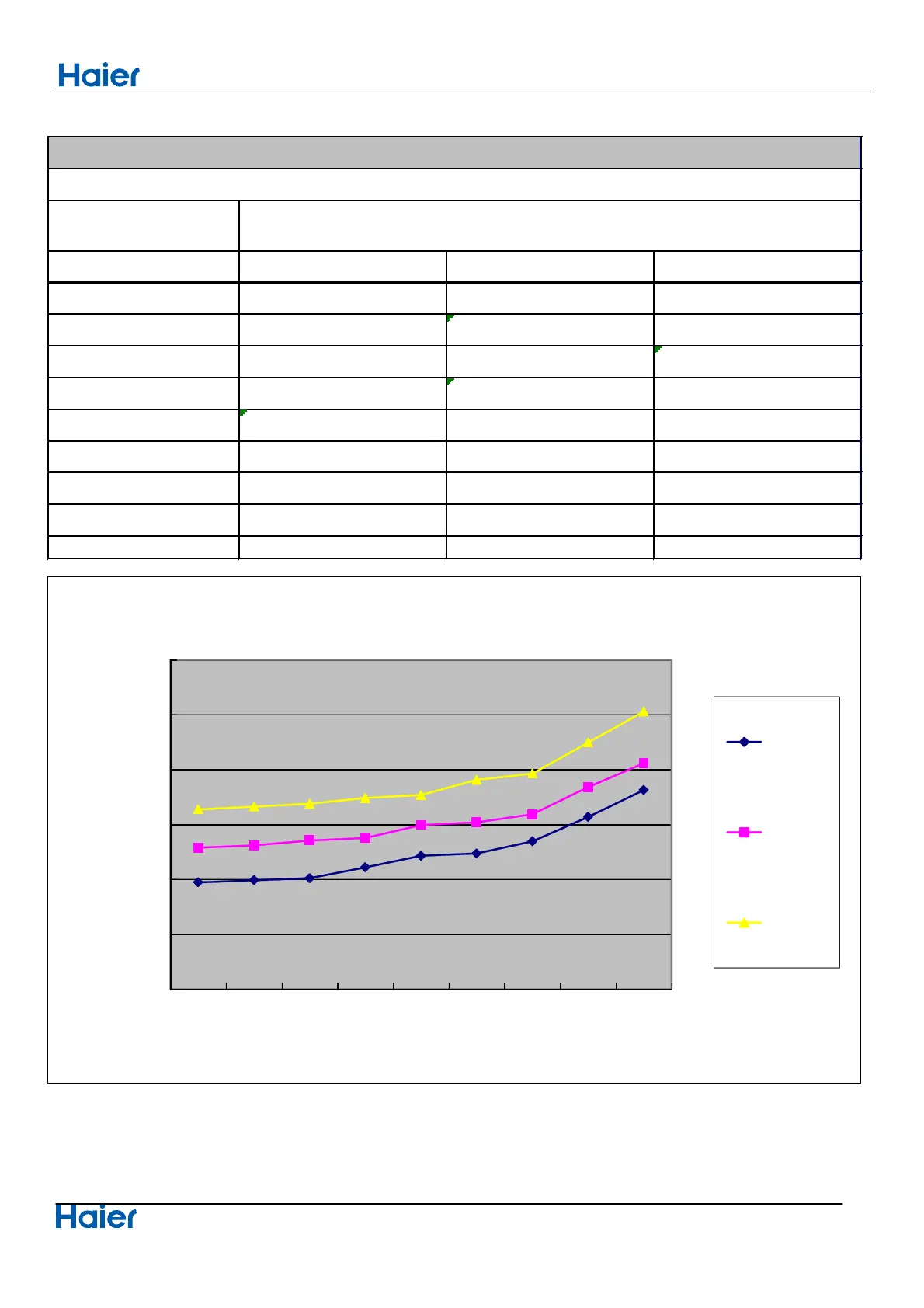

cooling suction pressure and temp.curves
1550
1350
21/15℃
1150
950
27/19℃
750
550
35/24℃
350
10℃ 15℃ 20℃ 25℃ 30℃ 35℃ 38℃ 40℃ 43℃
outdoor temp.(DB/WB)
suction pressure (Kpa)
