The outdoor and all indoor units are in parallel through 2 non-polar wires.
Three wiring methods between wired controller and indoor unit:
A. 1 to multi (group control): one wired controller controls 2~16 indoors, as shown in above gure, indoor 1~indoor 2:
indoor 2 is wired control master unit, the others are wired control slave units. Wired controller and the master indoor
(directly connected to wired controller) is connected by 3 polar wires; the other indoors and the master indoors are
connected by 2 polar wires.
B. 1 to 1 (one wired controller controls one indoor): as shown in above gure, indoor 3~ indoor 4, indoor and wired
controller are connected by 3 polar wires.
C. 2 to 1 (two wired controller controls one indoor): as shown in above gure, indoor 6. Either of wired controllers can be
set as master wired controller, and the other is slave wired controller. Master/slave wired controller, and master/indoor
are connected by 3 polar wires.
When indoor is controlled by remote controller, refer to the "wired control master unit/wired control slave unit/remote
control unit table".A, B, C on signal terminal block need not wires and not connect the wired controller.
Electric wiring and the application

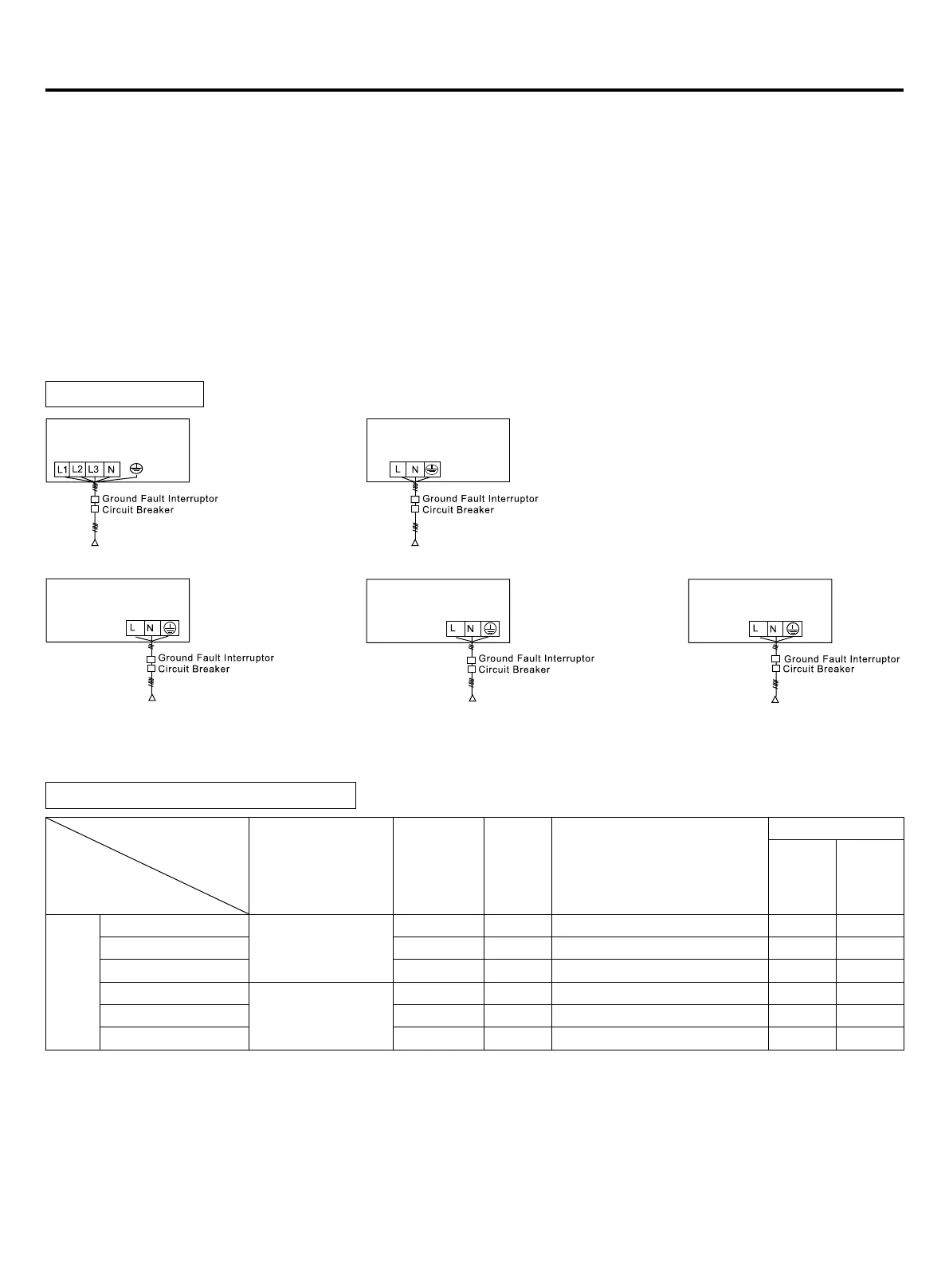

Power wiring gure
Indoor and outdoor use their individual power source. All indoors use one power source. Must install the leakage breaker
and the over current breaker, or electric shock will occur.
power source: 3N~, 380-400V, 50/60Hz
outdoor
AU04~06IFPERA
power source: 1PH, 220-230V~, 50/60Hz
indoor 1
(wall mounted unit)
power source: 1PH, 220-230V~, 50/60Hz
indoor 2
(wall mounted unit)
power source: 1PH, 220-230V~, 50/60Hz
indoor 3
(non wall mounted unit)
power source: 1PH, 220-240V~, 50/60Hz
outdoor
AU04~062FPERA
Outdoor power source and power cable
Item
Model
Power
source
Power cable
section
(mm
2
)
Circuit
breaker
(A)
Rated current of residual
circuit breaker (A)
Ground fault interruptor (mA)
response time (S)
Ground wire
Section
(mm
2
)
Screw
Individual power
AU042FPERA
1PH,
220-230V~,
50/60Hz
10 50 50A 30mA below 0.1S 10 M5
AU052FPERA 10 50 50A 30mA below 0.1S 10 M5
AU062FPERA 10 50 50A 30mA below 0.1S 10 M5
AU04IFPERA
3N~,
380-400V,
50/60Hz
4 20 20A 30mA below 0.1S 4 M5
AU05IFPERA 4 20 20A 30mA below 0.1S 4 M5
AU06IFPERA 4 20 20A 30mA below 0.1S 4 M5
• Power cable must be xed rmly.
• To avide electrical shock, make sure to disconnect the power supply 1 minute or more before servicing the electrical
parts.Even after 1 minute,always measure the voltage at the terminals of main circuit capacitors or electrical parts and
before touching, make sure that those voltages are 50VDC or less.
• To persons in charge of electrical wiring work: Do not oerate the unit until the refrigerant piping is complete. (Running
it before the piping is ready will break the compressor)
• Each outdoor must be earthed well.
