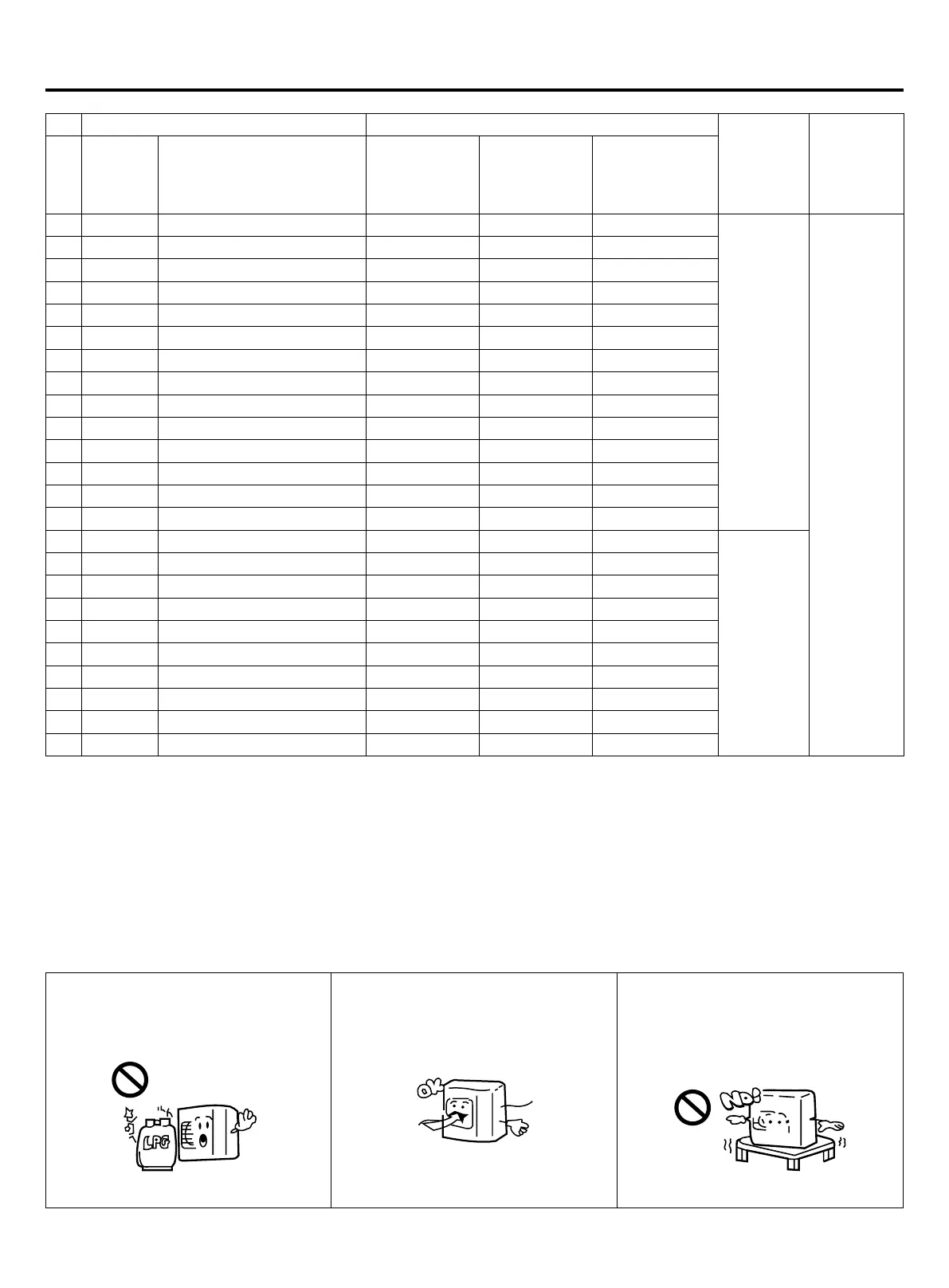

Haier AV08IMVEVA - Installation Place Selection

4
Indoor
Gather pipe
Combined
capacity
range
HP
Capacity
(W)
Combination Type
Allow the most
connected
indoor units
The most
recommended
indoor unit
number
Total indoor
capacity(100W)
58 162400 combination(18+20+20) 96 61 812~2111
HZG-30B
50%~130%
60 168000 combination(20+20+20) 99 63 840~2184
62 173500 combination(20+20+22) 100 64 868~2256
64 179000 combination(20+22+22) 100 64 895~2327
66 184500 combination(22+22+22) 100 64 922~2398
68 191000 combination(22+22+24) 100 70 955~2483
70 197500 combination(22+24+24) 100 70 988~2568
72 204000 combination(24+24+24) 100 70 1020~2652
74 209500 combination(24+24+26) 100 70 1048~2723
76 215000 combination(24+26+26) 100 70 1075~2795
78 220500 combination(26+26+26) 100 76 1103~2867
80 224000 combination(20+20+20+20) 100 76 1120~2912
82 229500 combination(20+20+20+22) 100 76 1148~2984
84 235000 combination(20+20+22+22) 100 76 1175~3055
86 240500 combination(20+22+22+22) 100 76 1203~3127
HZG-20B
HZG-30B
88 246000 combination(22+22+22+22) 100 76 1230~3198
90 252500 combination(22+22+22+24) 100 85 1263~3283
92 259000 combination(22+22+24+24) 100 85 1295~3367
94 265500 combination(22+24+24+24) 100 85 1328~3452
96 272000 combination(24+24+24+24) 100 85 1360~3536
98 277500 combination(24+24+24+26) 100 85 1388~3608
100 283000 combination(24+24+26+26) 100 85 1415~3679
102 288500 combination(24+26+26+26) 100 89 1443~3751
104 294000 combination(26+26+26+26) 100 89 1470~3822
Installation instruction
Note:
a. If all the indoor units operate at the same time in one system, the total indoor units capacity should be less than or
equal to the total outdoor units capacity. Otherwise,overloading operations may occur in bad operating condition or
some special conditions. If all the indoor units don't operate at the same time in one system,the total indoor units
capacity should be no more than 130% of the total outdoor units capacity.
c. If the system operates in high heat load or cold area (Ambient Temperature below -10°C), the total indoor units capacity
should be less than the total outdoor units capacity.
d. To choose combinations' wires and air switches according to the Max. operating current of the combinations.
Installation place selection
Air-conditioner can't be installed in the
place with inammable gas. Or it will
cause re hazard.
The unit should be installed at the
place with good ventilation. No
obstacle at the air inlet/outlet. And no
strong wind blows the unit.
The installation space refers to the
latter info.
The unit should be installed at the
strong enough place. Or it will cause
vibration and noise.
