SER
VICE MANUAL
Model:
32
Issue
Rev
.

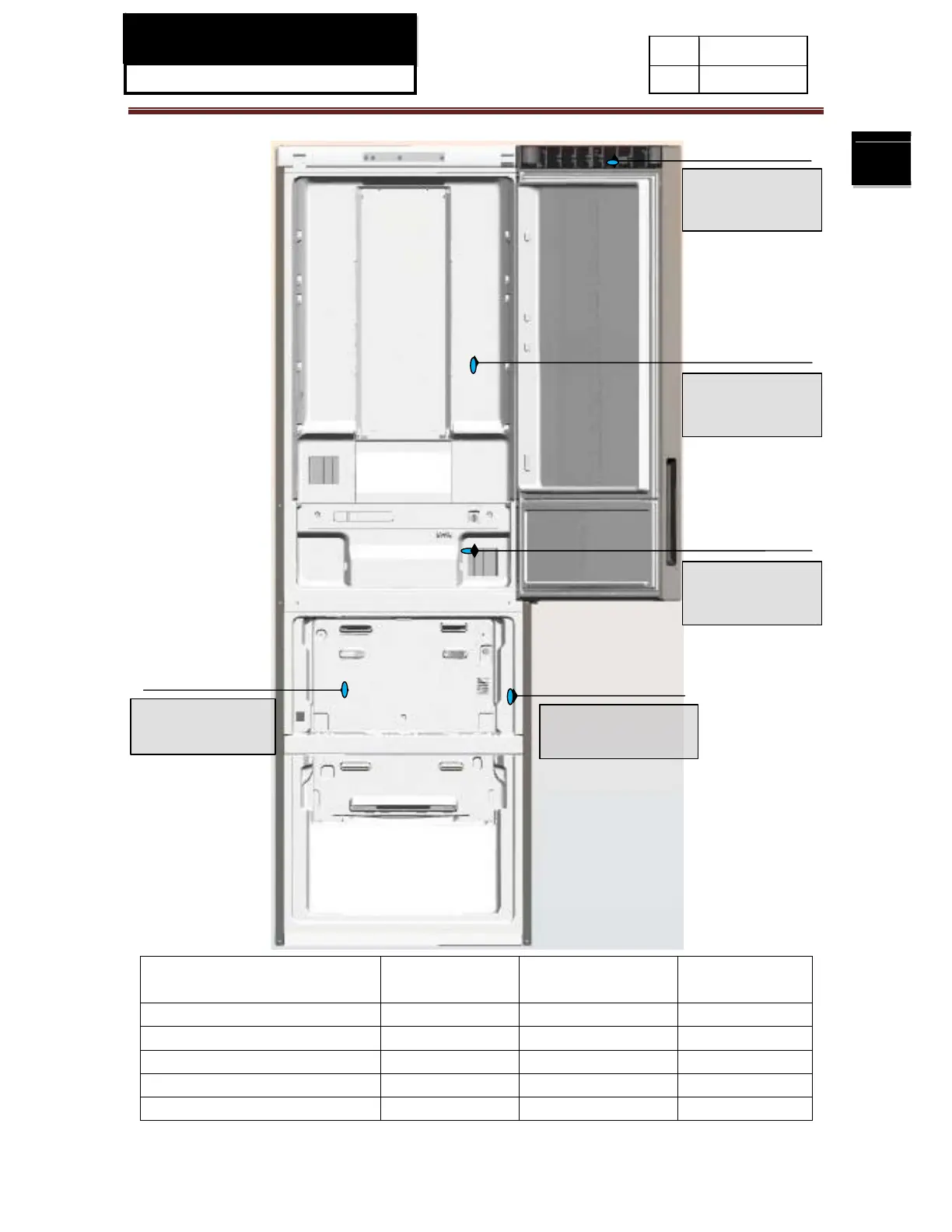

Graphic display of the sensor location
Name of sensors
Distance to the
top (mm)
Distance to the right
side (mm)
Distance to the
left side (mm)
Environment temperature sensor
13
286
309
Refrigerating sensor
390
194
401
Freezing sensor
1270
112
483
Chiller sensor
912.5
203
392
Defrosting sensor
1275
461
134
Fridge storage
temperature sensor
Ambient
temperature sensor
Freezer storage
tem
p
erature senso
r
Defrosting
temperature sensor
Chiller
temperature sensor
31
33
Table of Contents
Table of Contents
2
General Information
4
1-1.General Guidelines
4
Notice
4
How to Read this Service Manual
6
Product Feature
7
Specifications
7
External Views
12
Major Features
14
Installation, Adjustments and Maintenance
16
Door (Refrigerator Door, Freezer Door)
16
3-2.Adjustable Foot
19
Disassembly
21
Display Screen Assembly
22
Air Passage Assembly
22
Assembly
22
Control and Display System
26
Control and Display Panel
26
Function Adjustment
26
Error Code Display and Sensor Positions
29
Control Principle of Electronic Component
33
Fan Cooling System
33
Ice Maker System
33
Defrost Function
33
Electromagnetic Valve
34
System Flow Principle
35
Refrigeration Flow Chart
35
Refrigeration Flow Scenograph
36
Air Flow Scenograph
37
Water Supply Flow Scenograph
37
Circuit Diagram
38
Brief Principle Diagram
38
Main Control PCB Diagram
39
Quick Check
40
Self Test Model
40
PCB Checkout
41
Trouble Shooting
44
10-1.Abnormal Phenomena
44
