– 12 –
Refrigerator Door
Refrigerator Door Handle
There are two types of door handles depending
RQ WKH PRGHO %RWK KDYH D GLႇHUHQW UHPRYDO
method.
Horizontal ABE21 Door Handle Removal
1. Remove the chrome end cap that is on the
ÀDW SDUW RI WKH KDQGOH DGKHUHG ZLWK GRXEOH
sided tape) to reveal two Phillips head screws.
2. Loosen the 1/8 in. set screw in the bottom
or top (depends on the door swing) of the
handle. The set screw will be located at the
end of the handle, which is in the middle of
the door.
3. Remove two Phillips head screws previously
covered by the chrome end cap.
4. Pull the handle away from the door.
NOTE: The handles, end caps, and handle
screws come as a handle pack assembly. Once
end caps are removed, a new handle pack will be
required to get new end caps.

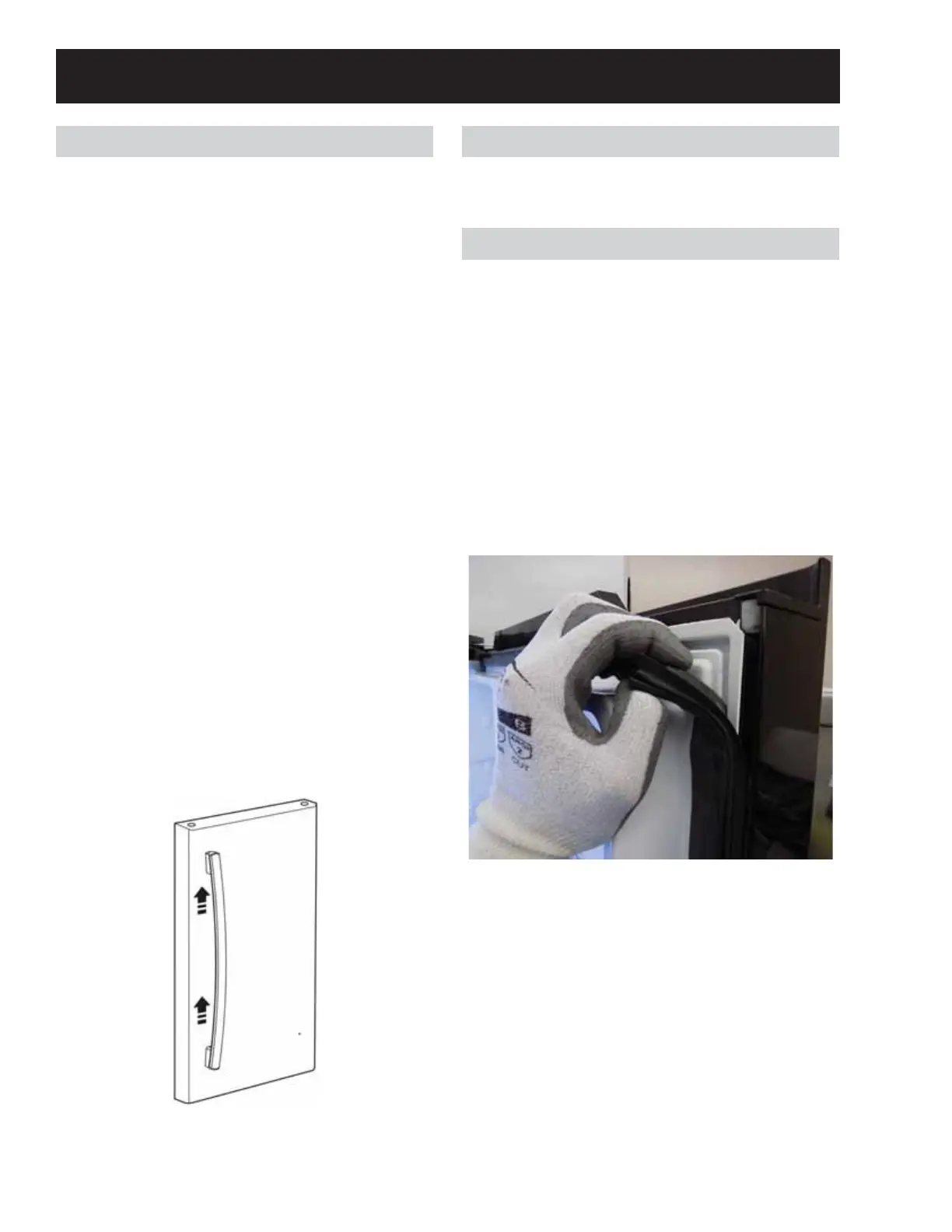

Vertical GBE21 Door Handle Removal
1. Slide the handle up to release it from the
mounting fasteners.
2. Pull the handle away from the door.
Refrigerator Door Bins
Door bins are removable by lifting up on the
desired bin.
Refrigerator Gasket
The refrigerator door gasket is a push in style
gasket which allows for easy removal and
installation into a retainer channel molded into
the door. The gasket features a magnetic surface
that helps to ensure a proper seal to the metal
surface of the refrigerator.
Fresh Food Gasket Removal/Replacement
1. Soak the new gasket in warm water to make
it more pliable and to smooth out any wrinkles
from the shipping packaging.
2. Pull the old gasket out of the retainer channel.
Starting in any corner of the door, push the
barbed edge of the gasket into the retaining
channel.
NOTE: $ WKLQ FRDW RI SHWUROHXP MHOO\ RU SDUDႈQ
wax can be applied to the hinge side of the
gaskets to improve closure across the cabinet.
