Haier GE Appliances AW36TL2HFA User Manual

INDOOR UNIT CONTROLS AND COMPONENTS
PAGE 14
ENGLISH
The indoor unit is mounted high on the wall to provide comfort and air movement within the conditioned space. Features of the
system include: Variable speed blower operation that speeds up and slows down with changes in demand, moving louvers to
direct air, indoor air temperature sensing, evaporator coil temperature sensing, a status display, evaporator coil with metering
device located in outdoor unit, and an emergency ope ration button.
Ambient Temperature Sensor
Display
Fan Motor
Louver Motor
PCB
1
2
3
4
5
Piping Temperature Sensor
Terminal Block
Emergency Button
Louver Motor
6
7
8
9
Indoor Unit Introduction

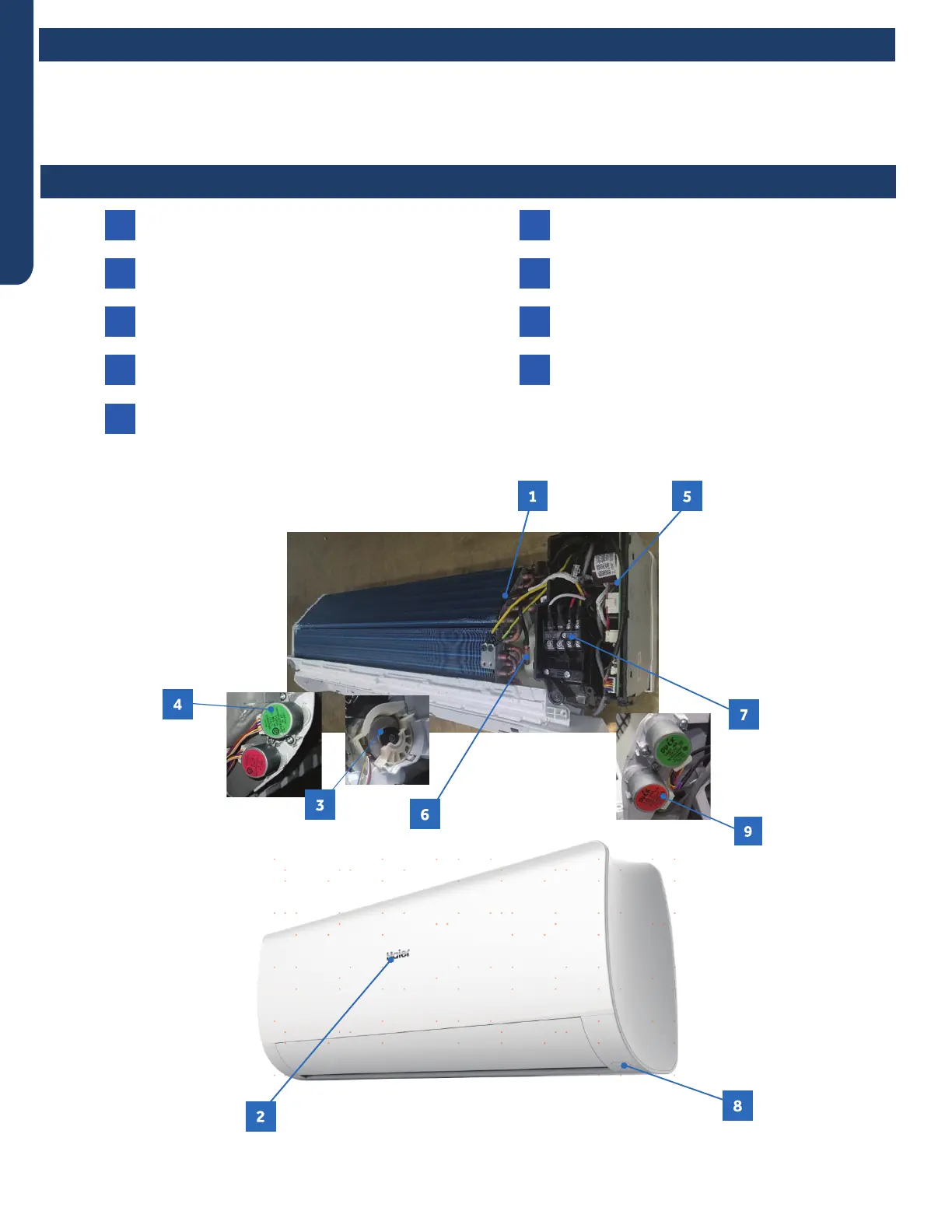

Indoor Component Identication

Haier GE Appliances AW36TL2HFA Specifications

General

Model Number	AW36TL2HFA
Brand	Haier GE Appliances
Cooling Capacity (BTU/h)	36000
Heating Capacity (BTU/h)	36000
SEER Rating	16
Voltage (V)	208/230
Phase	1
Refrigerant Type	R-410A
Type	Heat Pump
