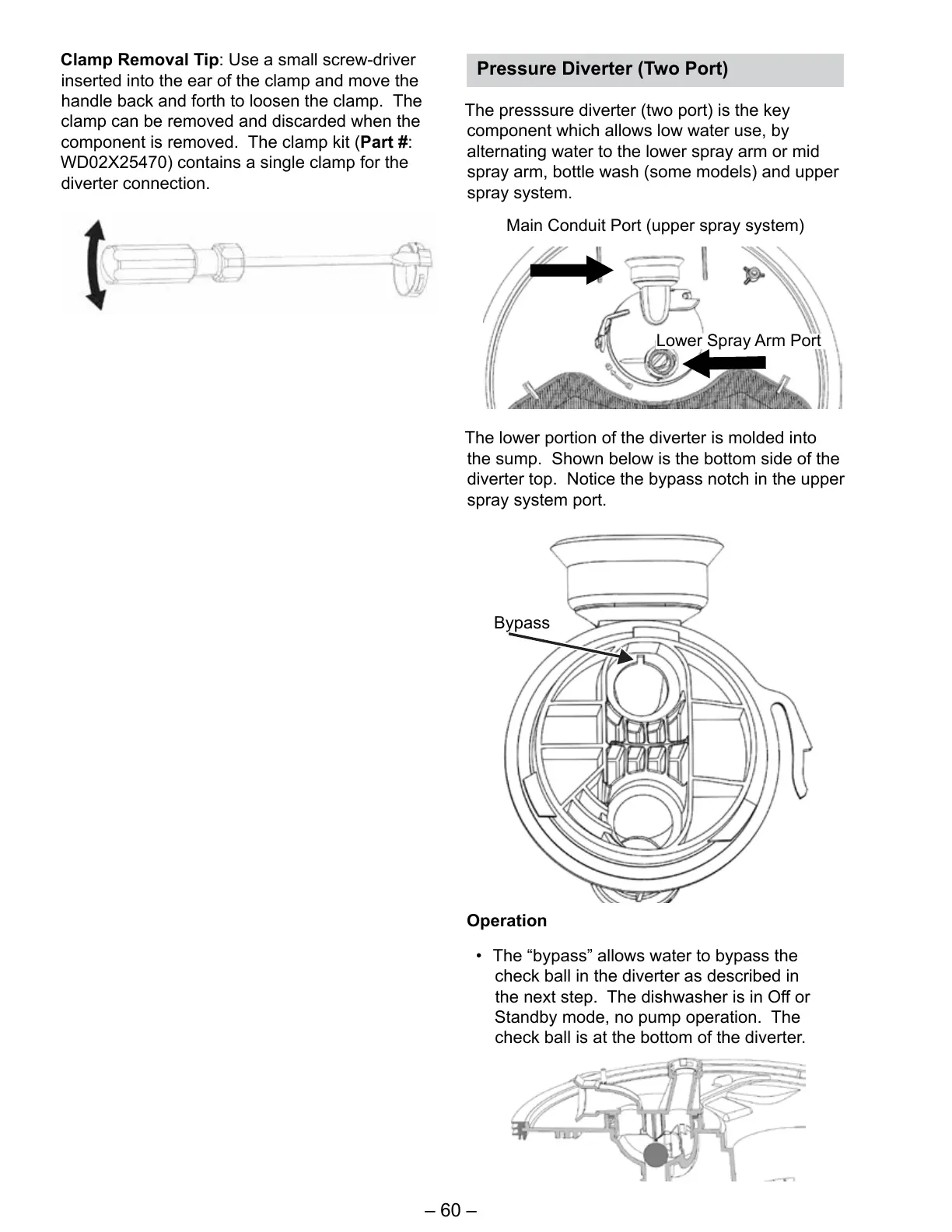

The presssure diverter (two port) is the key
component which allows low water use, by
alternating water to the lower spray arm or mid
spray arm, bottle wash (some models) and upper
spray system.
The lower portion of the diverter is molded into
the sump. Shown below is the bottom side of the
diverter top. Notice the bypass notch in the upper
spray system port.
Operation
• The “bypass” allows water to bypass the
check ball in the diverter as described in
the next step. The dishwasher is in Off or
Standby mode, no pump operation. The
check ball is at the bottom of the diverter.
Bypass
Main Conduit Port (upper spray system)
Lower Spray Arm Port
Clamp Removal Tip: Use a small screw-driver
inserted into the ear of the clamp and move the
handle back and forth to loosen the clamp. The
clamp can be removed and discarded when the
component is removed. The clamp kit (Part #:
WD02X25470) contains a single clamp for the
diverter connection.
Pressure Diverter (Two Port)
