– 9 –

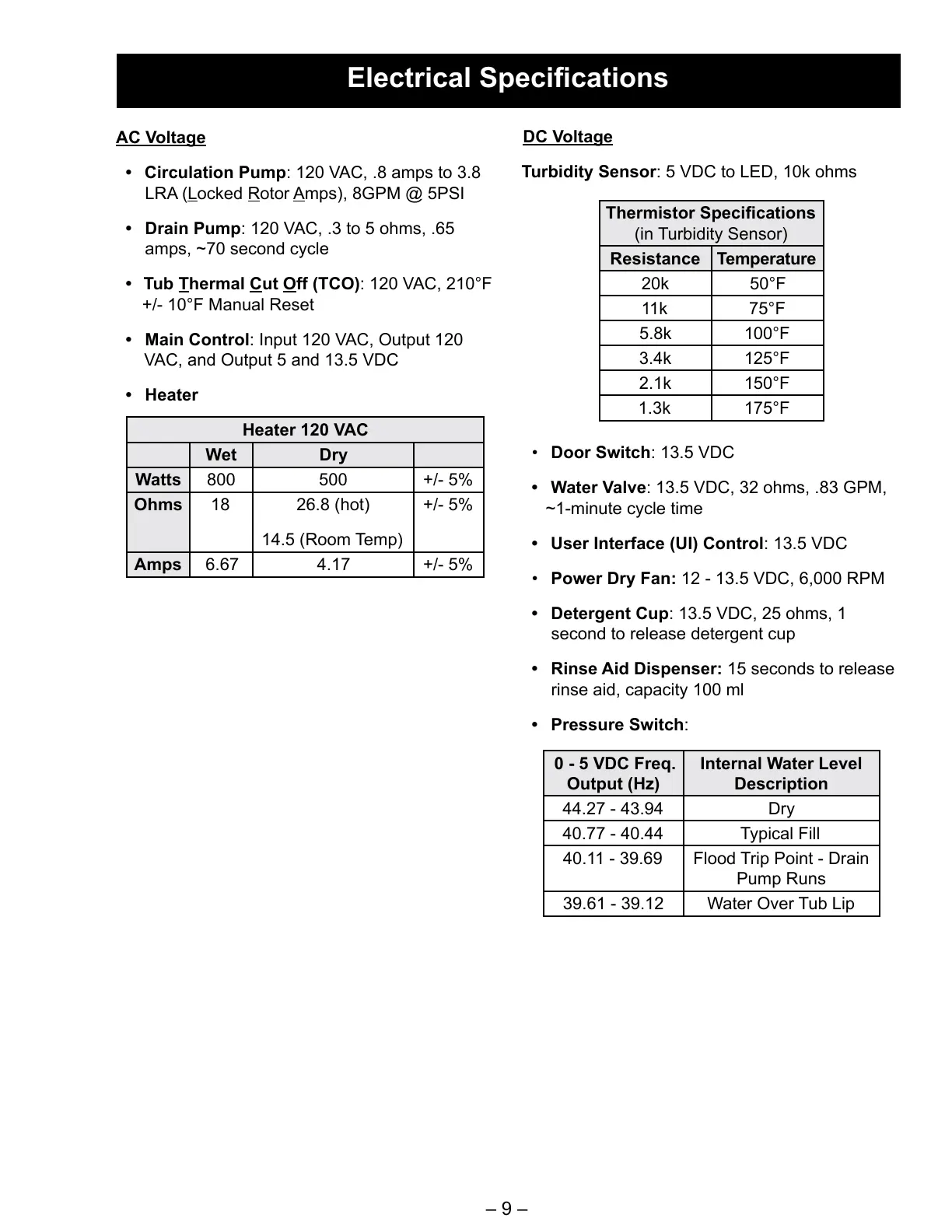

Electrical Specications
AC Voltage
• Circulation Pump: 120 VAC, .8 amps to 3.8
LRA (Locked Rotor Amps), 8GPM @ 5PSI
• Drain Pump: 120 VAC, .3 to 5 ohms, .65
amps, ~70 second cycle
• Tub Thermal Cut Off (TCO): 120 VAC, 210°F
+/- 10°F Manual Reset
• Main Control: Input 120 VAC, Output 120
VAC, and Output 5 and 13.5 VDC
• Heater
Thermistor Specications
(in Turbidity Sensor)
Resistance Temperature
20k 50°F
11k 75°F
5.8k 100°F
3.4k 125°F
2.1k 150°F
1.3k 175°F
DC Voltage
Turbidity Sensor: 5 VDC to LED, 10k ohms
• Door Switch: 13.5 VDC
• Water Valve: 13.5 VDC, 32 ohms, .83 GPM,
~1-minute cycle time
• User Interface (UI) Control: 13.5 VDC
• Power Dry Fan: 12 - 13.5 VDC, 6,000 RPM
• Detergent Cup: 13.5 VDC, 25 ohms, 1
second to release detergent cup
• Rinse Aid Dispenser: 15 seconds to release
rinse aid, capacity 100 ml
• Pressure Switch:
Heater 120 VAC
Wet Dry
Watts 800 500 +/- 5%
Ohms 18 26.8 (hot)
14.5 (Room Temp)
+/- 5%
Amps 6.67 4.17 +/- 5%
0 - 5 VDC Freq.
Output (Hz)
Internal Water Level
Description
44.27 - 43.94 Dry
40.77 - 40.44 Typical Fill
40.11 - 39.69 Flood Trip Point - Drain
Pump Runs
39.61 - 39.12 Water Over Tub Lip
