Connections
Further details of the power requirement of the
individual product will be found in the users’
instruction and on the appliance rating plate. In
the case of built-in product you are advised,
should you wish to use a longer cable than the
one supplied, that a suitably rated heat
resistanttypemustbeused.
The wiring must be connected to the mains
supplyasfollows:
ELECTRICALCONNECTION(FORU.K.ONLY)
Warning-thisappliancemustbeearthed
This appliance is designed for domestic use
only. Connection to the main supply must be
made by a competant electrician, ensuring that
all current regulations concerning such
installations are observed. The appliance must
onlybeconnectedtoasuitablyratedspurpoint,
a 3 pin 13 amp plug/socket is not suitable. A
double pole switch must be provided and the
circuitmusthaveappropriatefuseprotection.
ELECTRICALCONNECTION
Note: We do not advocate the use of earth
leakage devices with electric cooking
appliances installed to spur points because of
the «nuisance tripping» which may occur. You
are again reminded that the appliance must be
correctly earthed, the manufacturer declines
any responsibility for any event occurring as a
resultofincorrectedelectricalinstallation.
Check the data on the rating plate, located on
theoutsideoftheunit,toensurethatthesupply
andinputvoltagearesuitable.
Before connection, check the earthing system.
By Law, this appliance must be earthed. If this
regulationis notcompliedwith,the manufacturer
will not be responsible for any damage caused to
persons or property. If a plug is not already
attached, fit a plug appropriate to the load
indicated on the rating plate. The earth wire is
coloured yellow/green. The plug should always
be accessible. Where the Hob is connected
direct to the electricity supply, a circuit breaker
must be fitted. If the power supply cord is
damaged this is to be replaced by a qualified
engineer so as to prevent any potential risk. The
earth wire(green andyellowcoloured)must beat
least 10 mm longer than the live and neutral
wires. The section of the cable used must be of
thecorrectsize inrelation to theabsorbedpower
of the hob. Please check rating plate for the
power details and ensure that the power supply
cordis ofthetype3x0.75 mm²H05V2V2-F
These instructions are for qualified personnel,
installation of equipment must be in line with
the relevant nationalstandard. (For U.K. only: by
lawthe gasinstallation\commissioningmustbe
carriedoutbya“GasSafe”installer).
GASCONNECTION
Ifan applianceisnot fittedwitha supplycordand
a plug, or with other means for disconnection
from the supply mains having a contact
separation in all poles that provide full
disconnection under overvoltage category III
conditions, the instructions shall state that
means for disconnection must be incorporated
in the fixed wiring in accordance with the wiring
rules.
All work must be carried out with the electricity
supply disconnected. The rating plate on the
hob shows the type of gas with which it is
designed to be used. Connection to the mains
gas supply or gas cylinder should be carried out
after having checked that it is regulated for the
type of gas with which it will be supplied. If it is
not correctly regulated see the instructions in
thefollowingparagraphstochangegassetting.
For liquid gas (cylinder gas) use pressure
regulators which comply with the relevant
national standards. Use only pipes,washers and
sealing washers whichcomply withthe relevant
nationalstandards.

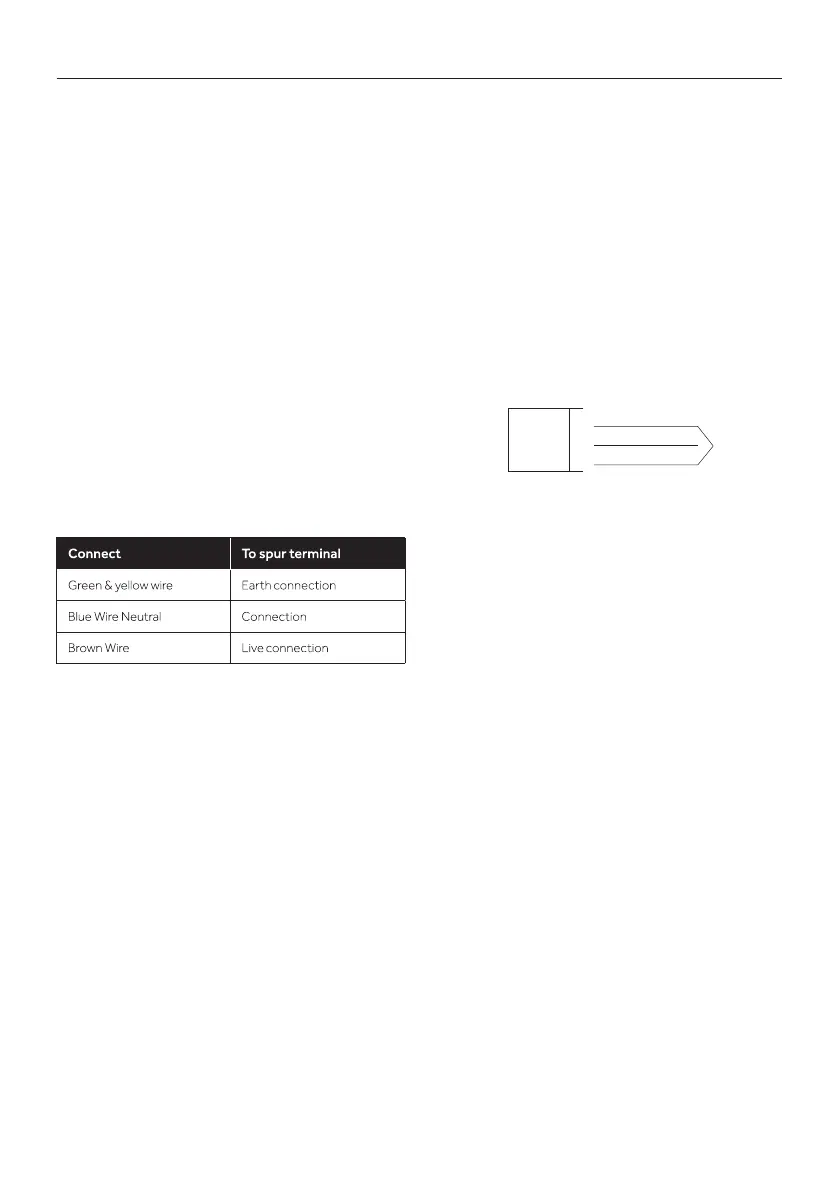

LIVE
EARTH
NEUTRAL
L
N
Power Cable
Mains Supply
Brown Wire
Green/Yellow Wire
Blue Wire
EN 8
