Haier HB21FSSAA User Manual

Disassembly and Assembly of Door
8
Caution
Before disassembling and assembling the doors, please remove food on the
bottle seat, and remove the bottle seat, and then cut the power, shutdown the
water source to avoid personal injury, product or property loss. When install and
dismantle the doors, please contact the servicer centre of Haier.
Prevent children or pets from asphyxia due to trap in the refrigerator. Do not let
them play in the drawer.

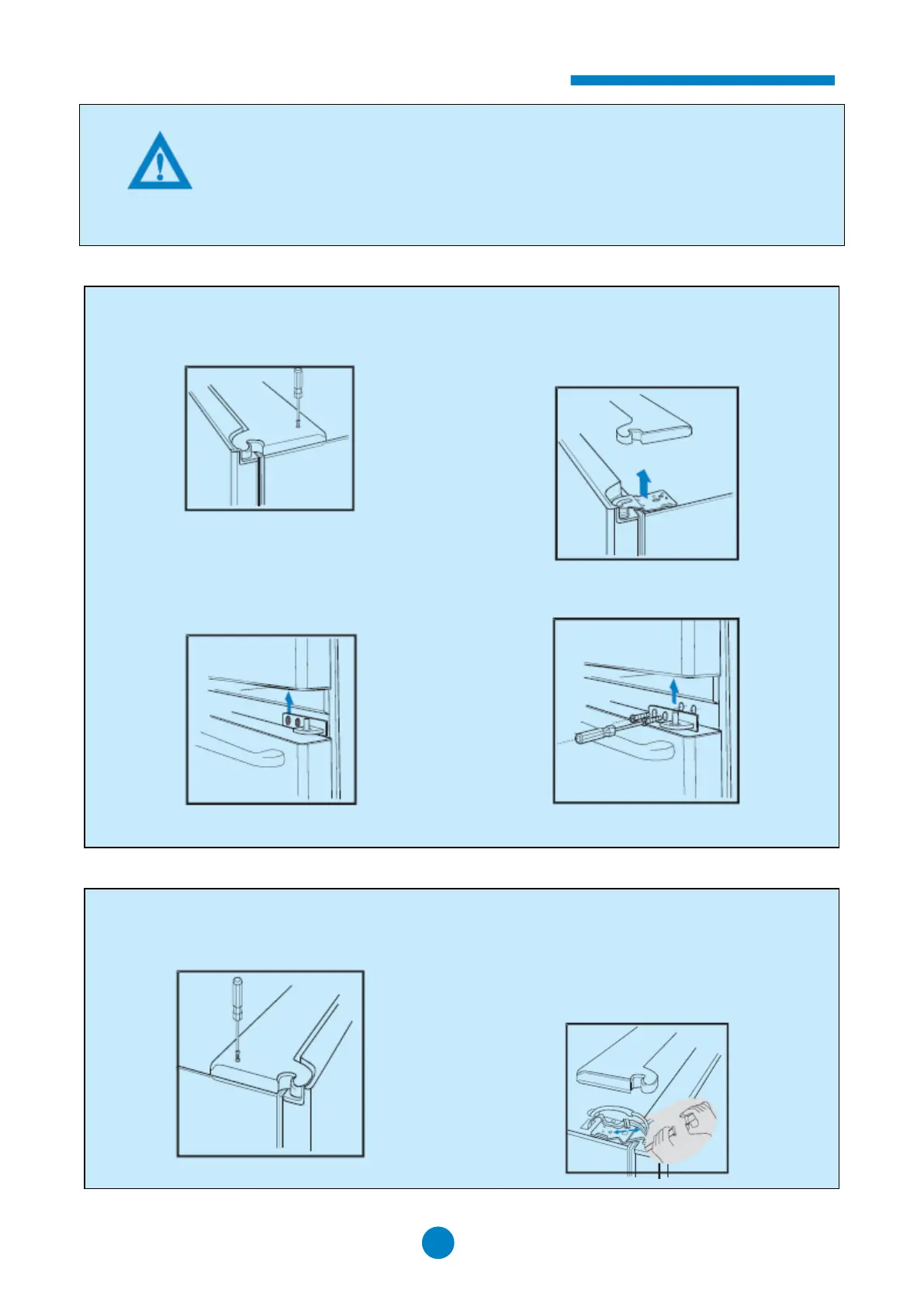

Refr. Right Door Disassembly and Assembly
① Remove the screw which fixes the upper hinge
cover with screwdriver, and then remove the
upper hinge cover.
② Remove the screw which fixes the upper right
hinge with hex driver, and move forward the
upper right hinge and the door, and then
remove right upper hinge.
③ Raise the right door and remove to proper
location.
⑤ The door can be installed by reverse steps.
④ Middle hinge may be removed if necessary.
Refr. Left Door Disassembly and Assembly
① Remove the screw which fixes the upper hinge
cover with screwdriver, and then remove the
upper hinge cover.
② Disconnect the wire terminal, and separate the
connectors on the upper right corner at the
back. Remove humidity sensor, and then
remove the screw with hex driver. Move
forward the hinge, water pipe, and door, and
then remove the upper left hinge.
