Haier HB26FSSAAA User Manual

25
GB
GB
Disassembling and
cleaning the small
freezer drawer

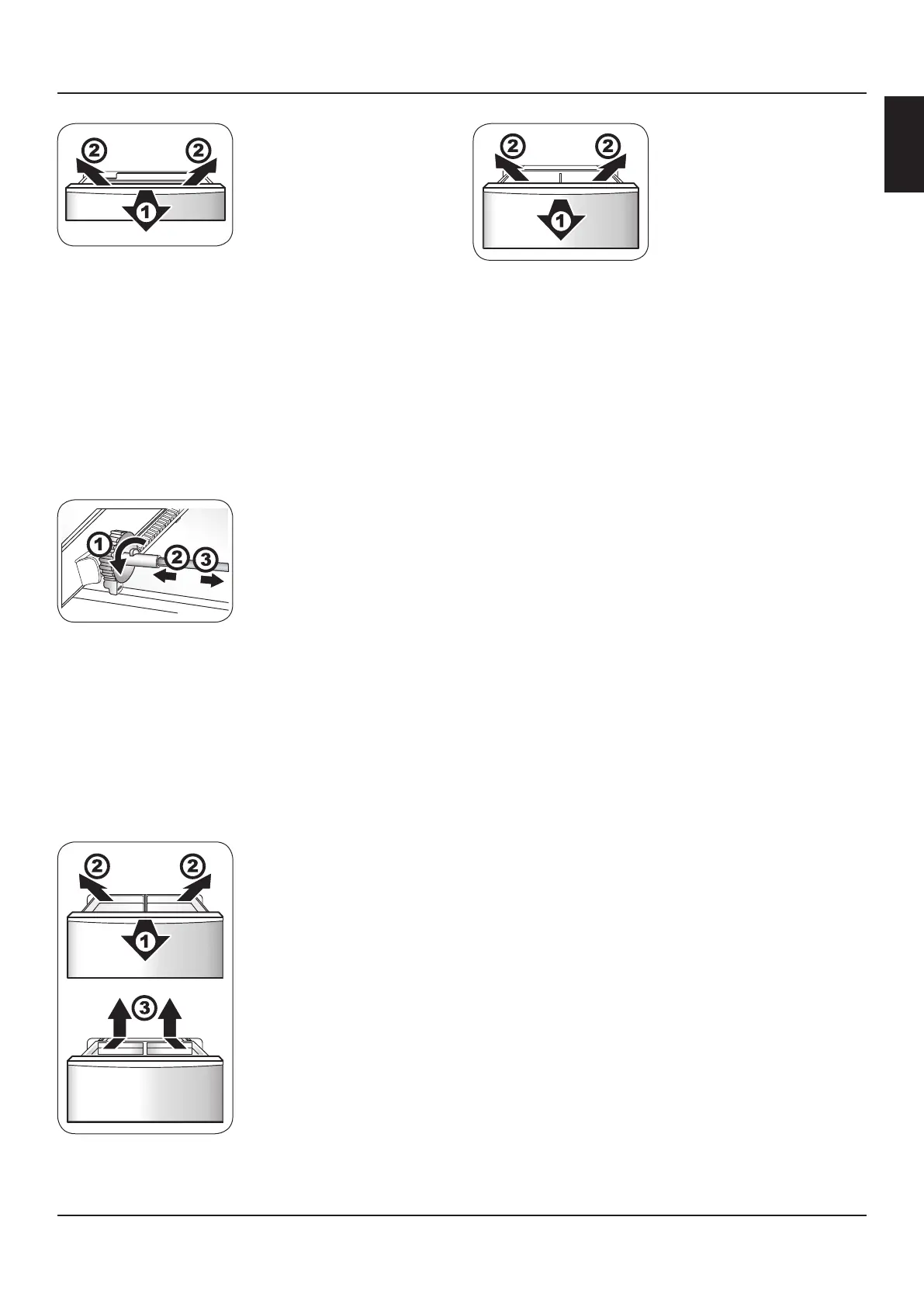

1. Pull out the small freezer
drawer as far as possible,
and take out the ice cube
tray and dumpling tray that
are connected to the small
freezer drawer.
2. Tilt the small freezer drawer
upwards then pull it out.
3.
Reverse the above
procedures to put the small
freezer drawer back in.
Wipe the small freezer drawer
with a soft towel or sponge
dipped in warm water (neutral
detergent can be added), and
after cleaning it, put it back it.
Disassembling the
gear connecting rod
1. After removing the small
freezer drawer, push the
gear connecting rod to the
very front. Push aside the
protruding clip fastener that
is on the left end of the gear
connecting rod.
2.
Move the metal rod to the
left, then disengage the gear
connection from the right end
of the rod.
3. Pull out the metal rod from
the left gear connecting part.
4.
Reverse the above
procedures to install the gear
connecting rod.
Disassembling and
cleaning the pull-out
tray
1. Pull out the large freezer
drawer as far as possible.
2. Tilt the pull-out tray upward
to take it out.
3. After moving the pull-out
drawer, disengage the clip
position, and take out the
tray.
Wipe the pull-out drawer and
the pull-out tray with a soft
towel or sponge dipped in warm
water (neutral detergent can be
added), and after cleaning them,
put them back in.
Disassembling the door unit
For the disassembly of the door unit, please contact a Haier
salesperson if necessary.
Illumination lamps in the refrigerator and
their replacements
Illumination lamp parameters: DC 12 V, 2 W × 2, 18 W × 1
The illumination lamp is an LED lamp, the corresponding lamp
consumes less power and has a long lifespan.
In case of failure, do not disassemble by yourself. Please
contact after-sales staff to replace.
The illumination lamp in the freezer
compartment and its replacement
Illumination lamp parameters: DC 12 V, 1 W × 4
The illumination lamp is an LED lamp, the corresponding lamp
consumes less power and has a long lifespan.
In case of failure, do not disassemble by yourself. Please
contact after-sales staff to replace.
The illumination lamp in MY ZONE and its
replacement
Illumination lamp parameters: DC 12 V, 1 W × 2
The illuminating lamp is of an LED lamp, the corresponding
lamp consumes less power and has a long lifespan.
In case of failure, do not disassemble by yourself. Please
contact after-sales staff to replace.
Disassembling and
cleaning the large
freezer drawer
1. Pull out the large freezer
drawer as far as possible,
and take out the pull-out
drawer of the large freezer
drawer.
2. After moving the pull-out tray,
disengage the clip position,
and take out the tray.
3. Tilt the large freezer drawer
upward to take it out.
4. Reverse the above
procedures to install the large
freezer drawer.
Wipe the large freezer drawer
with a soft towel or sponge
dipped in warm water (neutral
detergent can be added), and
after cleaning it, put it back in.

Haier HB26FSSAAA Specifications

General

Control type	Touch
Display type	LED
Product color	Silver, Titanium
Product design	French door
Built-in display	Yes
Door gasket type	Snap-in gasket
Reversible doors	No
Shelves material	Glass
Shelf finish type	Chrome frame
Appliance placement	Freestanding
Fridge net capacity	484 L
Number of egg balconies	1
Fridge number of shelves/baskets	3
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	14 kg/24h
Freezer net capacity	266 L
Storage time during power failure	20 h
Fresh zone compartment net capacity	30 L
Current	2 A
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Annual energy consumption	386 kWh
Control position	Internal
Noise level	39 dB
Climate class	SN
Cooling system	Dynamic (fan-assisted)
Total net capacity	750 L
Package width	1091 mm
Package height	851 mm
Package weight	204000 g

Weight and Dimensions

Depth	760 mm
Width	1005 mm
Height	1900 mm
Weight	189000 g
