Hex bolt
8 to 13mm
Indoor unit
Now, securely tighten the hex bolts in both sides.
(Fig. 16)
Bolt
Bracket
Indoor unit
5. INSTALL THE DRAIN HOSE
Select whether the drain hose will be connected to the left or right side.(Fig.3)
Insert the drain hose into the drain pan, then secure the drain hose with a nylon fastener.(Fig.6)
Wrap the insulation (drain hose)around the drain hose connection.(Fig.7)
Be sure to arrange the drain hose correctly so that it is leveled lower than the drain hose connecting port of the

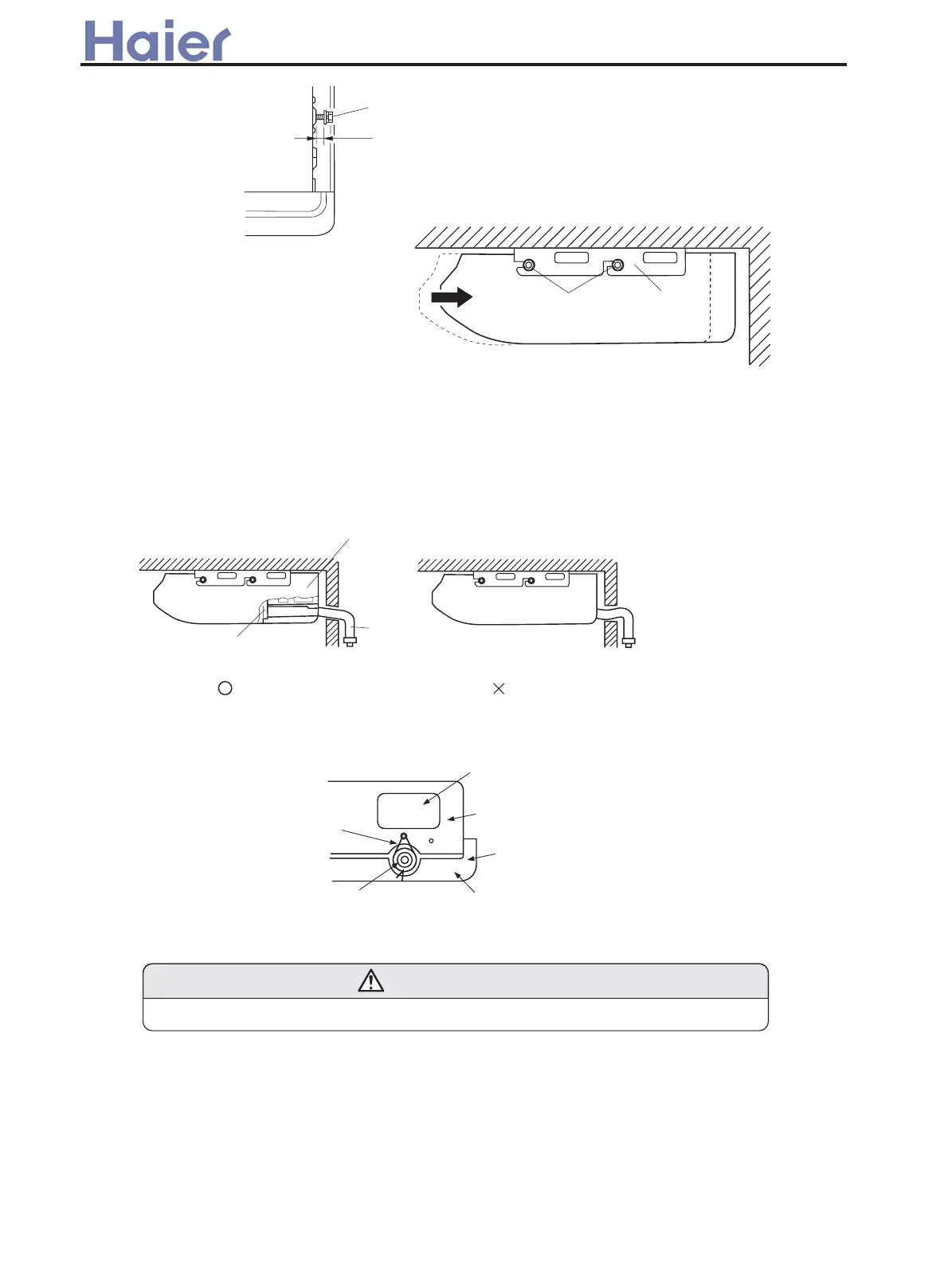

(Fig. 18)
Piping hole
Base (Bottom)
Intake grill
VT wire hole
Pass the drain hose through here
Cut the grill
(Fig. 17)
OK
Remove the hole cover.
Arrange the drain hose
lower than this portion
Drain hose
NO
GAS LEAKAGE INSPECTION
After connecting the piping, check the joints for gas leakage with leakage detector.
CAUTION
HOW TO CONNECT WIRING TO THE TERMINALS
(1) Cut the wire with a wire cutter or wire-cutting pliers, then strip the insulation to about 25mm of the exposed solid
wire.
(2) Using a screwdriver, remove the terminal screw(s) on the terminal board.
(3) Using pliers, bend the solid wire to form a loop suitable for the terminal screw.
(4) Shape the loop wire properly, place it on the terminal board and tighten securely with the terminal screw using
a screw driver.
Apply the indoor unit to the brackets.
(Fig. 17)
(Fig. 18)
indoor unit.
(Fig. 19)
When drain hose is arranged backward. Secure the drain hose with the VT wire.
(Fig. 19)
A. For solid core wiring (or F-cable)
(Fig. 20A)
Installation
To Next Page
