Insulation tube
Cord clamp
Use VW-1, 0.5 to 1.0 mm thick, PVC tube as the insulation tube.
CAUTION
(1) Match the terminal block numbers and connection cord colors with those of the
outdoor unit. Erroneous wiring may cause burning of the electric parts.
(2) Connect the connection cords firmly to the terminal block. Imperfect installation
may cause a fire.
(3) Always fasten the outside covering of the connection cord with the cord clamp.
(If the insulator is chafed, electric leakage may occur.)
(4) Always connect the ground wire.
ELECTRICAL REQUIREMENT
Electric wire size and fuse capacity:
After passing the connection cord and power cable through the insulation tube, fasten it with the cord
clamp, as shown in Fig.16

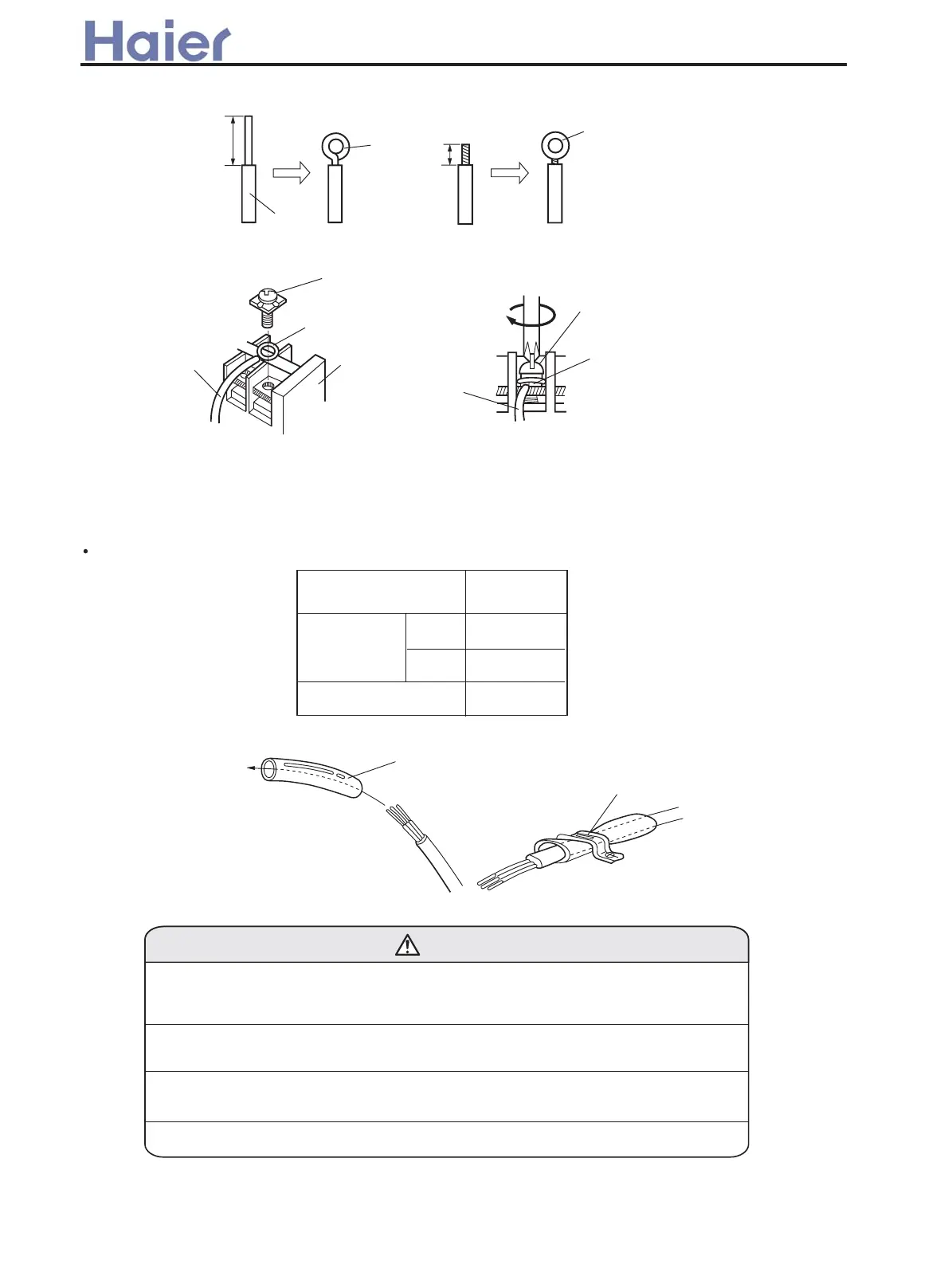

HOW TO FIX CONNECTION CORD AND POWER CABLE AT THE CORD CLAMP
Screw with
special washer
Round
terminal
Wire
Terminal
block
Screw with
special washer
Round
terminal
Wire
A. Solid wire
B. Strand wire
Round terminal
Loop
Insulation
Strip 15/16"(25mm)
Strip 15/16"(25mm)
Fig. 15
Fig. 16
NYe]Yf
@baaYWg]ba
WbeX
-``
5
.
ChfY WUcUW]gl->.
I>S
IFJ
E@CP075@C36
E@CP075EC36
618
513
63
Installation
