Haier HDV70E1 User Manual

INSTALLATION INSTRUCTIONS
Stacking installation
Your dryer has been designed to be able to be stacked on the top of a Haier front load
washing machine, ensure the washing machine is the same width as your dryer.
Tools and parts required:
■ Drill and 2.9mm bit
■ Phillips head screwdriver

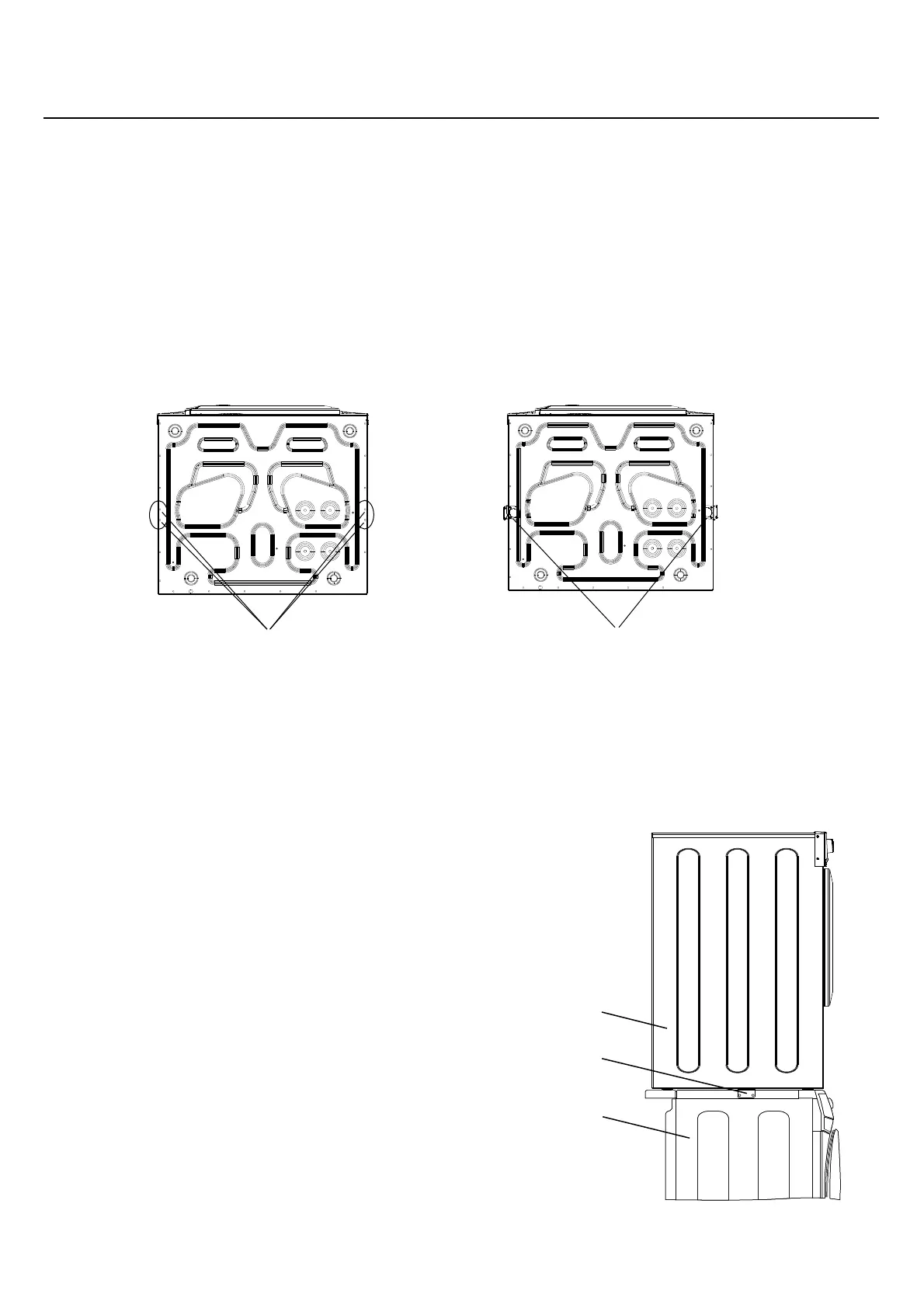

1 Remove 4 screws at two sides of bottom panel, then install the stacking bracket.
4 Screws
Stacking bracket
2 Install your dryer with stacking bracket on the top of the front load washing machine.
Drill two holes on both sides of top panel of washing machine with 2.9mm diameter
drill. Detailed drill position as shown on the stacking bracket. Only use the screws
supplied in the stacking bracket. Fix the stacking bracket on the top panel of washing
machine.
■ The models of Haier front load washing machine that
can be stacked installation are followed:
HW70-BP12636S
HW80-BP12636S
HW90-BP12636S
HWD-C180
HW70-BP10829
HW80-BP10829
HW80-BD12756
HWD100-BD14756
HW100-BD14756
HW80-B12876
HW100-B14876
HW120-BD14876
Dryer
Stacking bracket
Front load washing
machine
9
Stacking bracket includes:
■ 2 x Stacking bracket
HW85-BP12826
HW100-BP12826
