18

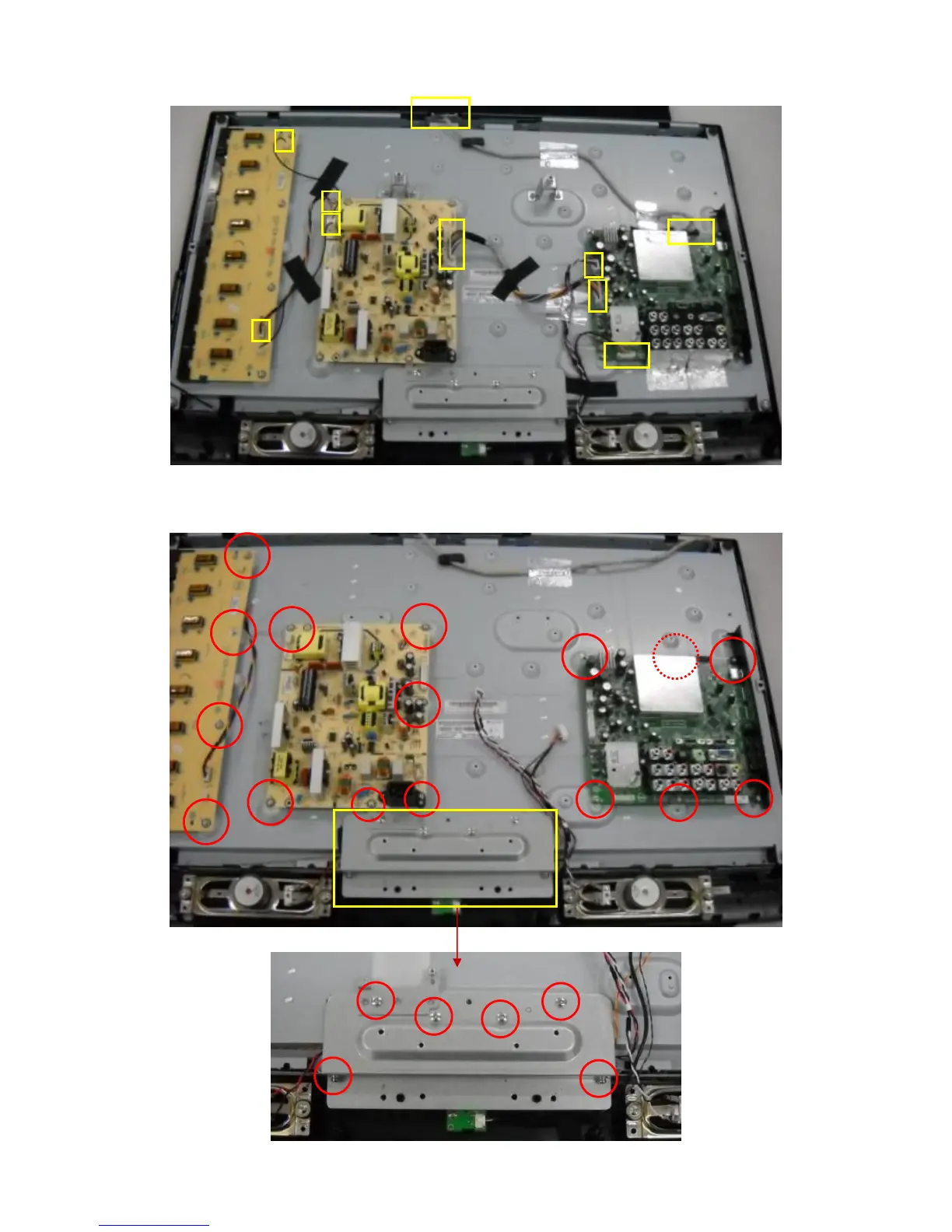

3. Remove all the detachable HARNESS or CABLE.
Disconnect the harness and cable as Fig 3.
Fig 3
4. Remove the MAIN, POWER, INVERTER BOARD and BASE-SUPPORT.
Unscrew the 22 screws as Fig 4.
Fig 4
