4. Mechanical Instructions
Note: Below are only the critical steps of disassembing the HL32D2 and HL42XD2 TV, and may be there is a little
difference for the following pictures with the actual TV, only for your reference.

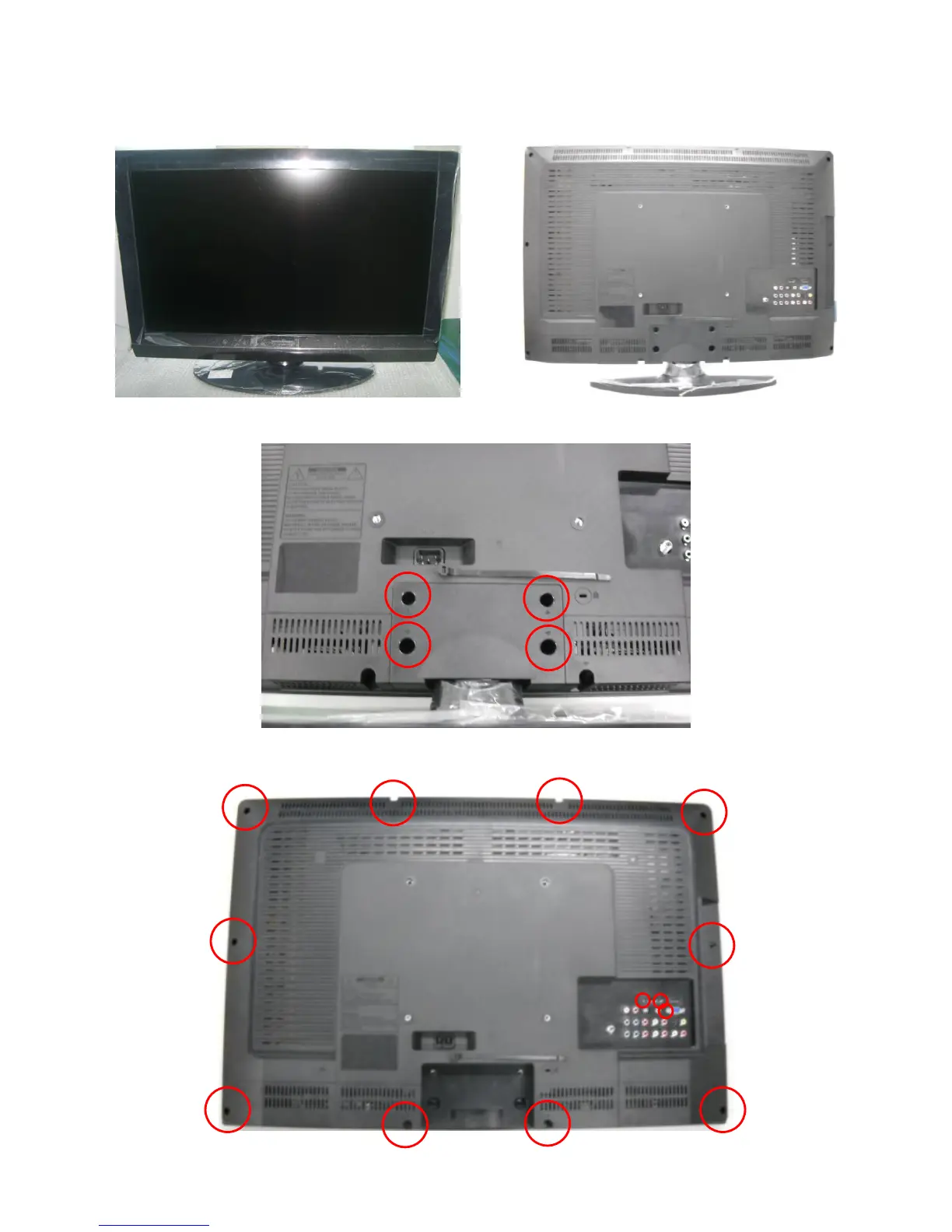

HL32D2 Front and Rear View
1. Remove the BASE ASS’Y
Unscrew the 4 screws as Fig 1.
Fig 1
2. Remove the REAR COVER ASS’Y
Unscrew the 13 screws as Fig 2.
Fig 2
To Next Page
