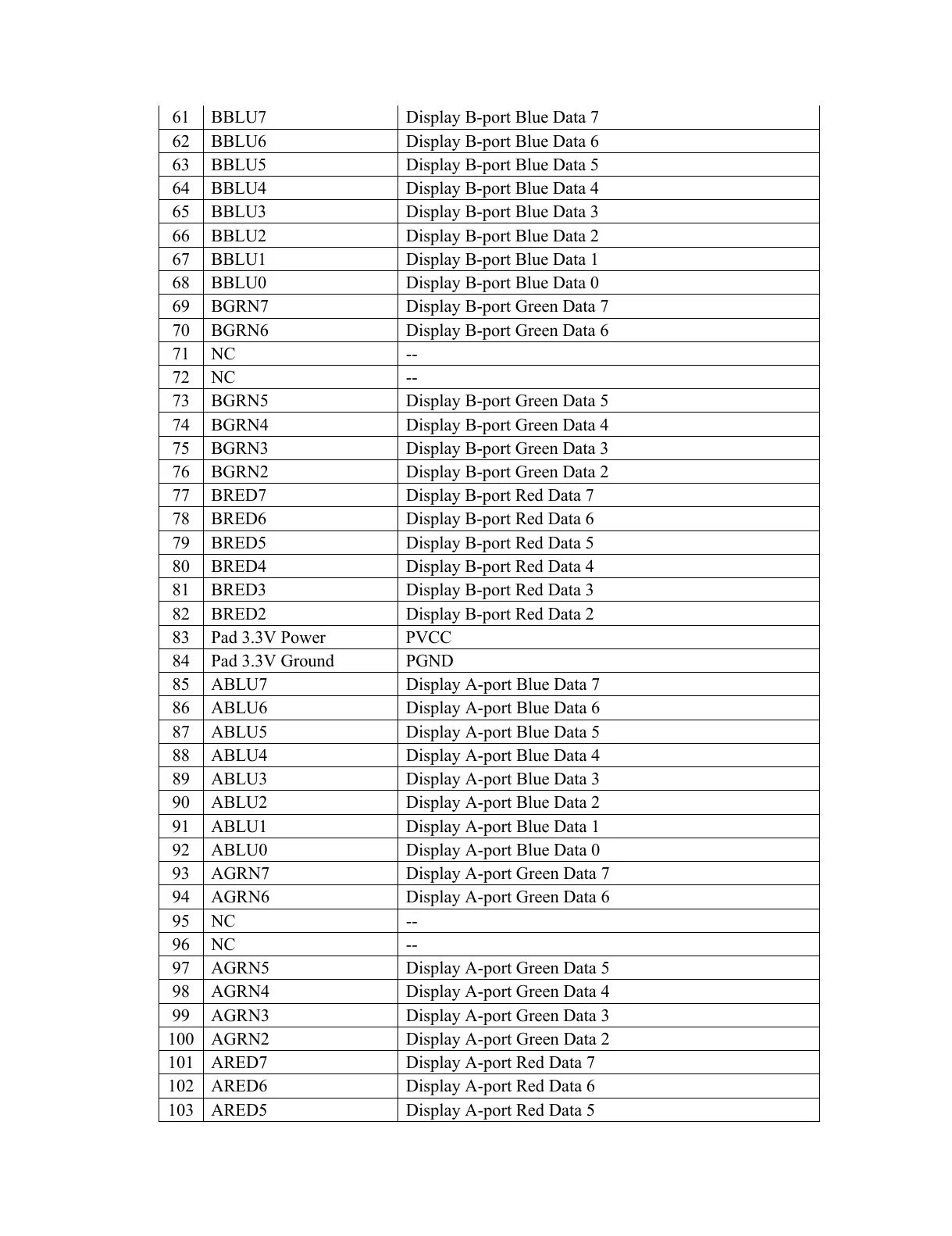

61 BBLU7 Display B-port Blue Data 7
62 BBLU6 Display B-port Blue Data 6
63 BBLU5 Display B-port Blue Data 5
64 BBLU4 Display B-port Blue Data 4
65 BBLU3 Display B-port Blue Data 3
66 BBLU2 Display B-port Blue Data 2
67 BBLU1 Display B-port Blue Data 1
68 BBLU0 Display B-port Blue Data 0
69 BGRN7 Display B-port Green Data 7
70 BGRN6 Display B-port Green Data 6
71 NC --
72 NC --
73 BGRN5 Display B-port Green Data 5
74 BGRN4 Display B-port Green Data 4
75 BGRN3 Display B-port Green Data 3
76 BGRN2 Display B-port Green Data 2
77 BRED7 Display B-port Red Data 7
78 BRED6 Display B-port Red Data 6
79 BRED5 Display B-port Red Data 5
80 BRED4 Display B-port Red Data 4
81 BRED3 Display B-port Red Data 3
82 BRED2 Display B-port Red Data 2
83 Pad 3.3V Power PVCC
84 Pad 3.3V Ground PGND
85 ABLU7 Display A-port Blue Data 7
86 ABLU6 Display A-port Blue Data 6
87 ABLU5 Display A-port Blue Data 5
88 ABLU4 Display A-port Blue Data 4
89 ABLU3 Display A-port Blue Data 3
90 ABLU2 Display A-port Blue Data 2
91 ABLU1 Display A-port Blue Data 1
92 ABLU0 Display A-port Blue Data 0
93 AGRN7 Display A-port Green Data 7
94 AGRN6 Display A-port Green Data 6
95 NC --
96 NC --
97 AGRN5 Display A-port Green Data 5
98 AGRN4 Display A-port Green Data 4
99 AGRN3 Display A-port Green Data 3
100 AGRN2 Display A-port Green Data 2
101 ARED7 Display A-port Red Data 7
102 ARED6 Display A-port Red Data 6
103 ARED5 Display A-port Red Data 5
