Haier HLP141E User Manual

9
English
INSTALLATION INSTRUCTIONS

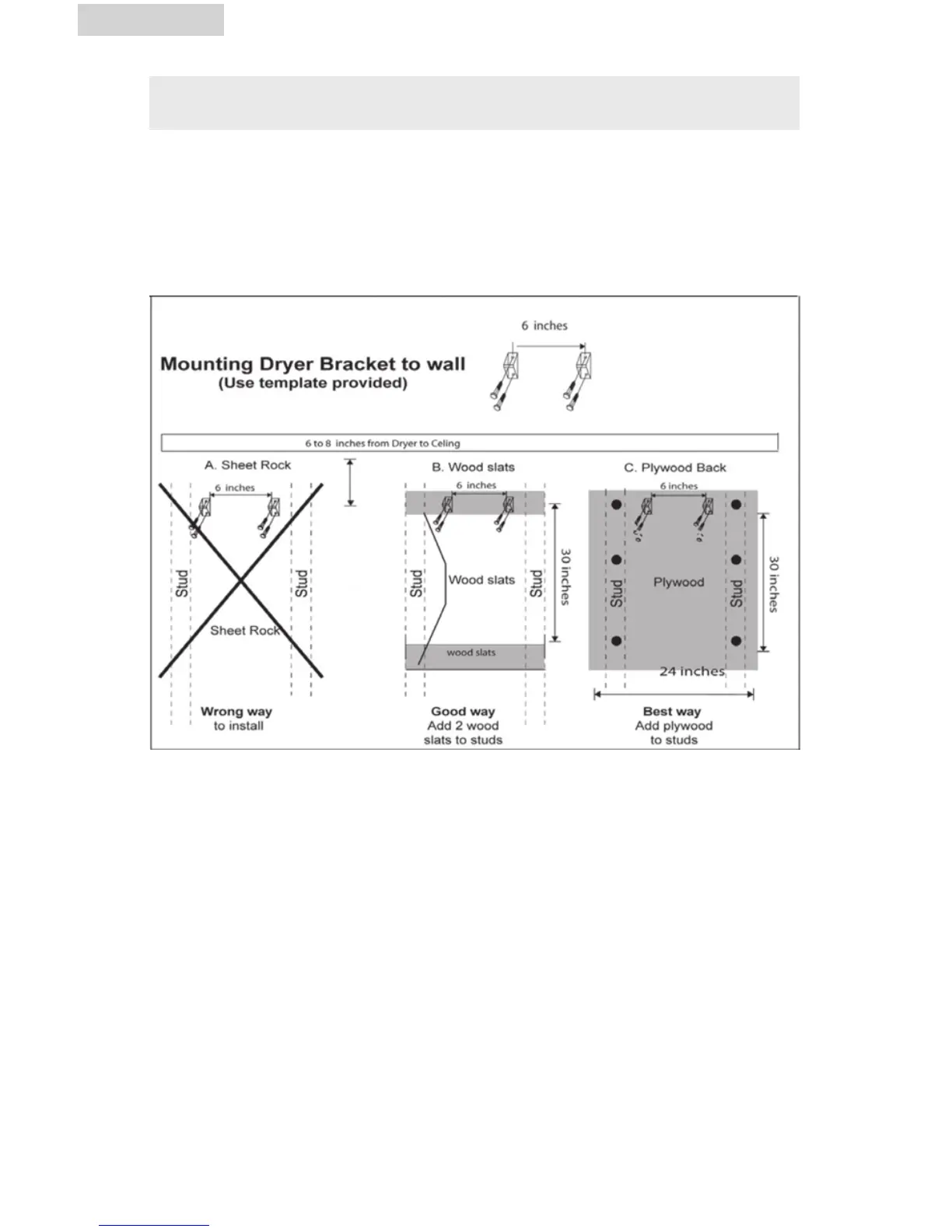

Location for installation and options for various walls
1. There are 2 mounting options- either using wood slats or a whole plywood
board. The dryer installation to the wall should be able to accommodate the
weight of the unit of 52 lbs. plus about 10 lbs. for clothing (or approximately
62 lbs). We suggest you use a plywood board for added support and safety,
this is the best way to mount.
2. Determine dryer position on the wall. A minimum of 6”(Inches) is needed
between the top of the dryer and the ceiling for installation.
3. If mounting the dryer above a washing machine, allow sufficient space to
open the top lid of the washer.
4. The Best installation is to add a plywood board to the wall studs. As a
second option- you can use two (2) slats (2 by 4 “) and attach to studs.

Haier HLP141E Specifications

General

Door hinge	Left
Control type	Buttons
Loading type	Front-load
Drying system	Vented
Product color	White
Built-in display	No
Appliance placement	Freestanding
Heat source	Electric
AC input voltage	120 V
AC input frequency	60 Hz
Energy consumption	- kWh
Energy efficiency class	-
Cycle time	150 min
Noise level	- dB
Drum capacity	- kg
Number of drying programs	4

Weight and Dimensions

Depth	631 mm
Width	425 mm
Height	685 mm
Weight	25990 g
