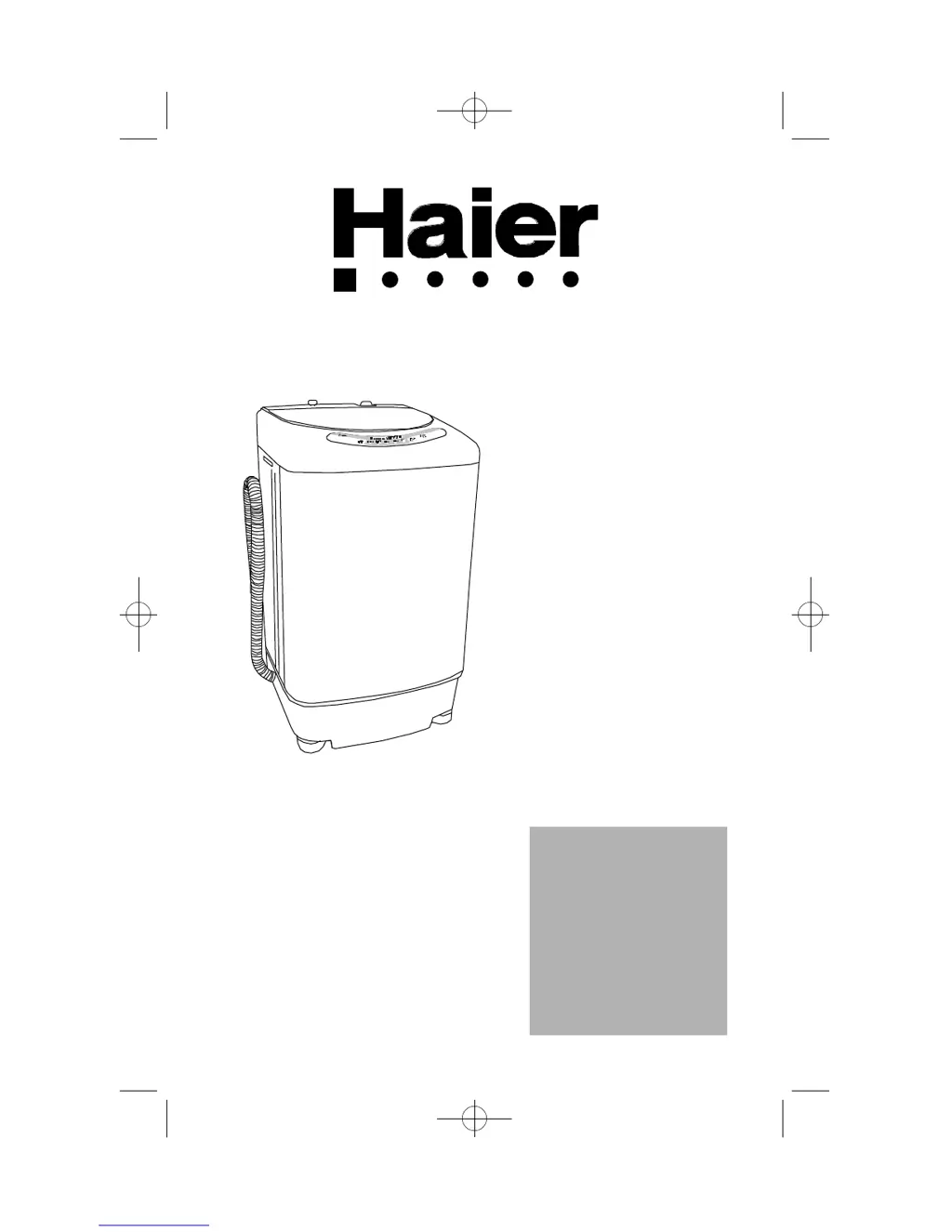

Page #1 background image
®
What The World Comes Home To
TM
Portable
Electronic Washer
User Manual-
Model #
HLP21E
Lave-Linge
Électronique Mobile
Lavarropas
Eléctrico portátil
Guide de l'Utilisateur-
Modèle #
Manual del Usuario-
Modelo #
HLP21E MANUAL 6/20/03 10:03 AM Page 2

Questions and Answers:

Haier HLP21E Specifications

General IconGeneral
TypePortable Washer
Loading TypeTop Load
Capacity1.0 cu. ft.
ColorWhite
Water Levels3
Water Level OptionsLow, Medium, High
Power SupplyElectric
Voltage120V
Control TypeElectronic
Energy Star CertifiedNo
Wash ProgramsHeavy, Normal, Quick

Summary

Important Safety Instructions

General Safety Precautions

Read instructions, use for intended purpose, proper installation, and handling.

Electrical Safety

Proper plug use, cord care, unplugging for maintenance, and correct electrical supply.

Flammable and Explosive Substances

Avoid operation in explosive fumes or washing flammable materials.

Important Safety Instructions

Grounding and Electrical Safety

Ensure proper grounding; do not cut or remove grounding plug.

Hydrogen Gas Hazard

Vent hydrogen gas from water heater before use to prevent explosion risk.

Servicing and Repairs

Only authorized technicians should perform repairs unless instructions are understood.

Child Entrapment Danger

Remove door from old appliances to prevent child entrapment.

Operating Instructions

Parts and Features Overview

Identifies key components of the washer, including lid, control panel, cabinet, and legs.

Control Panel Overview

Details the functions of Power, Start/Pause, Program Select, and Water Level controls.

Loading the Washer

Guidance on loading clothes loosely, separating colors, and checking pockets.

Detergent and Bleach Usage

Instructions on using detergent and bleach, including warnings and dilution.

Lint and Water Filter Maintenance

Guide to cleaning the lint filter after each load and the water inlet filter monthly.

Selecting the Wash Cycle

Explains how to choose wash programs, cycle times, and applications.

Recommended Water Levels

Details water levels (Low, Medium, High) and corresponding water usage in gallons.

End-of-Cycle Signal and Lid Closure

Describes the end-of-cycle beep and safety requirement to keep the lid closed.

Steps for the Wash Process

Provides a step-by-step guide to starting and operating the washing cycle.

Normal Operating Sounds

Unpacking and Accessories

Unpacking Instructions

Steps for removing packing materials and inspecting the appliance.

Included Accessories

Lists and identifies all parts included with the washer, such as hoses and filters.

Proper Location

General Placement Guidelines

Select a suitable location away from heat sources on a hard, even surface.

Storage in Cold Environments

Appliance must be stored and operated at room temperature, avoiding freezing.

Installation Instructions

Tools and Materials Required

Lists necessary tools like screwdrivers, pliers, wrench, tape measure, and level.

Installing the Bottom Panel

Steps for attaching the bottom panel to reduce noise during operation.

Installing the Lint Filter

Instructions for installing the lint filter before using the washer.

Leveling the Washer

How to adjust the leveling leg to ensure the washer is stable and operates correctly.

Connecting Water and Drain Hoses

Steps for connecting water inlet and drain hoses, including height requirements.

Electrical Connections

Plugging the washer into a 115 Volt / 60 Hz, 15 Amps outlet.

Installing Quick Sink Adapter

Guide to attaching the adapter to the faucet for water connection.

Unit Dimensions

Electrical Connections

Grounding Instructions

Importance of grounding for safety and how to ensure the appliance is properly grounded.

Wiring Requirements

Specifies the required voltage, amperage, and outlet type for the appliance.

Extension Cords and Power Interruptions

Discourages extension cord use and advises on handling power outages.

Proper Care and Cleaning

General Cleaning and Maintenance

Guidelines for cleaning the control panel, cabinet, and filters to prevent damage.

Long Absences and Moving

Steps for preparing the washer for storage or relocation, including disconnecting hoses.

Troubleshooting Guide

Washer Does Not Operate

Solutions for common issues where the washer fails to start or function.

Water Related Problems

Addresses issues like insufficient water, leaks, and drainage problems.

Addressing Washer Noises

Troubleshooting common noises like tumbling, squeaking, and vibration.

Clothing Related Problems

Solutions for issues like wrinkled clothes, soap residue, or ripped garments.

Limited Warranty

Warranty Coverage Details

Explains the one-year in-home service and limited parts warranty coverage.

Warranty Exclusions and Service

Lists items not covered and how to obtain warranty service.

Customer Service and Warranty Information
