Haier HP200M2 User Manual

8

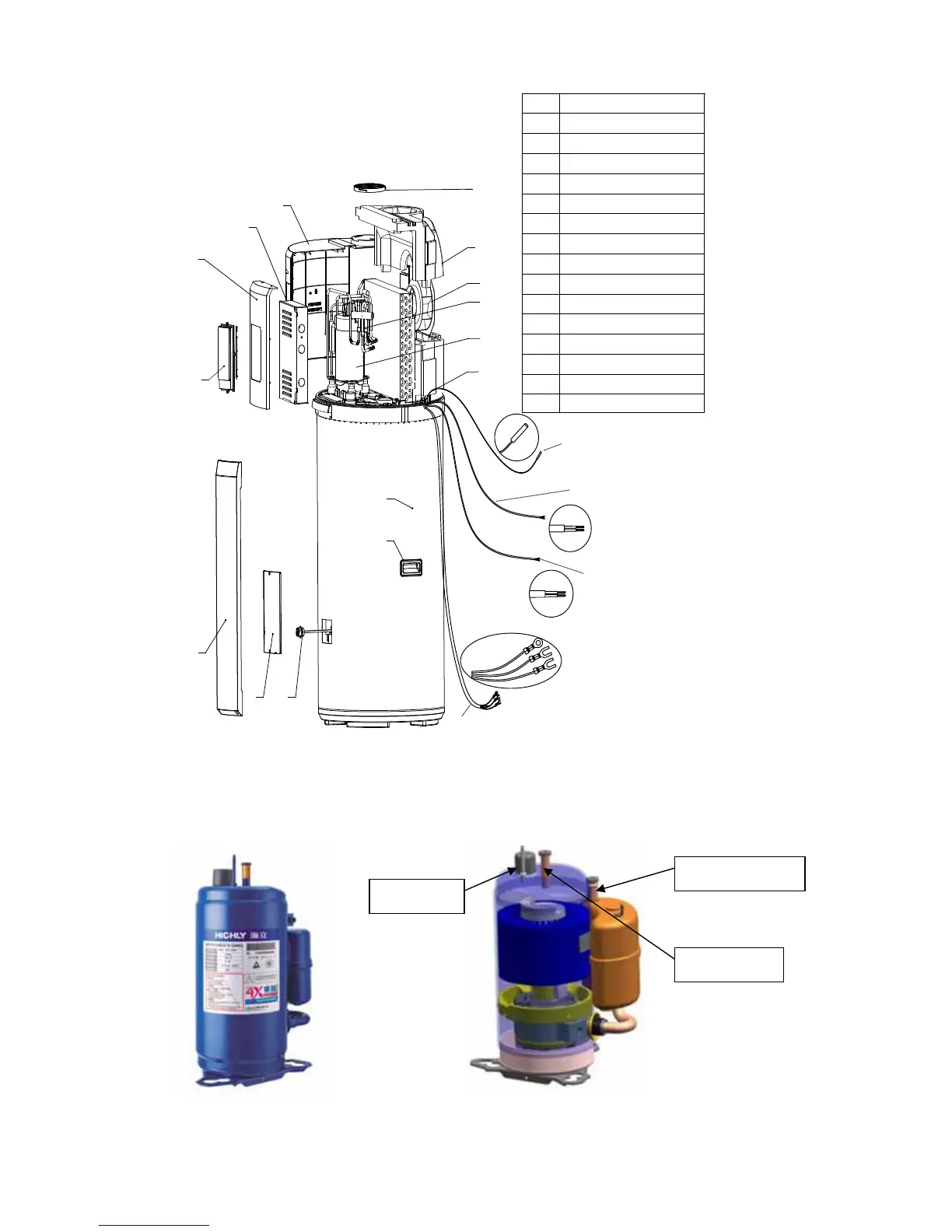

Exploded view
Heat pump system components
1. Compressor
The compressor is to effect a low-temperature low-pressure evaporator refrigerant vapor sucked
and compressed into high temperature and pressure of the superheated vapor, and then discharged
to the condenser heat exchanger.
Inspiratory pipe
Exhaust pipe
Wiring box
5
6
7
9
10
13
12
11
12
3
4
1
4
15
8
Boiler signal wire
(HP250CM2 only)
(2*0.75mm2,White wire)
Power cable (3*1.5mm2)
Off-peak power
signal wire
(2*0.75mm2 ,Black wire)
Solar or boiler sensor
(HP250CM2 only)
(From heat pump)
1 Electric heater
2 Electric cover
3 Front cover - down
4 Display panel
5 Front cover - up
6 Control box
7
Compressor
8 Air grille
9 Air channel - up
Air channel - down
10 Fan
11 Four-way valve
12
Top cover
Tank case
13
14
15 Handle
S/N Description
