INSTALLATION INSTRUCTIONS
WARNING
Excessive Weight Hazard
Use two or more people to move and install air
conditioner.
Ïäìïøõè÷òçòöòæäñõèöøï÷ìñåäæîòõò÷ëèõìñíøõü
A
A
B
ENGLISH
STEP 1 - UNPACK AIR
CONDITIONER
• Remove packaging materials. Save the carton and the foam
packaging for storing the air conditioner when not in use.
NOTE: There are NO packing materials inside the
air conditioner to remove—Do Not open the cabinet.
• Properly dispose of/recycle all packing material.
• Handle the air conditioner gently.
• Keep the air conditioner upright and level. Do not set the air
conditioner on its side, front, back or upside down.

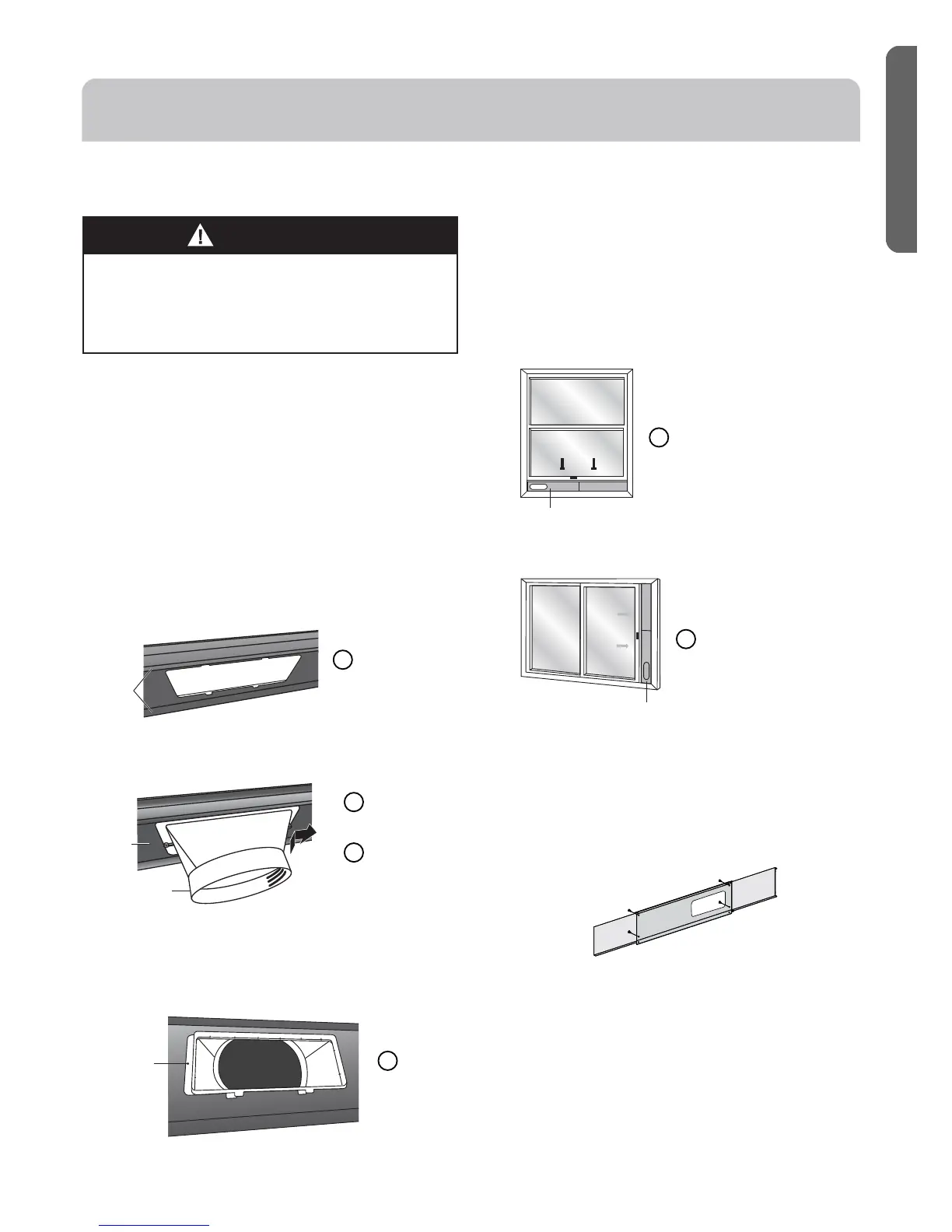

STEP 2 - INSTALL EXHAUST
NOZZLE TO MAIN WINDOW PANEL
1. Hold the main window panel so that the L-shaped edges
of the panel are facing you.
A L-Shaped
Edges
2. Align the exhaust nozzle with the slots in the opening, and
then insert and slide the nozzle to access the hole from the
back of the main window panel.
A Main
Window
Panel
B Exhaust
Nozzle (1 or
2 depending
on model)
3. Turn the main window panel over, so that the nozzle is away
éõòðüòøÒñöèõ÷äĥä÷öæõèú÷ëõòøêë÷ëèëòïè÷òéäö÷èñ÷ëè
window panel to the adapter.
5
NOTE: On a dual hose unit, install the smaller hose
nozzle to the left-hand hole in the panel.
A A Flat
Screw
STEP 3 - INSTALL MAIN WINDOW
PANEL AND EXTENSION PANELS
NOTE: Depending on the size of your window opening, use
the main panel and one or both of the extension panels.
1. Open the window and place the main window panel into
the window.
NOTE: The window assembly is designed to
accommodate either a vertical slide or horizontal slide
window.
Vertical Slide Window
A
A Main Window Panel
Horizontal Slide Window
A Main Window Panel
2.Êçíøö÷÷ëèèû÷èñöìòñóäñèï¤ö¥÷ò÷÷ëèúìç÷ëòõëèìêë÷òé÷ëè
window as shown.
A
NOTE: Some window installations may require the
extension panels to be trimmed.
3. Depending on the number of extension panels used, use
÷úòòõéòøõĥä÷öæõèúö÷òöèæøõè÷ëèðäìñóäñèï÷ò÷ëè
extension panel(s).
To Next Page
